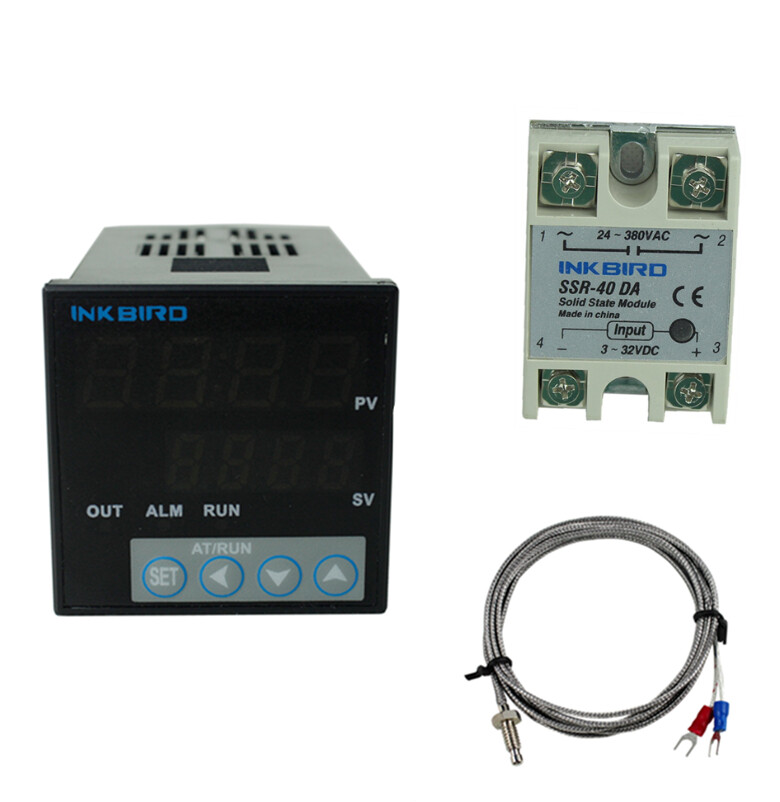

Inkbird ITC-106VH 110-240V PID Temperature Thermostat Controllers K 40DA SSR C/F For Sale

Inkbird 110V!240V PID Temperature Controller Thermostats ITC-106VH With K sensor Probe 40DA SSR
ITC-106RL --- Relay Output + One Relay Alarm Output; AC/DC 12-24V;
ITC-106VL --- SSR Output + One Relay Alarm Output; AC/DC 12-24V;
ITC-106RH --- Relay Output + One Relay Alarm Output; AC 100-240V;
ITC-106VH --- SSR Output + One Relay Alarm Output; AC 100-240V.

Features:
Support reading with Centigrade or Fahrenheit unit
Dual display window, be able to display measured temperature and set temperature at the same time
Simplify operational processes and you don\'t need to operate more steps if you want to set the definite value
High accuracy of displaying and controlling. Manual and Auto turning are available
1 Year Warranty

Specification:
Front Panel Dimension: DIN 48mm(W)X48mm(L) ;Cutout size: 45x45mm
Power Supply Voltage: AC 100-240V 50/60Hz
Main Output： Voltage Pulses Output (ITC-100V): DC 12V, 30mA
Operating voltage range：85～110% Rated voltage
Power Consumption：Approx. 5VA（100～240VAC）
Character: PV: 4 digital 9.9mm height Red LED Letters
SV: 4 digital 8mm height Green LED Letters
Display Accuracy: ±0.2%FS of Sampling：0.5S
Temperature Compensation：0-50ºC
Life expectancy of Relay: Mechanical≥10,000,000 operations Electrical≥10,000,000 operations
Weight: Approx. 140g
Environmental Conditions: -10～55ºC（no icy or condensation）, RH 35-85% Humidity
Storage Temperature: -25～65ºC（no icy or condensation）
Data Storage: 10year
Mounting Method: Flush mounting and screw terminals

40DA SSR Specifications:
Load Voltage: 24-380VAC
Load Current: 40A
Input Voltage: DC 3-32V

K-Type Thermocouple Temperature Sensing For Temperature Controller
Temperature rang :0-400°C
Sensor Dia: 4.5mm
Cable Length: 2m(6.6ft)
External Shielding: Insulated Shielding
Internal Insulation:Fiberglass

Pacakge:
1x Inkbird ITC-106VH Controller
1x Mounting bracket
1x 40DA SSR
1x K Sensor
1x Manual
