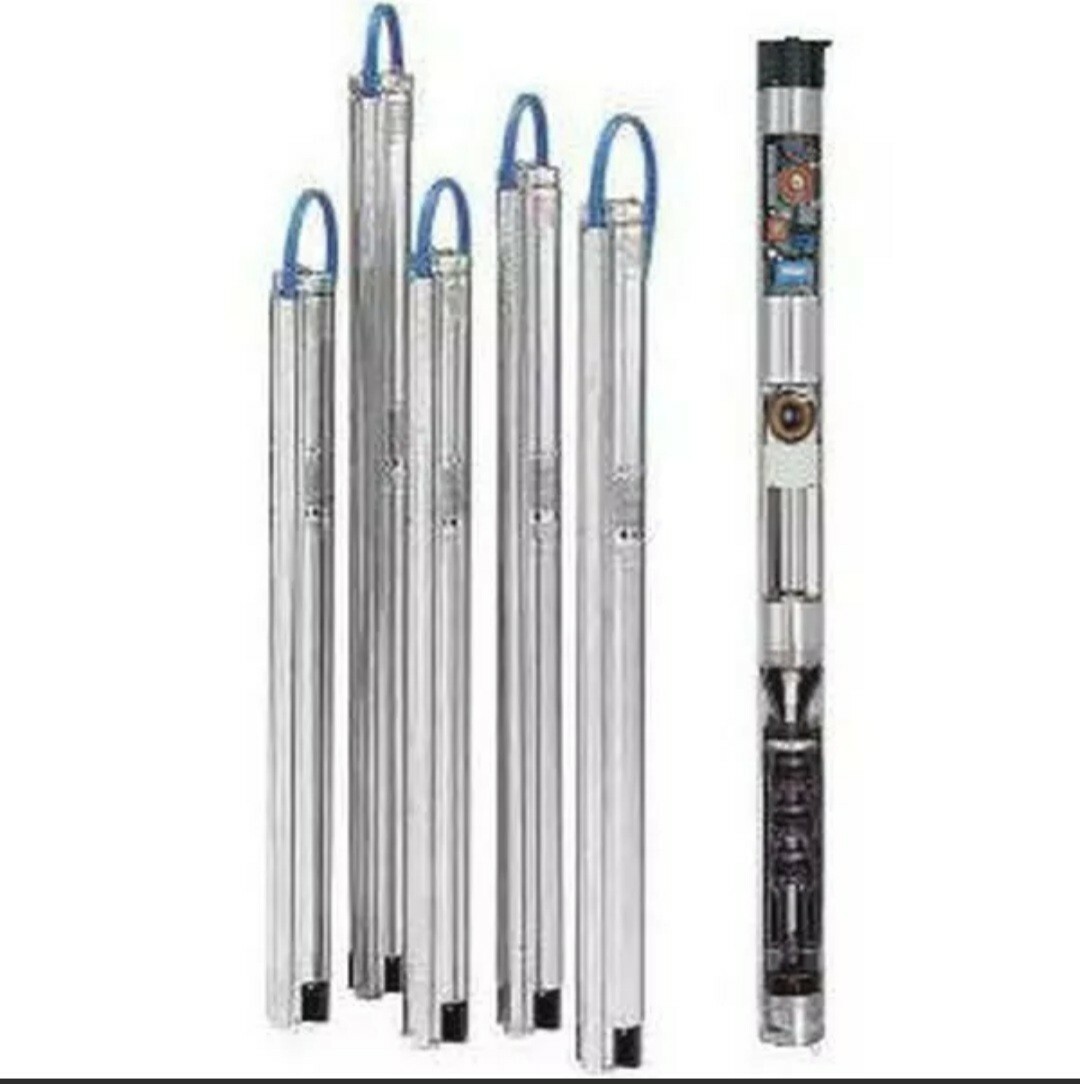

Grundfos 10SQ07-200 - SQ Series 3" Submersible Well Pump (2W - 200-240V)
Soft Start Design ideal for solar applications
Ideal for use with 3" I.D. or larger boreholes
Rated 10 GPM @ 200' Head Lift
Please see documents for sizing / pump curve information
3/4 HP Permanent-Magnet (PM) Stainless Steel Motor (2-Wire - 200-240V) AC
Highly-efficient design with thermal overload protection for added safety
Fitted with a replaceable cable plug for ease of use
Soft Start Design
Allows for a low starting current with a smooth and steady acceleration
Low current draw helps reduce wear & provides ability to use smaller gauge wire
Dry-Running Protection
Helps extend pump life by preventing pump damage due to lack of water in well
Highly-Efficient Stainless Steel Pump
Polyamide reinforced hydraulic pump components for more efficient energy use
"Floating" Impellers w/ Tungsten Carbine/Ceramic Bearings
Allows for high wear resistance to sand which extends pump life
Top-Bearing Upthrust Protection
Provides added protection to motor/pump during start-up
Overvoltage & Undervoltage Protection
Prevents damage to the motor if voltage moves outside rated range
Overload Protection
Reduces Motor RPM or turns off power to motor to prevent damage to motor
Overtemperature Protection
Built-in temperature sensor ensures optimum operating conditions for the motor
