SHARS 10\" 4 Jaw Independent Lathe Chuck with TIR Certification NEW R[ For Sale

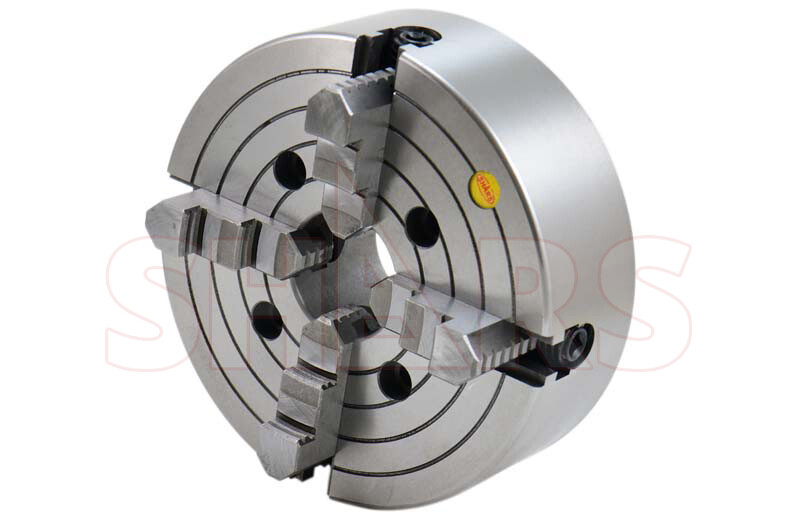

SHARS 10\" 4 Jaw Independent Lathe Chuck with TIR Certification NEWEach high quality chuck comes with acertificationProduct Description

SKU 202-5422 MFG SKU # 202-5422 LATHE CHUCK CATEGORY Independent Lathe Chucks BRAND Shars Tool CHUCK DIAMETER 10 THRU HOLE SIZE 2.559 MOUNTING Plain Back BOLT CIRCLE DIAMETER 4.724 CHUCK THICKNESS 3.228 JAW MOVEMENT Independent NUMBER OF JAWS 4 MAXIMUM RPM 1800 Product Application

For use gripping odd shaped work

Product Features

• A matching back plate (sold separately) would need to be machined on the face and hub OD in order to fit this chuck. For detailed information, please look for the Shars back plate machining guide.
• Accuracy is maintained for the entire clamping range
• Semi-steel chuck body made from high quality cast iron

• Four operating screw design with each ground and hardened to HRC 43
• Both side of jaw teeth and guides are ground and hardened to HRC 58-62

• Four jaws allow a square component to be perfectly centered to the chuck while achieving maximum gripping force
• Each set of jaws are serialized in their own set
• A serialized set of jaws are then finished, ground, and lapped on their designated chuck body which will be the same chuck body on the final assembly to achieve a greater accuracy

• Before assembling the jaw to its designated chuck body, the jaw\'s finish machining are performed on a closed tolerance state of the art CNC machine from Japan

• Operating screw\'s thread flank are ground on both side to achieve a tighter contact with the master jaw
• Each chuck has gone through rigorous accuracy and repeatability inspection with clamping and jamming multiple random testing rods or rings

Clamping Range:

• Internal Jaw:
  • Clamping Range A-A1: 0.590-5.118\"
  • Clamping Range B-B1: 3.149-9.842\"

What\'s Included

• Included 1 set of reversible solid hard jaws
• 4 pcs of M12 mounting screws
• 1 lathe chuck key
• Inspection report on runout on both inside and outside jaws

Related Products

SKU: 202-6540 SKU: 202-6168 SKU: 202-5494 7.87\" D1-5 Fully Machined Lathe Chuck Back Plate for 10\" Indepedent Chuck 7.87\" D1-6 Fully Machined Lathe Chuck Back Plate for 10\" Independent Chuck 10.079\" 2-1/4-8 Threaded Back Plate

SKU: 202-5497 SKU: 202-2032 SKU: 202-6169 10.079\" 2-3/8-6 Threaded Back Plate 7/16\" Self-Ejecting Lathe Chuck Key 8.46\" D1-8 Fully Machined Lathe Chuck Back Plate for 10\" Independent Chuck

When you pick fully machined back, please follow the following instruction.

How to process back plate to guarantee Chuck\'s T.I.R?

The fully-machined chuck back plates can be mounted onto 10\" 4 jaw independent lathe chuck(p/n 202-5422).All back plates have 0.04\" allowance, please measure the size of Chuck\'s D1 before process your back plates. The size of back plates\'s D1 should be a little bit smaller than thesize of Chuck\'s D1.Because the gap between back plate and chuck is smaller, chuck\'s TIR is better. No gap is the best.

You would not need to drill any mounting holes but you will need to turn the shoulder down .040\" to match the back of the lathe chuck to make the chuck & back plate more concentric with the lathe spindle. When turning the shoulder of the backing plate, ONLY TURN THE SHOULDER OF THE BACKING PLATE WHEN ATTACHED TO THE LATHE SPINDLE. If you use a chuck to clamp the backing plate and then turn it, the backing plate will not be true to the lathe spindle and will have more runout than specified when the chuck and back plate are put together.
