Ridgid 14\" Bandsaw Lower*/Upper Guide Support Fork B-56, 60 823745 823779 For Sale

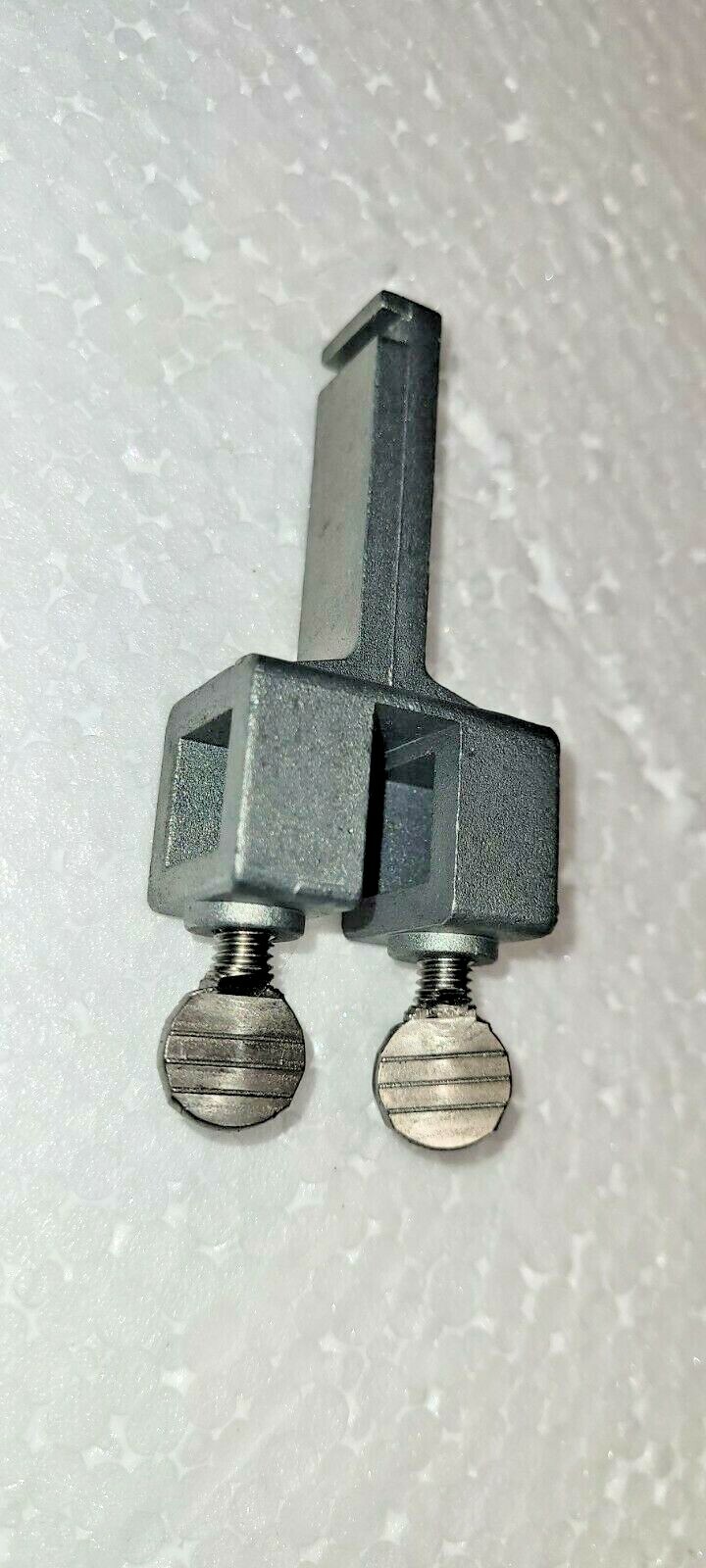

Ridgid 14000, 14001, 14002 14\" Bandsaw Upper Support Bracket B-56 Part # 823745Item may come with thumb screws as shown in photo or screws.
* Note: Will work as B-60, (lower guide) but DOES NOT have a hole for the screw to attach the below table blade guard number (63), part number 823779Shaft Measures .3175\" (or about 3/8\'\') x .5875\"-(about 9/16\") x 1-3/4\" long\"
You may need to adjust the hex shaft your thrust bearing is on. To do this remove the set screw the micro-adjusting nut is on with a hex key. remove hex shaft. The bearing is mounted on a cam. Reinstall hex shaft so the bearing is farther away from guide fork and reinstall.
GUIDE ADJUSTMENT: To adjust the guide first move both upper and lower guide rub blocks and thrust bearing away from blade so it does not touch them. Then adjust the lower side guides so that they just touch the blade behind the teeth. Repeat with upper guide. Then adjust the thrust bearings so that they almost touch the rear edge of the blade with no load. Snug thumb screws on blocks and tighten thumb screws on Rub block fork and thrust bearing. DO NOT OVER TIGHTEN THE SCREWS THAT HOLD THE GUIDE BLOCKS IN! THEY NEED ONLY BE SNUG. Over tightening is a beginners mistake and is the only cause for this part to ever fail.

I sell many bandsaw parts write me with your needs if you can not find them here or below:

Repair Sheet and Parts list in PDF for 14002 emailed 2 you. Item #152789827025

Lower blade guide:Item # 112243893475

Upper blade guide Bracket Item # 112458411734

Blade guide rub block fork Item # 152602074436

Upper Wheel tension Slide only Item #152829588313

Upper Wheel Hinge and Shaft Item # 152708355661

Complete Upper wheel tension assembly Item # 152602070912

Table trunnion support bracket 112458425276

Rub blocks for blade guide Item # 152480378450

Trunnion shoe clamps Item # 112577506256

Table Alignment Taper Pin Item # 152733386309

Ball Bearing Guide Upgrade Item # 112617014304

Door Catch Item #152778061716

Door Catch Stud & Knob Item # 152778067840

Upper Guide Post Complete w/Hardware Item # 152779261500

20% restocking fee on returns

All sales ship to address registered with at the time of the sale.
