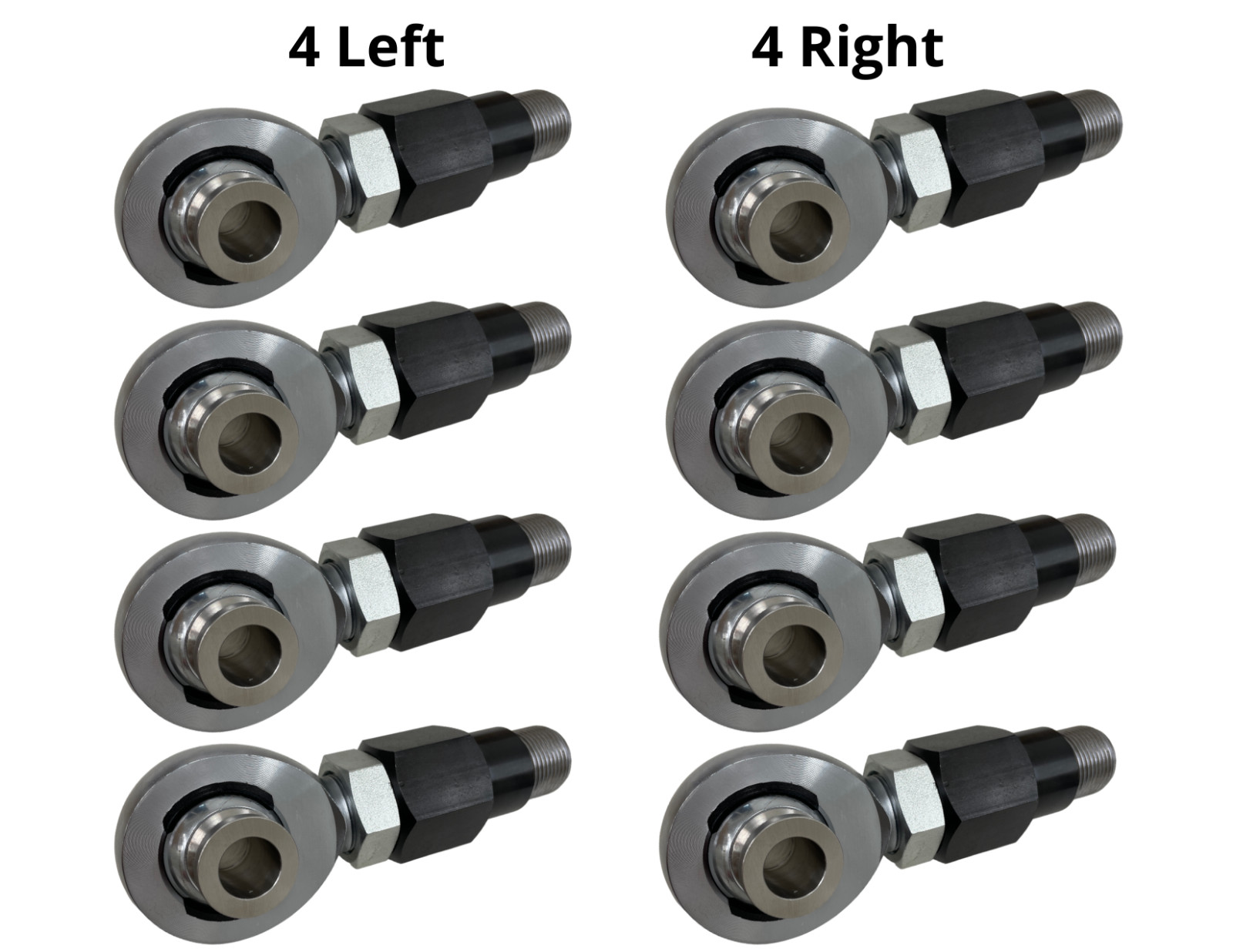

1 1/4\" 4 Link Kit – Long Shank 2-Piece Heim Joint 3/4\" High Misalignment Spacer For Sale

1-1/4ROD END KIT SPECS.

4-LINK KITCONTENTS:

• 4 RH1-1/4”-12 THREAD,1” BORE HOLE, Long Shank
• 4 LH 1-1/4”-12 THREAD,1” BORE HOLE, Long Shank
• 4 RH JAM NUTS
• 4 LH JAM NUTS
• 4 RH HEX TUBE ADAPTERS
• 4 LH HEX TUBE ADAPTERS
• 16 - 1\" HIGH MISALIGNMENT SPACERS 1\" to 3/4\" (2 5/8\" MOUNTING WIDTH)

Here are the 3 kits w/ standard 2-piece heims with different misalignment spacers1 1/4\" 4 Link Kit Hex Bungs With 9/16\" High Misalignment Spacers Heim Joint 1/4\" 4 Link Kit Hex Bungs With 5/8\" High Misalignment Spacers Heim Joint 1/4\" 4 Link Kit Hex Bungs With 3/4\" High Misalignment Spacers Heim Joint are the 3 kits w/ upgraded 3-piece heims with different misalignment spacers1 1/4\" 4 Link Kit - F-1 Fit 3-Piece Heim Joint 3/4\" High 1/4\" 4 Link Kit - F-1 Fit 3-Piece Heim Joint 5/8\" High Misalignment 1/4\" 4 Link Kit - F-1 Fit 3-Piece Heim Joint 9/16\" High Misalignment style=\"font-family: Arial; color: navy; font-size: 14pt;\">ROD END SPECS:

• THREAD SIZE:1-1/4 x 12, Long Shank Version

• BORE:1(1.00)
• BALL WIDTH:1-3/8(1.375)
• RADIAL LOAD: 76,800 lbs
• CHROMOLY: 4130
• TEFLON KEVLAR LINER
• ( Increases wear & longevity )

TUBE ADAPTER SPECS:

• THREAD:1.25\"-12 (FOR 1.5\" ID TUBING)
• LENGTH: 2.50\"
• MATERIAL:1045 STEEL
• ( Fits in2\"(2.00)outer diameter tube with(.250)wall thickness with a 1-1/2”(1.50)inside diameter hole)
