1/2\" NPT Pilot & Unloader Valve, Check Valve, Throttle Control Cable for 8-13HP For Sale

Upgrade your air compressor with this versatile combination pilot valve, check valve, and unloader valve designed specifically for 8HP to 13HP gas-powered engines. Experience enhanced performance and reliability with this essential component.

• 1/2\" Female NPT Inlet/Outlet: Standard connection for easy installation.
• Throttle Control Options: Choose your Throttle Control Cable Overall Length (OAL) from the available variations.
• Customizable Unloader Valve PSI: Select your ON/OFF PSI Rating to optimize performance based on your specific needs.
• Flow Rate: 30 CFM with a pressure differential of 10 to 50 psi, ensuring efficient operation.
• Durable Construction: Made entirely of brass, built to withstand the rigors of outdoor use.
• Manual Hand Unloader Toggle: Convenient control at your fingertips.
• Temperature Range: Operates effectively from -65°F to 400°F max.

• Functionality: Connects from the unloader to your engine throttle arm, signaling when to run or idle.
• Z Bend Connection Type: Ensures secure attachment at the throttle outlet on the valve.
• Pressure Specifications: Minimum Pressure: 80 PSI; Maximum Operating Pressure: 500 PSI.
• Retracted Spring Force: 16.89 lbf for reliable operation.
• Stroke Length: 1.00 inch for optimal movement.

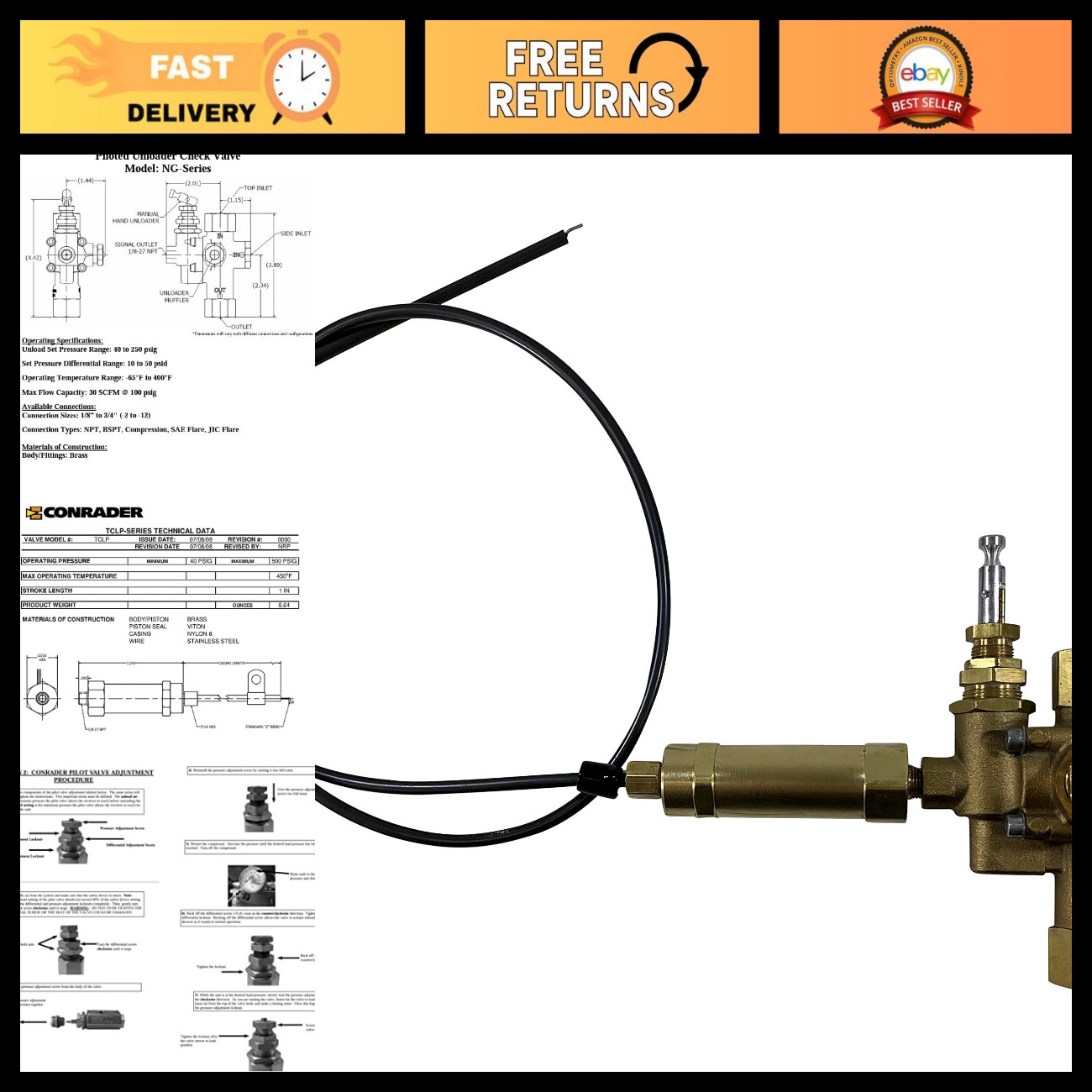

Please refer to our breakdown sheet in the images for detailed information regarding each connection port. Enhance your air compressor\'s efficiency and functionality with this all-in-one valve solution!
