Features:

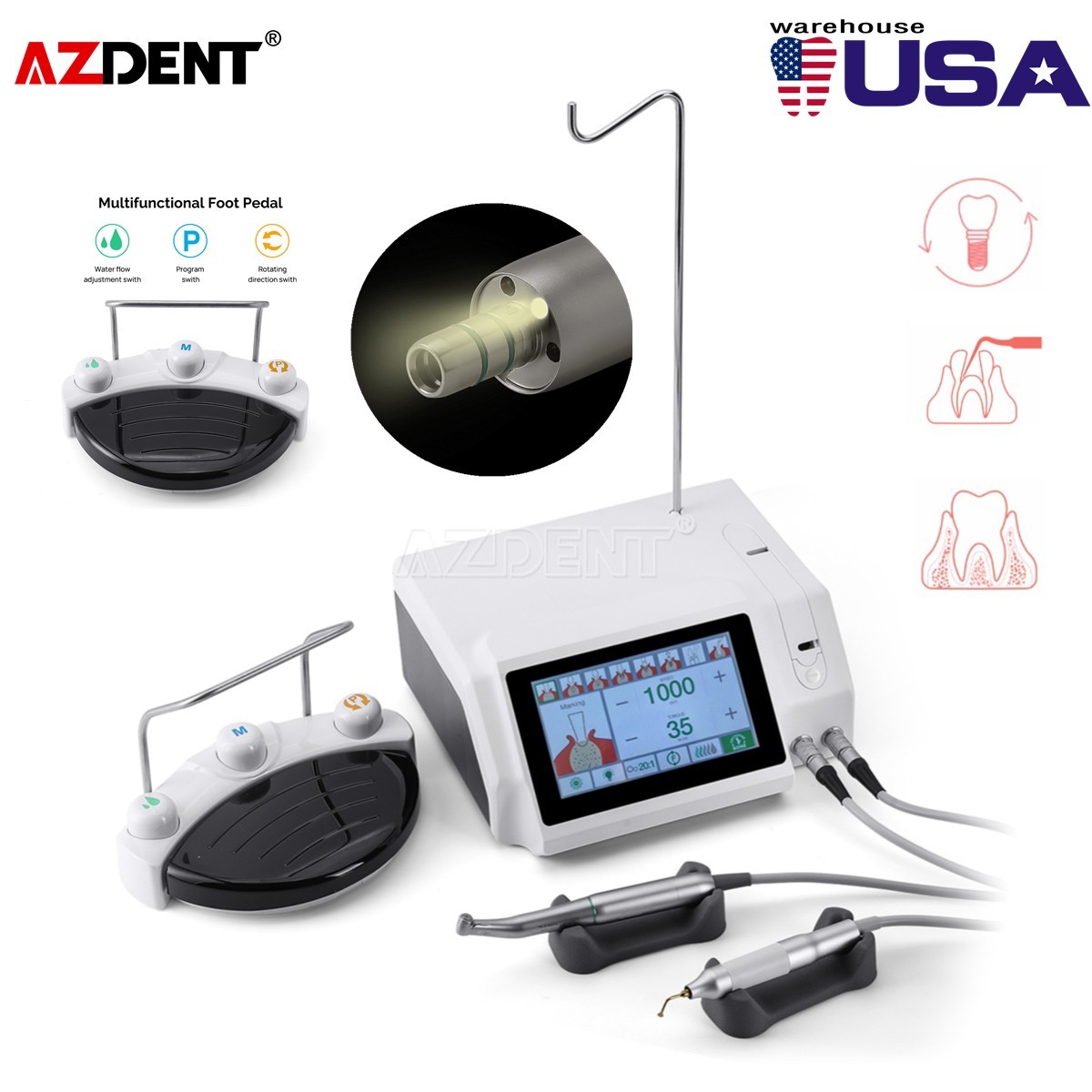

1. Multi-functional integration. Combines dental implant placement, low-power dental restoration, and ultrasonic bone cutting for minimally invasive dental surgery. Multiple programme modes freely configurable for implant placement, restoration, bone cutting, periodontal treatment, root canal therapy, and cleaning. Implant restoration function compatible with 10 types of bending heads (1:1, 1:2, 1:3, 1:4.2, 1:5, 3.2:1, 4:1, 16:1, 20:1, 27:1) for diverse surgical applications. Ultrasonic bone cutter features compatibility with over 20 different working tips, 4 operating modes, and 10 power levels. 16:1, 20:1, and 27:1 ratios, catering to diverse surgical applications. The ultrasonic bone cutter accommodates over 20 distinct working tips, four operational modes, and ten adjustable power levels to meet minimally invasive dental surgery requirements across various oral locations. Surgical parameters are automatically stored and recalled, eliminating repetitive settings. The software employs user-friendly, intelligent algorithms.
2. Touchscreen display. Features a 7-inch true-colour TFT capacitive touchscreen with a visualised interface and ergonomic touch design, supporting multi-touch input with responsive response. The self-illuminating screen offers unrestricted viewing angles and adjustable brightness, ensuring optimal visibility under both bright and low-light conditions.
3. Multi-function foot control. Artificial intelligence foot control algorithm ensures smooth motor speed and ultrasonic start/stop control. Enables seamless switching between surgical modes, water flow, and power settings for intuitive operation.
4. Dental implant placement, restorative procedures, minimally invasive bone cutting, periodontal surgery, root canal therapy, and cleaning modes all support external connection to physiological saline or sterile water. Prevents backflow, reducing cross-infection risks.
5. Implant and micro-motor handpieces employ next-generation high-efficiency, low-noise, high-torque brushless DC motors. Maximum speed: 40,000 rpm (1:1 ratio). Maximum torque: 80 N·cm (20:1 ratio). Ultrasonic bone cutters utilise high-performance crystal transducers. The main unit incorporates low-power intelligent control algorithms for precise motor speed and ultrasonic output regulation, resulting in reduced overall power consumption and operating temperature.
6. Incorporates an integrated peristaltic pump with multi-level water flow settings for precise hydration control. Features a streamlined, integrated housing design.
7. Host unit includes built-in operating instructions alongside ten common error prompts and alarm interfaces, providing immediate alerts for incorrect operation and enhanced overall system protection.
8. Implant and micro-power handpieces, along with ultrasonic transducer handpieces, are autoclavable to reduce cross-infection risks, providing greater peace of mind during procedures.
9. All implant, micro-power, and ultrasonic transducer handpieces incorporate high-brightness self-illuminating LEDs with multi-level brightness adjustment, enhancing surgical visualisation and precision.
Technical Specifications
Host specifications
Power supply voltage：AC100-240V
Power supply frequency: 50/60Hz
Input power: ultrasonichandpiece
Dimension: ∅21.5mm×110mm
Tail cord length：1.8m
Motor specifications
Rotating speed range: 200~40000rpm
Torque range：5-80N·cm (Speed ratio：20:1)
Input voltage：DC30V
Dimension: ∅21.5mm×105mm
Tail cord length：1.8m
Foot pedal controller specifications
Tail cord length：2.0m
Ultrasonic working environment
a) Environment temperature: 0°C~+40°C
b) Relative humidity: 30%~75%
c) Atmosphere pressure: 70kPa~106kPa
d) Temperature in the water inlet of water-cooling equipment is not higher than 25°C
Intermittent operation equipment
Device forultrasonicintermittent operation: 60s ON, 10s OFF
