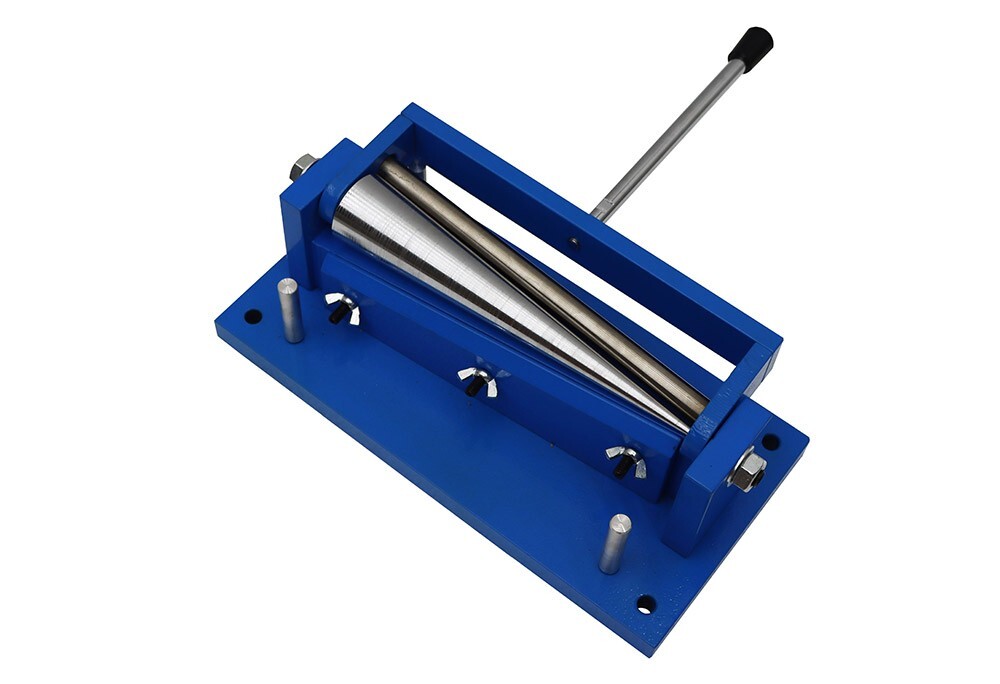

1 PC Stainless Steel Paint Film Conical Bending Tester 8\"Taper Shaft Length Cone Axis Bend Tester New
This unit is a off from metal plate when the coating of color paint and related productsis bent around the cylinder shaft under standard conditions.
Insert the test plate between the tie rod and the conical shaft, and clamp the lever with a splint, turn the shaft from front to back (to bend the test plate around the conical shaft), and measure it according to the crack position of the coating on the test plate its peeling stainless steel + iron
Test plate substrate thickness:≤0.03inch (0.8mm)
Shaft rod size Shaft small end diameter: 0.1inch (3.2mm)
Shaft rod size Shaft big end diameter: 1.5inch (38mm)
Taper shaft length: 8inch (203mm)
Size:11*5.5*12.4 inch (280*140*315mm)
Item Included:1 PC Stainless Steel Paint Film Conical Bending Tester 8\"Taper Shaft Length Cone Axis Bend Tester New
On Oct 8, 2022 at 00:16:06 PDT, seller added the following information:
