1 PCS Brushless Motor Controller Driver Board FOC Control SVPWM SPWM Module For Sale

Product features:

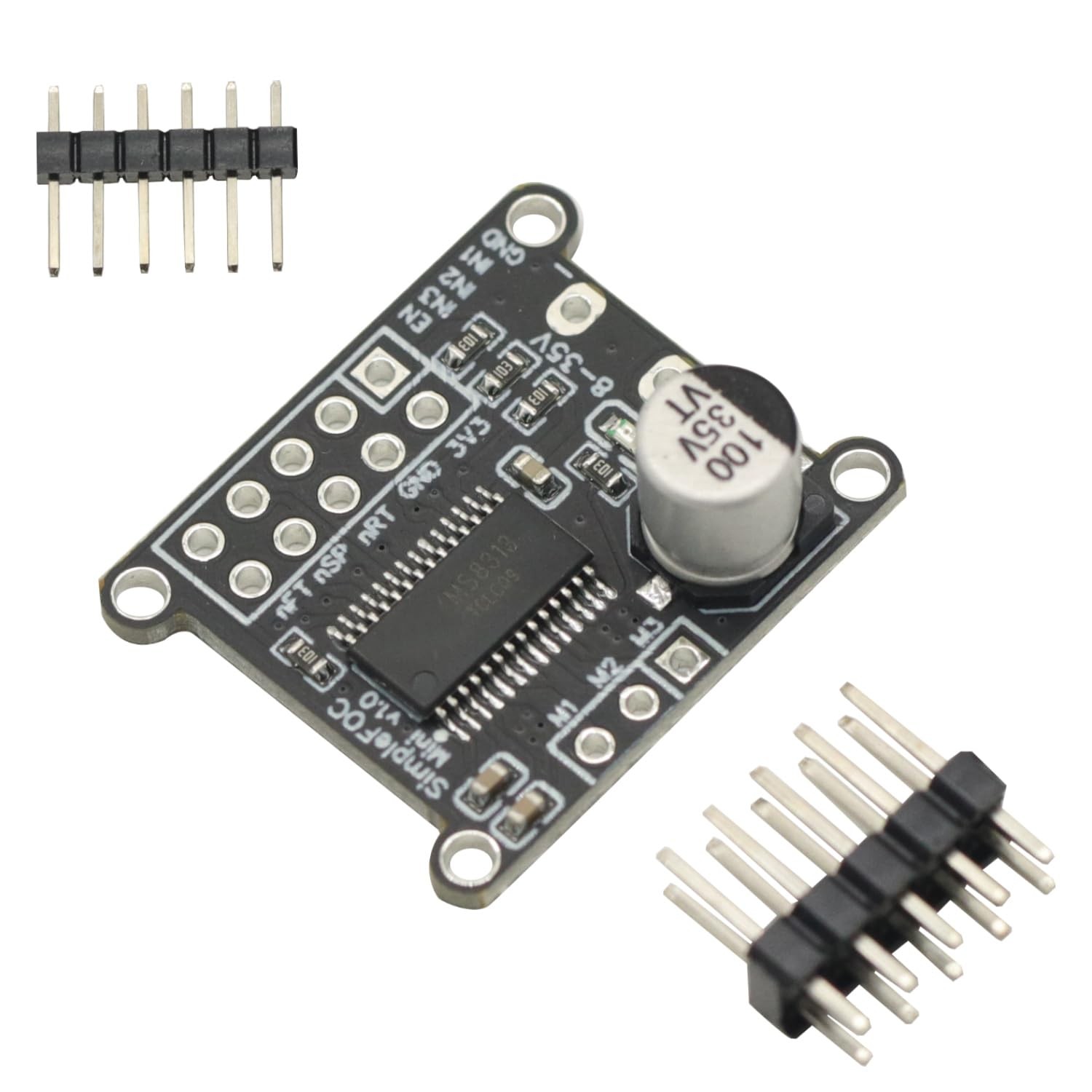

The SimpleFOCMini DC brushless motor driver board uses the DRV8313 chip.

The DRV8313 provides three independently controllable half-H-bridge drivers, mainly used to drive brushless DC motors.

Only the control signal and the motor UVW three-phase line need to be connected to control the motor rotation.

The SPWM and SPVMW control algorithms are supported, but the traditional 6-step commutation control algorithm is not.

For A-rduino simpleFOC can be used quickly and easily.

Product parameters:

1. Input supply voltage: 8~30V

2. Maximum output current per channel: 2.5A

3. On-board 3.3V LDO output, maximum current 10mA

4. Input control signal compatible with 3.3V and 5V.

5. Support SPWM and SPVMW control algorithms

6. Powerful open source library, quick to start.

1. Board size: 25.8*21mm

Pin description:

The left terminal is the input signal of microcontroller, and the right terminal is connected to the 3-phase brushless motor.

Control mode:

Here for the A-rduino development board is used for control, connected according to the following diagram

Install the Slimple FOC library in the for A-rduino IDE

Paste the following code into the IDE: Driver test code

Note that the pin definition has been changed to the pinout of the simple foc mini driver board and for the A-rduino development board.

Click the upload button to compile and download the program to for the a-rduino development board.

Turn on the serial monitor of the IDE and input T6.28, the brushless motor can be rotated.

Pakage list:

DC brushless motor driver module* 1

• 1PCS Brushless Motor Controller
• For Simple FOC Mini DC Brushless Motor Controller Driver Board FOC Control Driver SVPWM SPWM Control Board Module
• 1. Input supply voltage: 8~30V 2. Maximum output current per channel: 2.5A 3. On-board 3.3V LDO output, maximum current 10mA 4. Input control signal compatible with 3.3V and 5V. 5. Support SPWM and SPVMW control algorithms 6. Powerful open source library, quick to start.
• The SPWM and SPVMW control algorithms are supported, but the traditional 6-step commutation control algorithm is not.
• The SimpleFOCMini DC brushless motor driver board uses the DRV8313 chip. The DRV8313 provides three independently controllable half-H-bridge drivers, mainly used to drive brushless DC motors. Only the control signal and the motor UVW three-phase line need to be connected to control the motor rotation.
