12\" Pro Audio Midbass Midrange speaker 8 ohm 3\" voice coil 1250W MB Acoustics For Sale

YOU ARE BUYING ONE 12\" MID-BASS PRO WOOFER

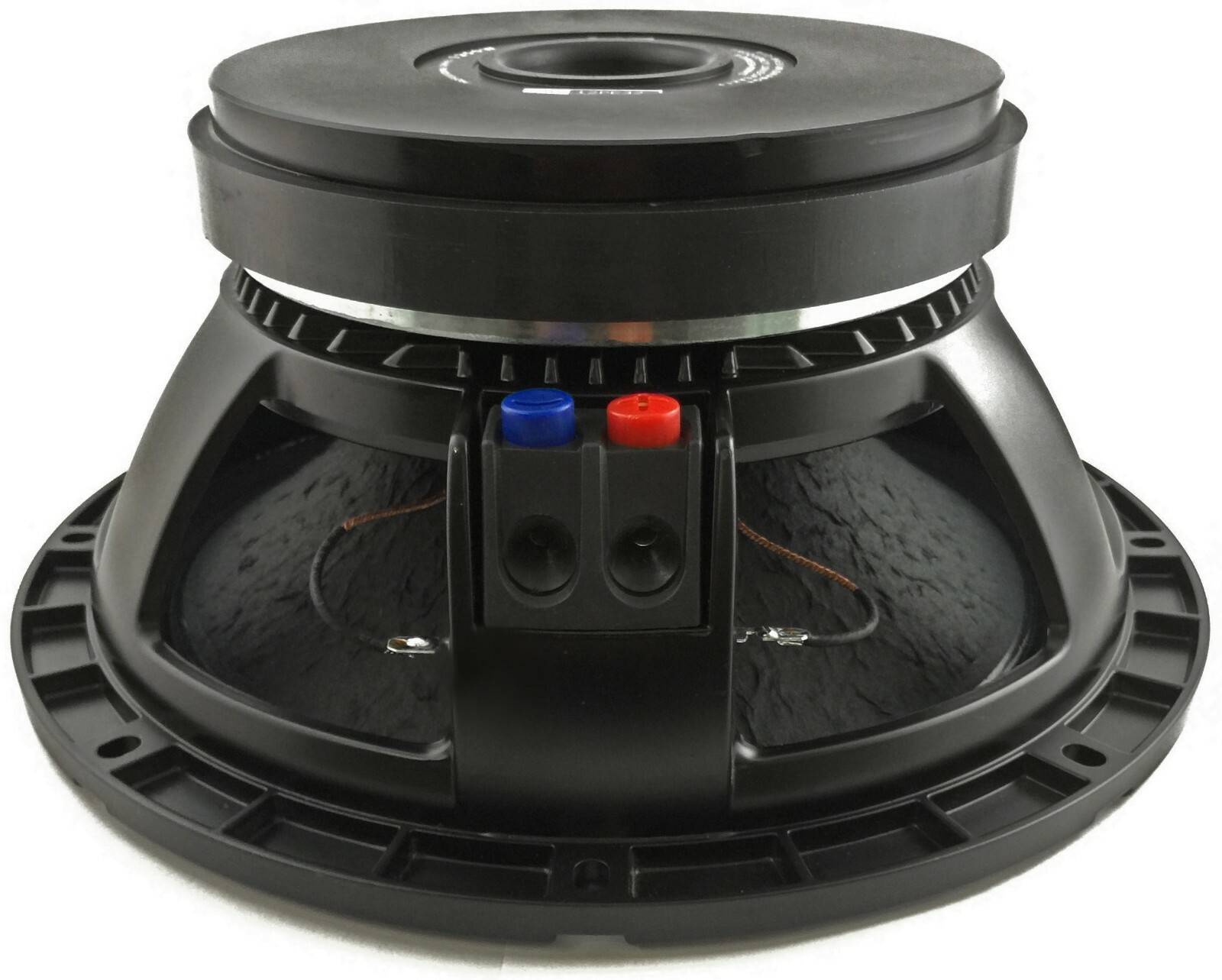

The MB Acoustics MB-12PE32 12\" Professional Loudspeaker was designed for Mid-Bass & Midrange Frequency applications.
With a 3\" High Temperature Glass Fibre Voice Coil matched to a 80oz magnet, you don\'t need a high power amplifier to make them sound good. These great characteristics coupled with a Heavy Duty Non-Pressed Cone, Cloth-edge Surround and Spider with Heavy Duty Spring Terminals, gives you a better loudspeaker than B&C 12PE32 at a much lower price point.

• Type: Mid-Bass Loudspeaker
• Size: 12\"
• Voice Coil:3\" High Temperature Glass Fibre Former
• Voice Coil Wire: Copper
• Vented Pole Piece for maximum voice coil heat dissipation
• Magnet: 80oz
• Cone: Non-pressed (extra Heavy Duty will not tear)
• Cone Edge Surround: Cloth Edge(will not disintegrate or fall apart like foam edge surrounds)
• Reinforced Suspension
• Heavy Duty Aluminum Basket (will maintain the rigidity over the life of the loudspeaker)
• Frequency Response: 50 Hz - 4,000 Hz
• Sensitivity: 103dB (1W/1M)
• RMS Power: 625W
• Max Music Power: 1250W
• Impedance:8 ohm
• Overall Diameter: 12-9/16\"
• Mounting Hole Diameter: 11-1/8\" minimum
• Mounting Depth: 5\" (Must add at least 2\" of clearance for magnet\'s breathing hole)
• Net Weight: 16 LBS

Based on the graph curves, here is what we can infer about the sound and performance:1. Bass \"Punch\" and ControlSingle peak at60 Hz.

• The Sound:You can expect the bass to be tight, controlled, and accurate rather than \"boomy\" or \"loose.\" Since the resonance is at 60 Hz, the speaker likely won\'t produce much deep, sub-bass, but it will handle kick drums and bass guitars very cleanly.

2. Midrange ClarityThe \"dip\" in the graph is between200 Hz and 500 Hz.

• The Sound:This is a very \"safe\" impedance curve for the midrange. Because the impedance is stable and relatively low (around 8 Ohms) in this area, your amplifier will have an easy time delivering power here. This translates to aclear, natural soundfor vocals and instruments like guitars.

3. High-Frequency \"Smoothness\"The black line rises steadily as it moves toward 20 kHz.

• The Sound:This rising slope is common in most speakers, but it is quite steep here. If you use aTube Amplifier, this high impedance at the top end might actually make the speaker sound a bit \"brighter\" or airier. On a standardSolid-State Amplifier, it will sound very smooth and relaxed in the high frequencies, rather than sharp or \"stinging.\"

4. Overall EfficiencyBecause the impedance stays at or above 8 Ohms across the entire range, this is considered an\"Easy Load.\"

• The Result:This speaker doesn\'t \"stress\" the amplifier. It will likely sound consistent and won\'t distort easily, even if you are using a budget-friendly or lower-powered receiver.

Replacement Voice Coil available at the following Re-cone Kit available at the following
