12 V - 1750 RPM - Slow Speed Electric DC Motor w/ Cable + Connector - High TQ:
$24.95

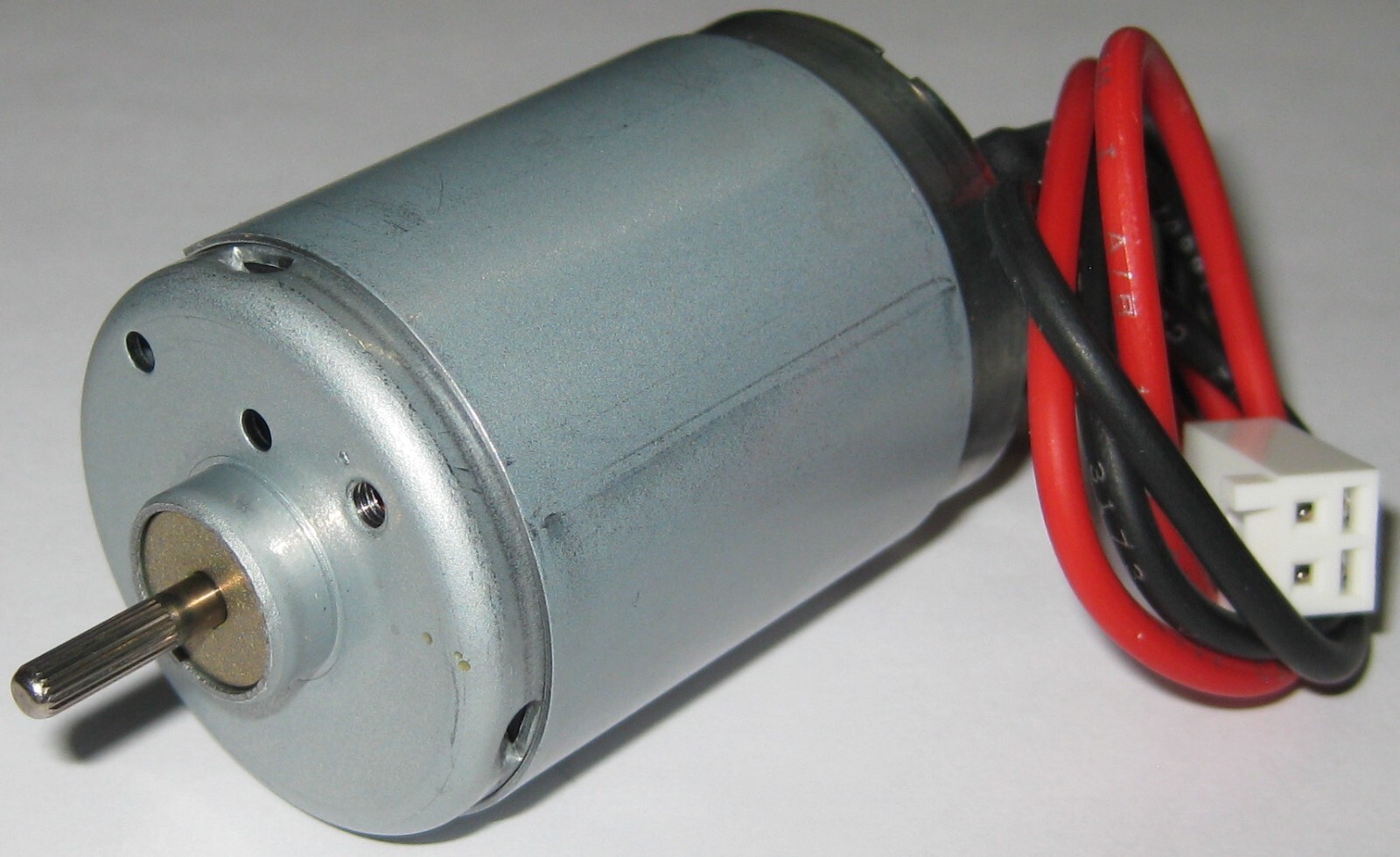

12 V - 1750 RPM - Slow Speed Electric DC Motor w/ Cable + Connector - High TQ
- Permanent magnet electric DC motor
- Manufacturer: Mabuchi
- Model: RS-545PH-19185
- Voltage: 12 V DC
- No load speed at 12 VDC: 1,750 RPM
- No load current: 50 mA
- Stall current: 1.05 A
- Intermittent duty
- Can be operated in either direction, simply reverse power supply polarity
- Dimensions (not including shaft): 50 mm long x 37 mm diameter
- Knurled shaft dimensions: 12 mm long x 3.17 mm diameter
- 12\" long power leads terminated with a 2 pin female connector
- Features 2 threaded (M3 x 0.5) mounting holes on 25 mm centers
- Weight: 6.9 oz (195 g)
