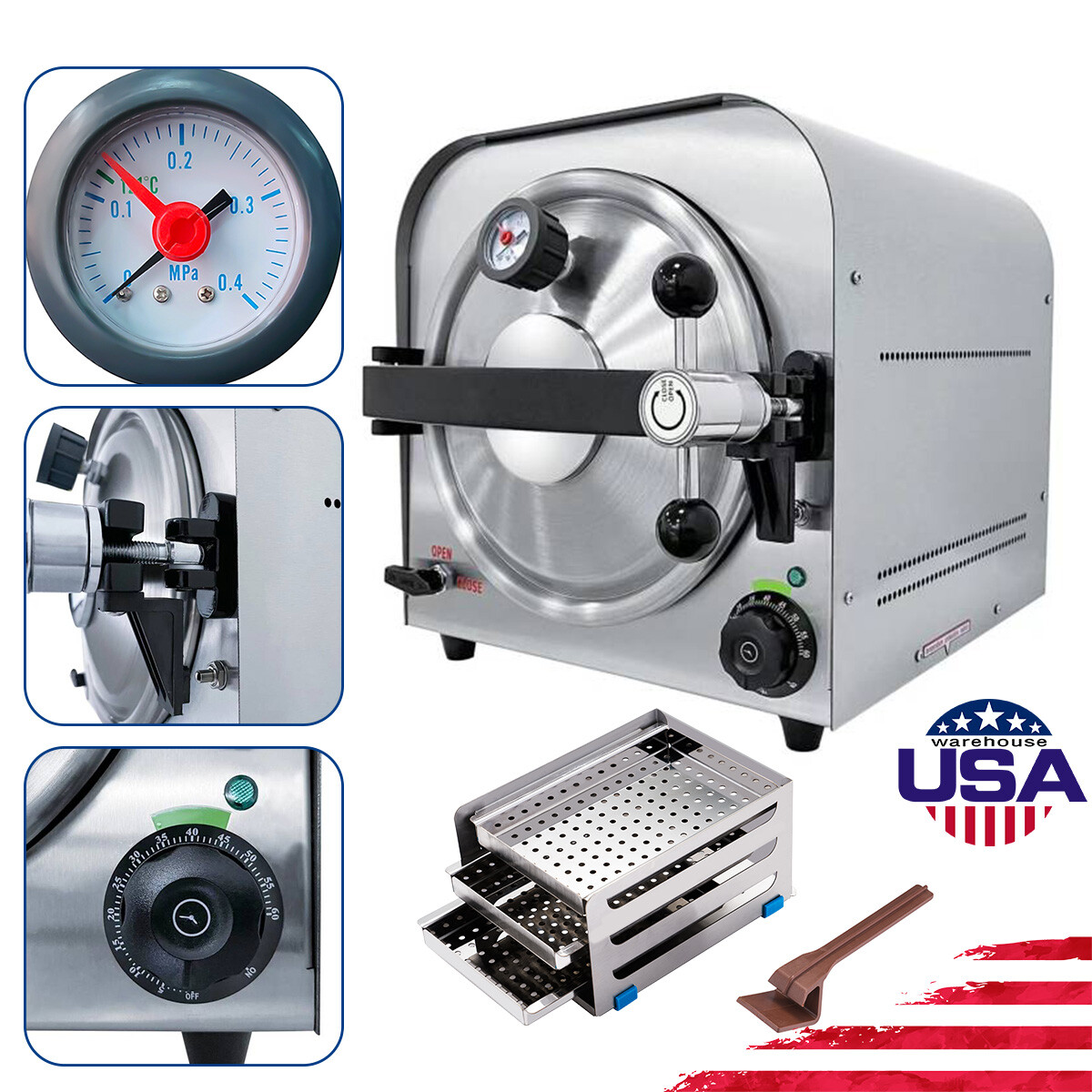

Dental Autoclave Steam Sterilizer Medical sterilization 14L
Feature:
Chamber capacity:Ø25×D28CM (Ø9.84×D11.02inch)
Inside capacity：14 Liters
Material：Stainless steel #304
Outside Size：46.5*35*36 CM
Packing Size：51*39*40 CM
G.W:15KGS
Sterilizer temperature：121℃
Sterilize pressure：0.12Mpa
Sterilize time：25Min
Power：900W
AC110V/8A
Auto supply water system: Manual give the water
Safety valve: automatic discharge in excess of standard value
Temp and Press display：Pressure gauge
Disinfection principle：Uses the vapor power emissions cold air / 2 times
Operation Steps:
1.Plug in the power cord
2.Shut exhaust needle valve in the Close (clockwise)°
3.Adding about 800 ml of distilled water. Close the door cover, tight the rotate handle.
4. Start the timer knob to 121℃position. Sterilization is working.
5.Sterilization is complete, please be sure to open the exhaust needle valve firstly (inverse clock direction)
6.Wait for the pressure gauge pointer to zero, opened the door cover
Caution:
Every time sterilization, must add about 800 ml of distilled water
Use a separate socket (confirm the socket of the output voltage)
Pressure gauge pointer in the red areas, please be sure to first Open the exhaust steam of the needle valve
Packing:
Main unit 1pc
Standard accessories:
Plate 3pcs ( Size:201*136*21 mm)
Shelf 1pc
Take Plate tool 1pc
steamexhaustpipe1pc(1 meter />Dental Autoclave Steam Sterilizer Medical sterilization 18 L
Description:
Chamber capacity:Ø25×D35CM (Ø9.84×D13.78inch)
Inside capacity：18 Liter
Material：Stainless steel #304
Outside Size(L*W*H) ：58*39*36 CM
Packing Size(L*W*H) ：64*44*36.5CM
Sterilizer temperature/pressure：121℃/0.12Mpa; 134℃/0.22Mpa
Sterilize time：25Min/6Min
Power：1000W
AC110V/8A
AC220V/4A
Safetyequipment:
automaticvent
Temp and Press display :Led several windows
Disinfection principle：Uses the vapor power emissions cold air / 2 times
Caution：
1.Beforeeachuse, distilled water is better.
Packing:
main unit 1pc
Standard accessories:
Tray Rack 1pc
Tray 3pcs（size：26*15*2cm）
Tray removal tong 1pc
Draining Tube 1pc
Intake pipe 1pc
Operation manual 1pc
Power cord 1pc
Dental Automatic Autoclave Steam Sterilizer Medical Sterilizition 18L
With Drying Funtion
Description:
Voltage:110V/220V; 50Hz/60Hz
Heater Power: 1000W
Tank capacity: 18L
Inside dimensions: Φ250 x D350mm
Sterilize temperature: 122℃ & 134℃
Sterilize pressure: 0.12Mpa & 0.23Mpa
Sterilize time: 25min & 6min
Drying time: 40min
Tank Material: Stainless steel #304
Machine size (L*W*H): 60 * 39 * 36cm
Packing size (L*W*H): 61 * 53 * 40cm
N.W.: 33KG
G.W.: 35KG
Standard accessories:
Plate * 3PCS（size：26*15*2cm）;
Shelf * 1PC;
Plate Taking tool * 1PC
Application: For dental, surgery, beauty salon, medical care, laboratory, and so on.
Caution：
Pressure Gauge in red area. Do not rotate handle, open the steam discharge valve firstly.
2.Beforeeachuse,mustsupplywater800ml of distilled water.
3.Pleaseclosesteamdischarge valve beforethedisinfection.
Physical Space: 22L
Sterilizing temperature: 121℃,134℃
Display: LCD display
Chamber inner dimensions(Diameter × Depth): φ25*45cm
Net Weight/Gross Weight: 40kg/50kg
Product size: 62.5*44*48.5cm
Package size: European class N
Smart touch keys
LED display panel
Double door locking-system
Water quality sensor
Built-in USB function
Instrument containers
5 layers with 3 trays
Water supply system
Add 400 ml distilled water per cycle. Wastewater drains through the rear hose.
Dry procedure
The residual humidity < wide-angle LED color screen with soft light
2. Italian water pump and solenoid valve with more stable performance and longer service life
3. Large size condenser with dual fans perfectly meet the requirements of electrical safety
4. Safety first,double door locking-system
5. One-ckick program upgrade
6. One-click cpmponents fault self-test fuction
7. Program running curve dot matrix trend,clearly view the sterilization process in real time
8. Humanized appointment fuction making use more efficient and easier
9. 99% saturated steam makes sterilization more thorough
10. All-inclusive heating loop makes sterilized instruments drier
- 6 Sterilization Modes
Wrapped inst
Unwrapped inst
Plastic
