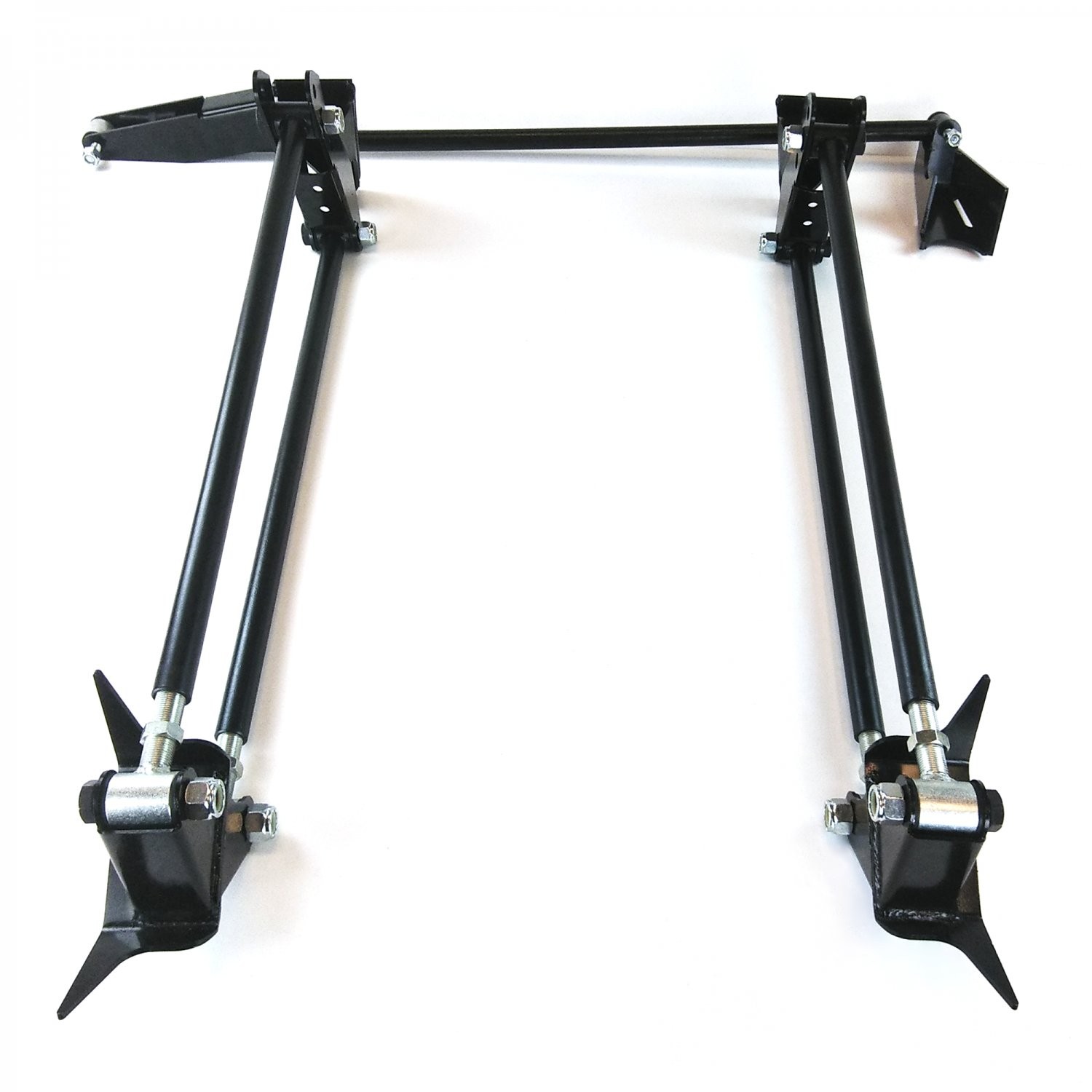

1988-1998 Chevy GMC OBS Pickup Truck Parallel 4-Link w/ Panhard Rear Suspension Sku # 3CB302ConditionNewBrandGilbertsons Machine ShopUnit Of Measure1
Product Description1988-1998 Chevy GMC OBS Pickup Truck Parallel 4-Link w/ Panhard Rear SuspensionPutting A lot of horsepower through the rear end of your truck?Helixs Brand New Heavy Duty Parallel 4-Link Kit is stronger than the rest! With the same .156 wall tubing that is the standard in drag racing applications, Helixs full-sized 4-link kit will remain straight and perfectly aligned under even the most demanding applications. Helixs adjustable 4-link features extra long 28 inch bars and provides you with the maximum in suspension travel and adjust ability. Sleeved bushings guarantee an extended life and reduced wear during operation. Completely TIG welded for maximum strength. All mounts are cut from 3/16 plate. Special adjustable CNC machined threaded rod ends are thicker than usual and thread over 2.5 inches into the 4-link tubes for both strength and adjust ability. Fully plated mounting hardware included.Helix Brand New, Heavy Duty, Rear Parallel 4-Link A Suspension KitApplication :: 1988-1998 Chevy GMC OBS Truck
Type :: Full Size Parallel 4-Link
Axle Mount Bracket :: Weld-On
Frame Mount Bracket :: Weld-On
Main Bars w/ Adjusters :: 28.5" (724mm) Long
Panhard Bar W/ Adjuster :: 40.75" (1035mm) Long Trimmable
Bar Wall Thickness :: 4.1mm
Link Bar O.D. :: 25mm
Axle Tube :: 3" & 2 3/4"
Coil-Over Mounts :: Lower
Adjustable Coil-Over Bracket Positions :: 3
Brackets Thickness :: 5mm
Brackets :: Included
Number Of Bars :: 4
Panhard Bar :: Yes
Installation Hardware :: Yes
Adjustable :: Yes
Shock Hardware :: Yes
Heavy Duty Bushings :: Yes
Coil-Overs :: Not Included
Airbags :: Not Policy:
