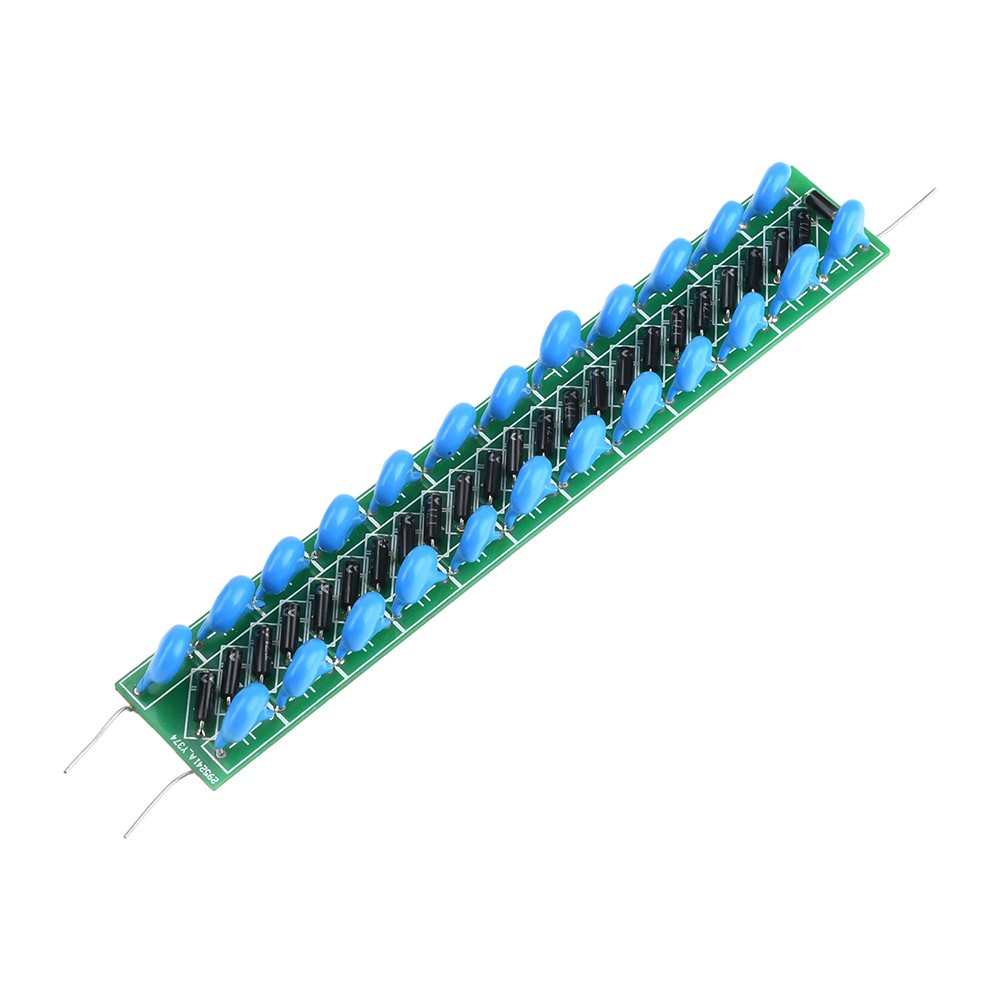

1Pc 24 Times Rectifier 60000V High Voltage Multiplier Voltage Doubler Module BoardProduct Feature：1. High voltage output up to 60000V, suitable for driving various high-voltage equipment such as electrostatic generators2. Adopting 24 times voltage rectification technology, the voltage conversion efficiency is high and the stability is strong3. Compact structure, modular design, easy to integrate installation and maintenance4. Supports multiple input voltage ranges, strong adaptability, and wide applications5. Complete safety protection design to ensure stable operation in high-pressure working environmentProduct parameter:Input voltage:<2500VInstantaneous current:<1AOperating frequency:<80kHzTest frequency: 50KHzOutput voltage:<60KVOverload power:<50WOnboard capacitance: 6kv/1000pFOnboard diode: 5kVQty:1PcPackage included:1Pc Voltage doubling moduleNote:
Please allow 0.5-1cm differences due to manual measurement.
Due to the light and screen difference, the item\'s color may be slightly different from the pictures. Reminder:The voltage doubling rectifier module is an accessory that requires customers with technical capabilities to use, as the high-voltage components on the board are very dangerous. Improper operation can cause electric shock or even explosion!The maximum boost is 24 times. For example, if the input is 2500V, it can output 60000VSuggest 100V~2500V/AC/50KHz, connect it and it can work. It is recommended to leave 10% redundancy for long-term operation. The frequency of the mains 220V/50Hz is too low, and the direct connection effect will be very unsatisfactory.It is recommended to prepare another high-frequency AC high-voltage module with a frequency not lower than 10KHz
