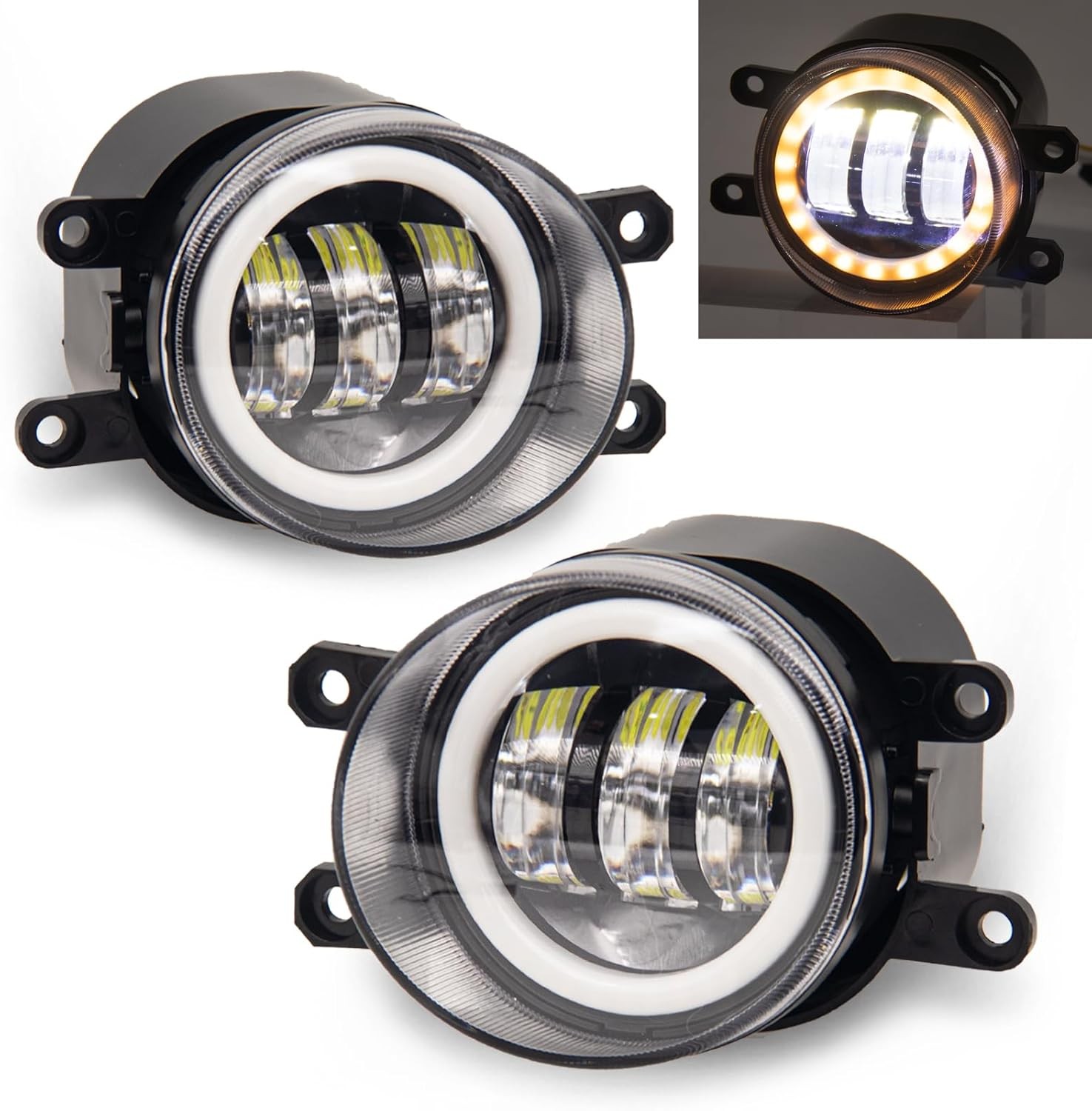

2 PCS 3.5 Inch Driving LED Fog Lights For 2011-2014 IS250/350 Toyota For Sale

Color Clear Lens Specific Uses For Product Fog Lights Light Source Type LED Vehicle Service Type Car Year 2011 Special Feature Dustproof, Waterproof Auto Part Position Front Lens Color Clear Lens Material Polycarbonate See less About this item

Led Fog Lights for 10-13 4Runner, 08-10 Avalon/Highlander, 09-13 Camry etc. Fog Lamps Assembly,100% Waterproof Bumper Lamps-1 Pair

Product Description

2010-2013 4Runner, 2009-2013 Camry, 2008-2010 Highlander, 2008-2011 Avalon, 2009-2013 Matrix, 2006-2012 Rav4

2010-2011 Prius, 2011-2014 Sienna, 2012-2016 Tacoma, 2007-2008 Solara, 2007-2013 Yaris, 2009-2013 Venza, 2005-2006 Scion xA

2011-2013 CT200h, 2008-2011 LX570, 2011-2014 IS250 IS350, 2010-2013 RX350
PRODUCT DETAILS

HIGH QUALITY FOG LIGHTS

SAFETY PROVIDER

QUICK AND EASY INSTALLATION

Fog Light Wiring Kit Installation Instruction (* this product does not include switch)

Use right tools for the purpose and size of the work to be done to ensure proper work.
1. Please bind all harnesses together so that they do not move around loosely otherwise the harnesses may break or short circuit, and accidents, electric shocks or fire may occur.
2. When connecting the harnesses or plugs, insert the connectors firmly until they lock securely into place.
3. Disconnect the negative of the battery before installation. Make sure that lamps, air conditioner and other devices are switched off.
4. Open the hood and remove the front bumper if necessary, then install lights to the proper positions.
5. Route the main wiring harness (A) through the engine room to the lamp position and connect with bulb (B). Attach relay to relay box (C) then attach black wire (Negative) of main wiring harness to frame metal parts to create a ground circuit (D). Attach red wire (Positive) of main wiring harness to Positive of battery (E).
6. Route the main wiring harness(A-1) through cut grommet (F) and connect with main switch wiring harness(G). (Some car models may be pre-wired, then find out the correct circuit and plug it together.)
7. Remove the driver's dashboard lower cover if necessary, then find the power line of the parking lamp (Small lamp) (H-1) and connect with the red wire(Positive) of main switch wiring harness(H). Attach the black wire (Negative) of main switch wiring harness to metal frame to create a ground circuit (I). Then connect the switch (J) with switch connector (K) and put the switch to the night position (Usually it's on the dashboard but some car's switch position are near the hand brake.)
8. The lights operate only in the low-beam position. Adjust the light aiming according to your local laws and regulations.
9. If the lights don't turn on, check the fuse ( most car's fuse box is located in driver's dashboard lower cover) and all wire connectors.
10. The light lenses can cloud when the outside temperature is cold; this is normal and should go away in warm weather.
11. Do not touch the bulb. Oily or greasy substances on the bulb can shorten service life.
