DESCRIPTION
Core dimensions:17 7/8\" W x 14 3/4\" H x 1.73\"
Overall dimensions:21 5/8\" W x 15 7/8\" H
Inlet Size:1 1/2\" On Passenger Side
Outlet Size:1 1/2\" On Driver Side
Transmisson Oil cooler:No
Manual transmission
1983-1994FordRangerCompact Truck 2.0L 2.3L 2.8L 2.9L 4.0L
For GM V8 CONVERSION Engine
Maximum Fan CFM: 1730 cfm
Fan Diameter: 12.050\'\'
Number of Blades:10S-Typeblades
Blade Material: Plastic
Includes the Mounting Tabs for an Easy Zip Tie Installation
Thermostat KitInstallation:
Universal fit for any automotive vehicle and electric fan.
Activates by grounding electric fans at preset temperature.
185\'F turn-on temperature, 165\'F turn-off temperature.
RED + connect directly to battery.
WHITE wire to ignition switch power source.
BLACK goes to thermos switch.
BLUE wire goes to the Fans.
This set up will run Fans & pull air in through radiator.

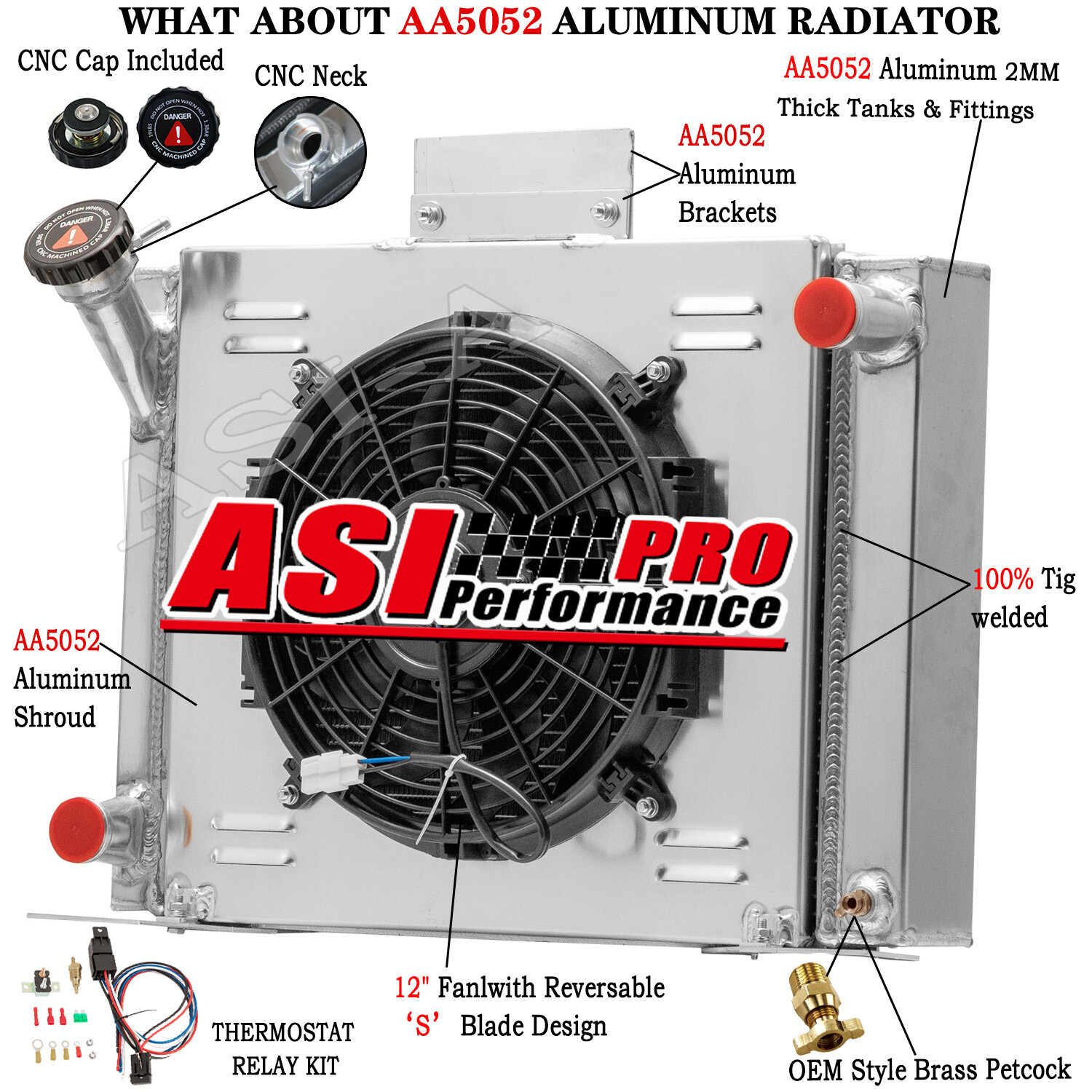

ThisAA5052Aluminum Radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. ThisAA5052Aluminum Radiator is at least 30%-45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1. Made from AircraftAA5052grade aluminum for prolonged lifespanand with raw aluminum finish
2. Brazed core technology to guarantee optimum performance and dependability
3. AllAA5052Aluminum 2mm thick tanks and fittings,Ensure it\'s hard and durable
4. Billet Aluminum CNC machined fill neck rugged and durable
5. CNC machined cap with Engraved craftsmanship, anodized treatment.
6. OEM style brass petcock drain much better than other plastic one on
