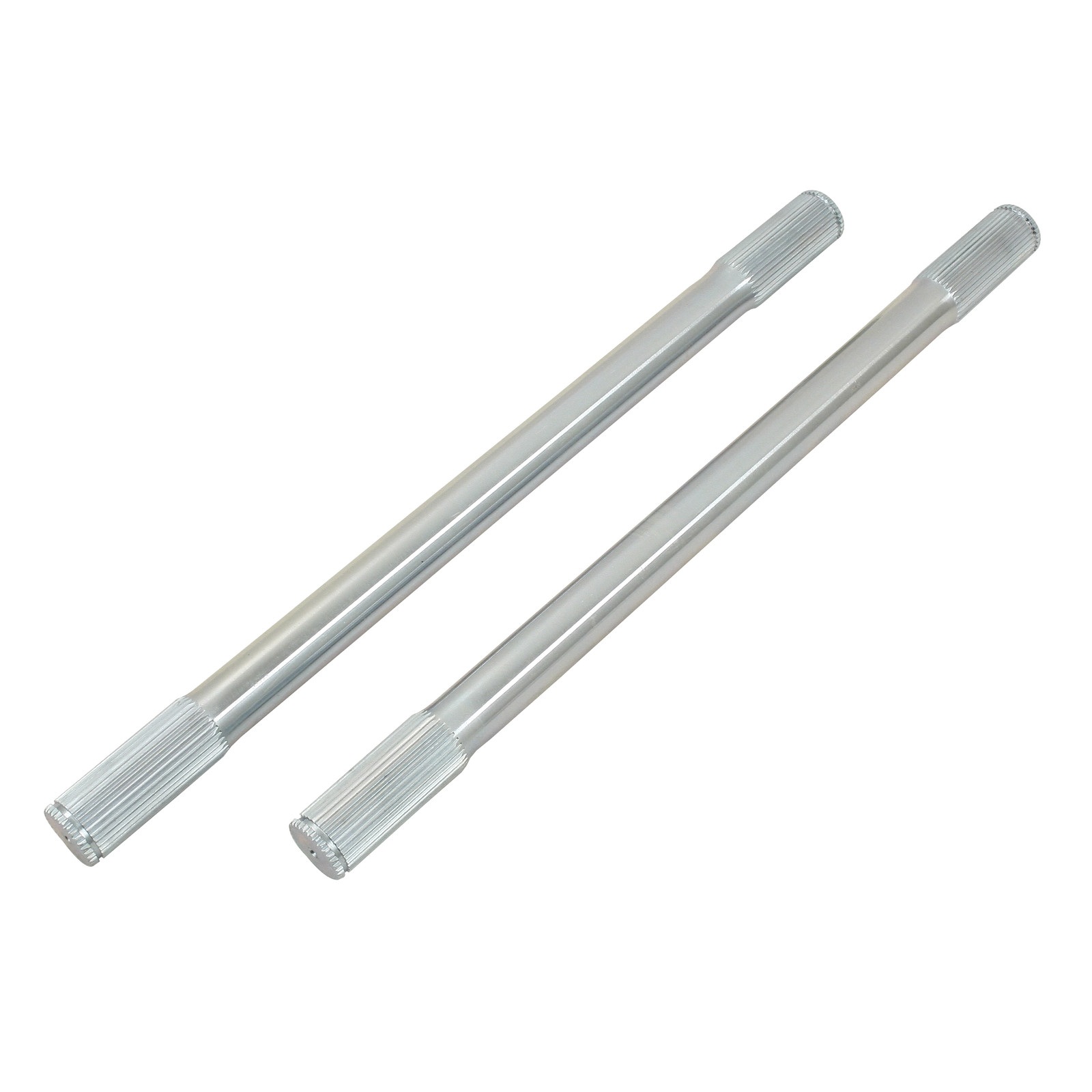

20 1/4 Axles 28 Spline Pair for 930 CV Joints Dunebuggy & VW For Sale

When you are pushing the limits of your off-road machine, the stock drivetrain components quickly become the weakest link in the chain. These EMPI 20 1/4-inch chromoly axles are engineered specifically for high-travel Independent Rear Suspension (IRS) systems that demand the strength and articulation of 930-style CV joints. Manufactured from high-grade 4340 chromoly steel, these axles provide the torsional flexibility required to soak up the abuse of heavy landings and high-torque takeoffs without snapping like factory units. The zinc-plated finish isn\'\'t just for looks; it provides a critical layer of corrosion resistance against the elements, ensuring that your splines remain clean and serviceable even after seasons of mud, sand, and salt exposure. If you are building a serious Baja Bug or a wide-track sand rail, these axles represent the bridge between raw power and reliable traction.

The 20 1/4-inch length is the industry standard for Type 1 transaxles paired with 3x3 trailing arms (3 inches wider and 3 inches longer than stock). This specific geometry allows for massive suspension cycling, but it puts incredible stress on the axle shafts and splines. By utilizing a 28-spline configuration designed for 108mm 930 CV joints, these axles offer a significant upgrade in surface area contact and load distribution compared to standard Type 1 or Type 2 components. Whether you are navigating technical rock sections or airing it out over dunes, the precision-machined 2-1/2 inch spline length ensures that your CV joints have the necessary room to float, preventing internal binding and catastrophic drivetrain failure. When you buy from Appletree Automotive, you are getting a component that has been vetted by decades of air-cooled racing heritage.

These axles are designed for custom high-performance off-road applications and are NOT a direct replacement for stock-length Volkswagen components. They are specifically intended for:

• Volkswagen Beetle (IRS Models): Equipped with aftermarket 3x3 trailing arms.
• Volkswagen Karmann Ghia: Converted to long-travel IRS suspension.
• Volkswagen Thing (Type 181): Utilizing widened off-road suspension setups.
• Dune Buggies & Sand Rails: Built on Type 1 chassis platforms with 930 CV flanges.
• Baja Bugs: Designed for extreme wheel travel and widened rear tracks.
• Transaxle Compatibility: Fits Type 1 (Swingaxle-to-IRS converted or factory IRS) transaxles equipped with 930 (108mm) drive flanges.

• Material: Heavy-Duty 4340 Chromoly Steel
• Overall Length: 20-1/4 Inches
• Spline Count: 28 Spline (Standard 930)
• Finish: Corrosion-Resistant Zinc Plating
• Spline Length: 2-1/2 Inches for maximum CV float
• CV Joint Compatibility: 930 Style (108mm Outer Diameter)
• Quantity: Sold as a Pair (Two Axles)
• Application: Optimized for 3x3 Trailing Arms

1. Validate Suspension Travel and Axle Float

Before you torque down your CV bolts and hit the trail, you must cycle your suspension through its entire range of motionfrom full compression (bump) to full extension (droop). With the shocks removed, move the trailing arm up and down to ensure the axle has at least 1/4 inch of \"float\" or end-play at every point. If the axle bottoms out against the drive flanges at any point in the arc, you risk shattering the CV cages or damaging the transaxle internals. Properly set limit straps and bump stops are mandatory to protect your investment in these high-performance chromoly shafts.

2. Use High-Quality Moly Grease and Proper Torque

930 CV joints operate at much higher angles than standard VW joints, which generates significantly more heat. Always use a high-content Molybdenum Disulfide (Moly) grease specifically rated for high-temperature off-road use. When installing the 28-spline axles, ensure the splines are clean and lightly lubricated to prevent galling. Additionally, always use New Grade 12.9 CV bolts and Schnorr lock washers. Don\'\'t rely on old, stretched hardware; torque the bolts to the manufacturer\'\'s specification in a star pattern to ensure even clamping force across the 108mm flange.

3. Inspect Boots and Venting

Because these axles are used in long-travel applications, your CV boots will be stretched to their limits. We highly recommend using high-quality silicone or heavy-duty rubber boots that can handle the 930 joint\'\'s increased articulation. A common trick among pro builders is to \"vent\" the boots using a small piece of plastic tubing under the boot clamp; this prevents the boot from \"ballooning\" due to heat expansion or collapsing due to vacuum, both of which can lead to premature boot failure and grease loss. Regularly check for tears, as even a small amount of grit can ruin a 930 joint and the axle splines in a single ride.
