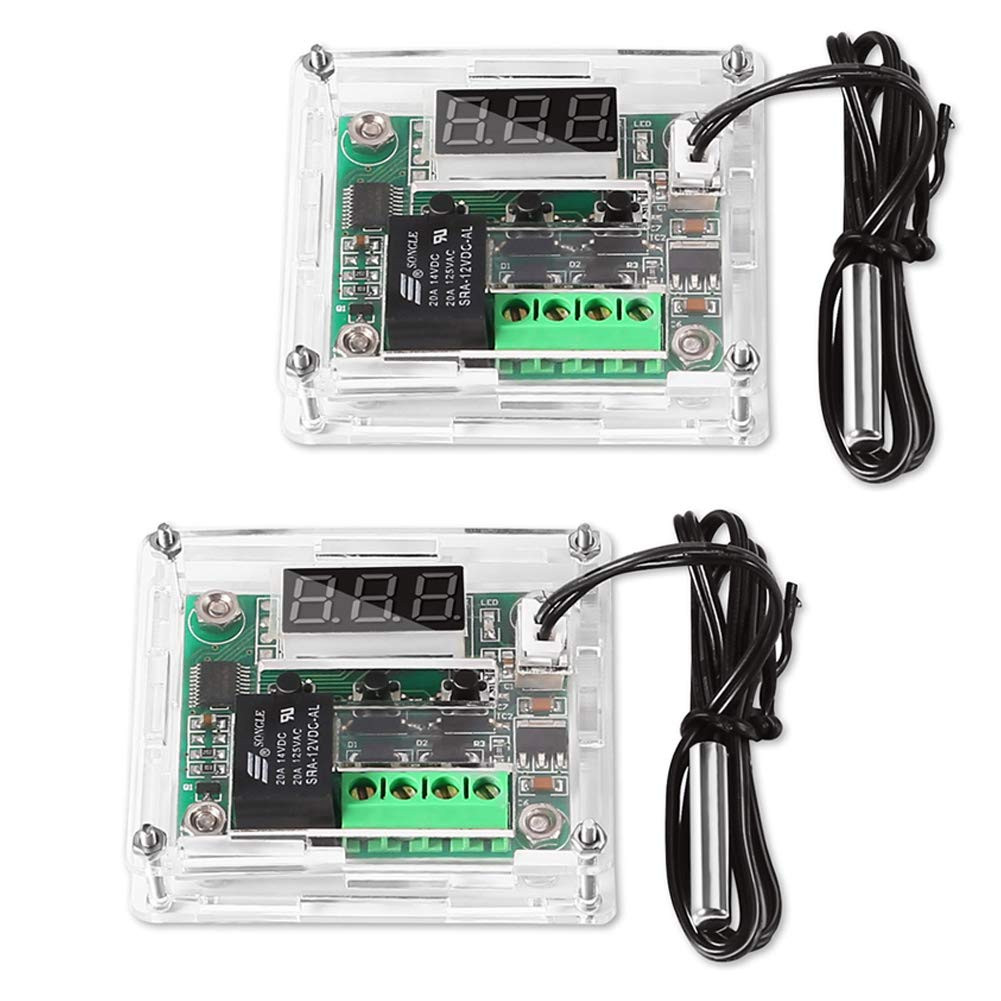

The W1209 is an incredibly low cost yet highly functional thermostat controller. With this module, you can intelligently control power to most types of electrical device based on the temperature sensed by the included high accuracy NTC temperature sensor. Although this module has an embedded microcontroller no programming knowledge is required. 3 tactile switches allow for configuring various parameters including on & off trigger temperatures. The current temperature is displayed in degrees Centigrade via its 3 digit seven segment display and the current relay state by an on board LED.
P0 :Cooling / Heating; Range: C/H; Default: C
P1 :Hysteresis Setting; Range:0.1-15; Default: 2
P2 :Highest Setting Limit; Range:110; Default: 110
P3: Lowest setting Limit; Range:-50; Default: -50
P4 :Temperature Correction; Range:-7~7℃; Default: 0℃
P5: Delay Start Time; Range:0-10 Minute; Default: 0
P6: High Temperature Alarm; Range:0-110; Default: Off
When the Thermostat is power off, long press "- or +", you can restore the factory Control Range: -50 ~ 110℃
Resolution at -9.9 to 99.9: 0.1℃
Resolution at all other temperatures: 1℃
Measurement Accuracy: 0.1℃
Control Accuracy: 0.1℃
Refresh Rate: 0.5 Seconds
Input Power (DC): 12V
Measuring Inputs: NTC (10K 0.5%)
Waterproof Sensor: 0.5M
Output: 1 Channel Relay Output, Capacity: 10A
Power Consumption:
Static Current:
