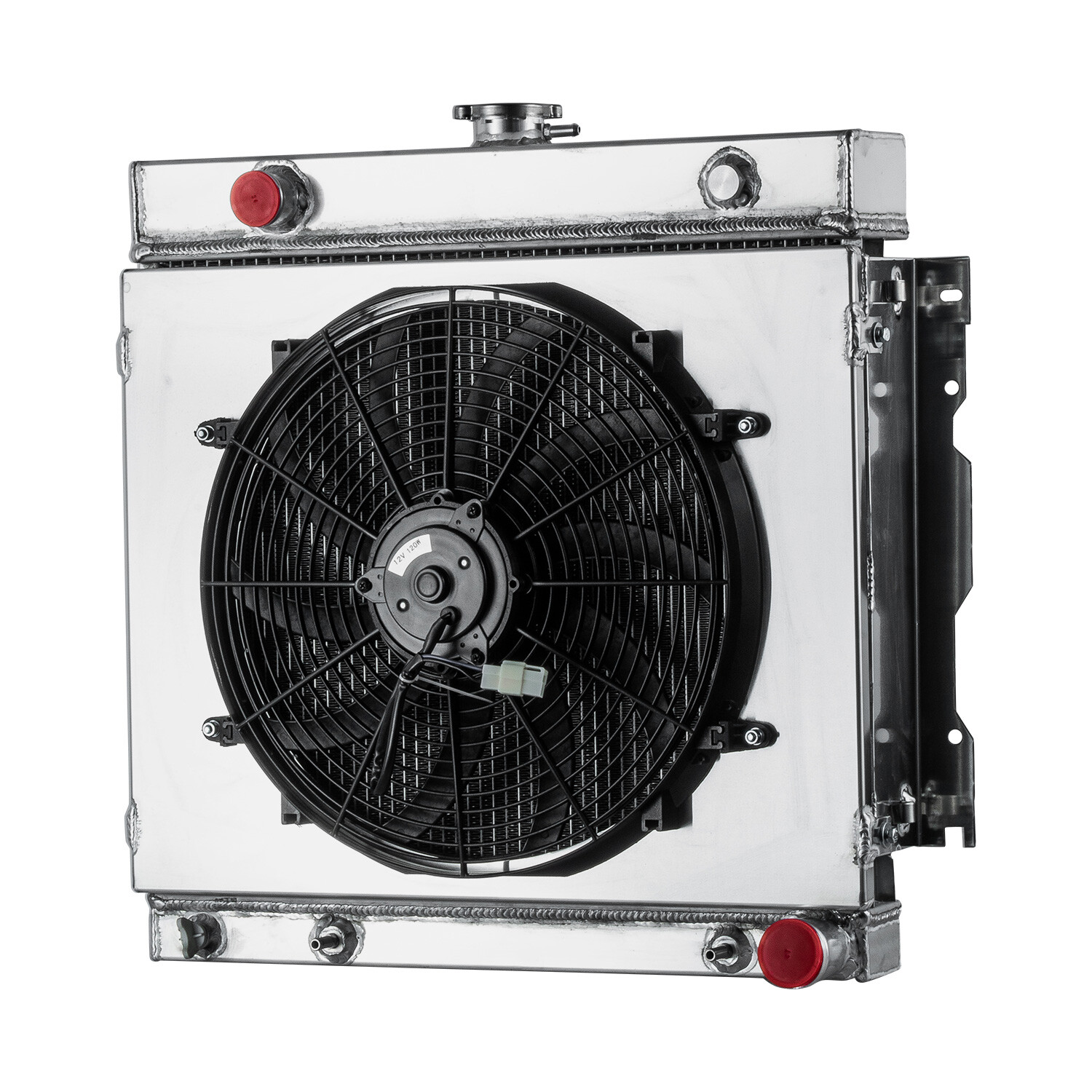

3-Row Aluminum Radiator Shroud Fan Fit 1970-1979 Dodge D/W 100 150 200 300 For Sale

• Intercooler&Kit

• Exhaust Head Pipe

• Radiator Intercooler Hose Pipe

• Other Products

Package Include:
1 X 3-RowAluminum Radiator
1 X Radiator Cap
1 XAluminum Shroud

Fitment：
1972-1979 DODGE D/W SERIES 100 200 300 PICKUP 5.2L 5.9L
1971-1978 DODGE B100 B200 B300 VAN 5.2L 5.9L 7.2L V8
1970-1974DodgeChallenger5.2L 5.6L 5.9L V8
1971-973 DodgeChargerCoronet 5.2L 5.6L V8
1974-1979 DodgeRamcharger5.2L 5.9L V8
1974-1978 PlymouthPB100 PB200PB300Van5.2L 5.9L 6.6L 7.2L V8
1974-1979 PlymouthTrailduster5.2L 5.9L 6.6L 7.2L V8

Radiator Configuration:
Material: Aluminum
3-Row of tubes Core Racing Design
Core Size: 17.85\" Wide x 20.78\" Height
Overall Size: 23.85\" Wide x 25.5\" Height
Inlet Hose Connection: 1 1/2\" On Driver Side
Outlet Hose Connection: 1 3/4\"On Passenger Side
Transmission Oil Cooler: 1/8-27NPT
This radiator is easy to buy wrong, please check the size before purchase!

Fan Specification:
Diameter : 16\'\' (Blade to Blade)
Voltage: DC 12 Volts
Wattage: 120W
Number of Blades: 10 S-Type blades
Maximum Fan CFM（Cubic Feet per Minute）: 3,000 cfm
Maximum Fan RPM（Revolution(s) Per Minute）: 2000±10%
Amp Draw: 10amp
Fan Thickness: 2.95\"
S-Type Blade pull push design, to make air flow more efficient and bring more cooling Effect
Powerful 120 watt motor will keep your engine cool.

Description：
The core of the radiator is welded in vacuum brazing furnace, no epoxy.The Radiator are 100% welded by TIG.Stronger & Higher Capacity for Coolant than OEM units,Made of High Quality Full Aluminum Construction.
This aluminum radiator is designed to provide maximum cooling efficiency to prevent premature engine failure. Its light-weight, and high-heat transferring aluminum features a tube and fin design that, dramatically increases surface area that enables the heat to dissipate more efficiently. This Aluminum Radiator is at least 35% to 45% more efficient than stock ones. Most importantly, it has a much higher capacity for coolant than stock ones, which means that your cooling system will be more efficient and will be more resistant to temperature surges in racing applications.
1 Higher density core: cooling rows are spaced 3/8\" apart.giving you 25% more rows within the core than other aluminum radiators.
2 14-16 cooling fins per inch,giving you approximately 1500 more cooling fins than other aluminum radiators,throws off much more heat.

Aluminum Shroud+Fan：
The fan and the fan shroud effectively drive the heat over and out the engine compartment rather than thrusting it into the front of the engine. The fan shroud basically houses the fan blades securing it in place and keeping it from damaging the other engine components that may disturb the smooth and even operation of the engine. With excellent operating temperature management, allowable levels of engine temperature are stabilized. Investing in proper maintenance though will considerably benefit the ride and driving quality in maintaining the ideal working conditions of the engine.
