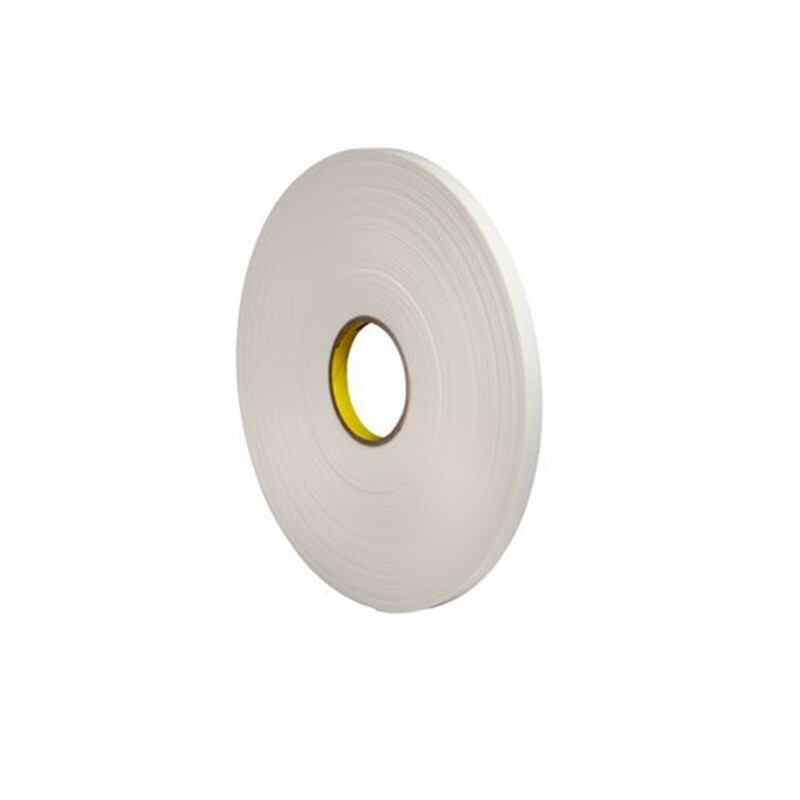

3M™ Double Coated Polyethylene Foam Tape 4496 White is a closed-cell, polyethylene foam carrier. It is formulated for more demanding indoor and outdoor mounting and bonding applications. A noted feature of Foam Tape 4496 White is its ability to conform and bond to irregular surfaces. It offers good temperature resistance and long term durability.
Flexible Foam Tape for Irregular Surfaces
Speed up the mounting process and achieve a more aesthetically pleasing installation with 3M™ Double Coated Polyethylene Foam Tape 4496 White. This 1/16 in. thick polyethylene foam tape is known for its high ultimate adhesion and reliable performance across many surfaces. One of its noted features is its ability to conform to irregular substrates. It provides high ultimate adhesion to many plastics and is formulated for demanding indoor and outdoor general purpose mounting and bonding applications. Common uses include automotive mirror bonding, decorative trim, nameplates and other general purpose mounting applications.
Recommended Application
- Indoor general purpose mounting and joining
- Automotive mirror bonding
- Decorative trim
- Nameplate mounting
Benefits of Double Coated Tape
3M double coated tapes offer speed, strength and improved aesthetics to your mounting application. Instead of mechanical fasteners such as screws, bolts and studs, double coated tapes leave no puncture holes. The tapes can be easily applied by hand or with a dispenser, with no special application equipment required for a firm bond.
What is Double Coated Tape?
In general, double coated tape is composed of a foam, paper, film, or tissue carrier that is coated on both sides with pressure sensitive adhesive. The adhesive is protected by a peel-away liner that can be removed at the time of application or left in place until the joining surfaces are ready to be attached. Applications for double coated tape are found in construction, fabrication, arts, and hobby. For bonding rough or irregular surfaces, 3M™ Double Coated Foam Tapes fill gaps and distribute stress uniformly over the bonded area.
Typical propertiesDetails
Adhesive Type
Acrylic
Backing (Carrier) Material
Polyethylene
Backing (Carrier) Thickness (Imperial)
54.85 mil
Backing (Carrier) Thickness (Metric)
1.39 mm
Brands
3M™
Density (Imperial)
6 lb/ft³
Density (Metric)
60 kg/m³
Indoor/Outdoor
Indoor/Outdoor
Industries
Metalworking, Transportation, Signage, General Industrial, Electronics
Maximum Load (Imperial)
2.2 lb.
Maximum Load (Metric)
1 kg
Maximum Operating Temperature (Celsius)
38 ℃
Maximum Operating Temperature (Fahrenheit)
100 ℉
Minimum Operating Temperature (Celsius)
21 ℃
Minimum Operating Temperature (Fahrenheit)
70 ℉
Overall Length (Imperial)
36 yd
Overall Length (Metric)
32.9 m
Overall Width (Imperial)
0.8 in
Overall Width (Metric)
1.9 cm
Primary Liner
58# Densified Kraft Paper
Primary Liner Color
Brown
Primary Liner Thickness (Imperial)
3.15 mil
Primary Liner Thickness (Metric)
0.08 mm
Product Color
White
Shelf Life
18 Month
Specifications Met
ASTM D3654
Tensile Strength (Imperial)
60.0 lb/in
Tensile Strength (Metric)
414 kPa
Total Tape Thickness without Liner (Imperial)
58 mil
Total Tape Thickness without Liner (Metric)
1.47 mm
