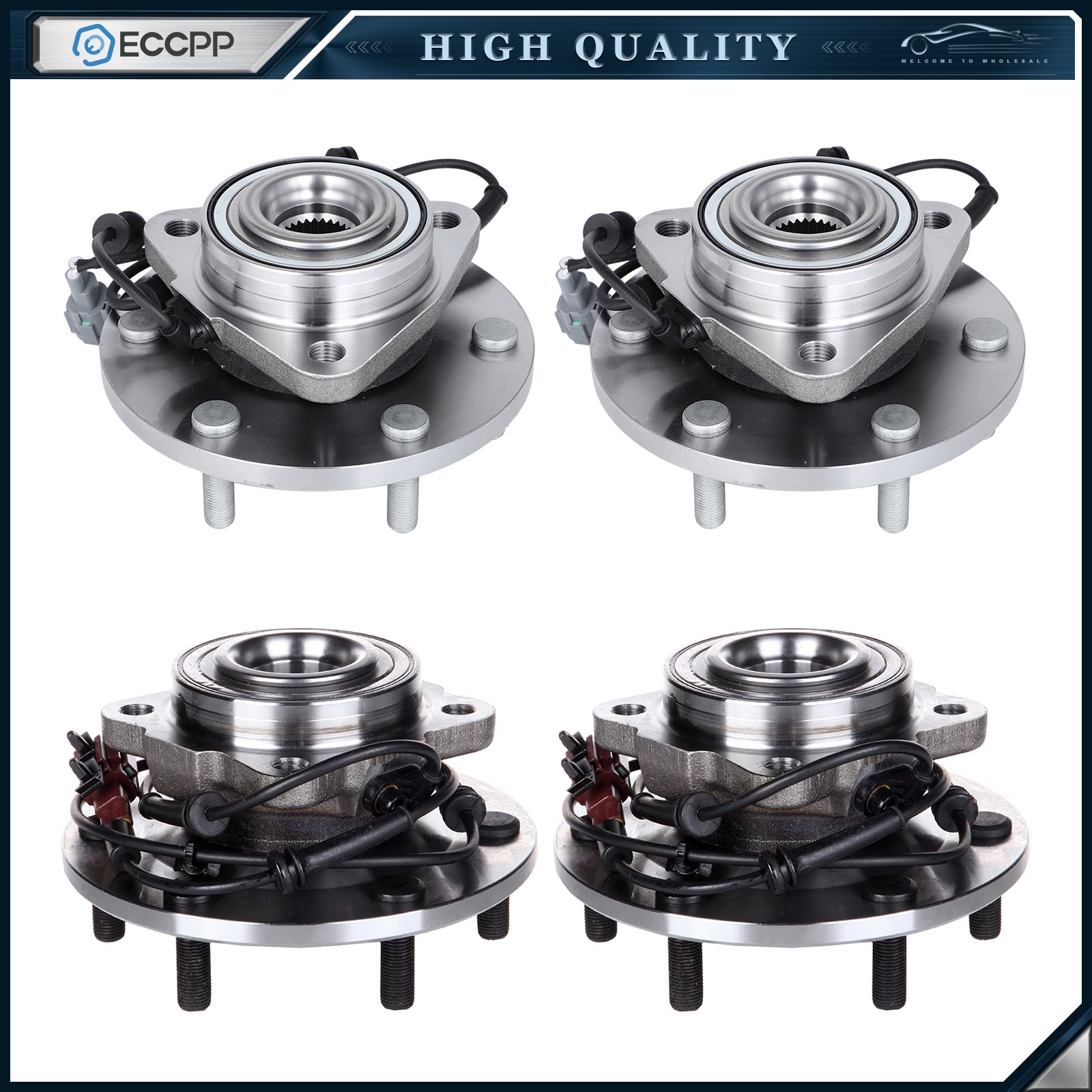

4 Pcs Front Rear Wheel Hub Bearings Assembly For For Nissan Armada 4WD 2008-2012 For Sale

Product Features:

• Fits LH (Driver Side) & RH (Passenger Side)Front + Rear
• Fits 6 LugsWheels
• Wheel studs already installed
• ABS Type: Sensor Wire
• Drive Type: 4WD

Item Description:

• Brand New Wheel Hub Assembly
• Direct replacement
• Built to strict quality control standards
• Replaces dealer part numbers:515125, 40202ZR40A, 40202ZR40B, BHA54064, H515125, 533020, SP500703, BR930829, WE61127, WA515125, 750-0033,541004, WE60936, 1411-09858, 750-0300, AX41004, WA541004, BR930625, SP500702, SK541004, 051-6288, H541004, 532004, BHA54334, 102067, 432027S000

Vehicle Fitment:

4 Pcs Front Rear Wheel Hub Bearings Assembly For For Nissan Armada 4WD 2008-2012

Product Features:

• Fits LH (Driver Side) & RH (Passenger Side)Front + Rear
• Fits 6 LugsWheels
• Wheel studs already installed
• ABS Type: Sensor Wire
• Drive Type: 4WD

Item Description:

• Brand New Wheel Hub Assembly
• Direct replacement
• Built to strict quality control standards
• Replaces dealer part numbers:515125, 40202ZR40A, 40202ZR40B, BHA54064, H515125, 533020, SP500703, BR930829, WE61127, WA515125, 750-0033,541004, WE60936, 1411-09858, 750-0300, AX41004, WA541004, BR930625, SP500702, SK541004, 051-6288, H541004, 532004, BHA54334, 102067, 432027S000

Vehicle Fitment:

• Fits Infiniti QX56 2008-2010 4WD
• Fits Nissan Armada 2008-2012 4WD | Plug In ABS Style |Built Before 12/2011

Package Include:

• (2) Front Wheel Hub Bearings - 515125
• (2) Rear Wheel Hub Bearings - 541004

Exploded View:

1. Wheel hub and bearing
2. Cotter pin
3. Nut retainer
4. Wheel hub lock nut
5. Hub bolt
6. Splash guard
7. Steering
8. Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.?
9. Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.
10. Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.
11. Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.
12. Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.
13. Remove the engine side cover.
14. Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.
15. Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.
16. Remove the wheel hub and bearing bolts using power tool.
17. Remove the splash guard and the wheel hub and bearing from the steering
18. Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
19. Pull out the front wheel sensor, being careful to turn it as little as possible.
20. Do not pull on wheel after removel : Check components for deformationy,cracksy,and other damagey,and boots of transverse link ball joint for cracksy,axial end play,and swing is in the reverse order of the
21. Do not reuse the wheel stud.
22. Do not reuse the cotter pin.
23. Place a washer (A) as shown to install the wheel studs (1) by using the tightening force of the nut (B).
24. Clean the mating surfaces of the joint sub-assembly and the wheel hub and bearing. Apply lubricant to the surface (A) of the joint sub-assembly.
25. Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut

6. Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub lock nut. Do not use a power tool.

7. Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the wheel hub lock nut to the specification.

8. When installing a the cotter pin (1) and the nut retainer (2), securely bend the cotter pin to prevent rattles.

9. Align the matching marks (A) on the disc brake rotor and on the wheel hub and bearing.

Item SpecificsManufacturer Part Number ECP848501HKBrand ECCPPType Wheel Hub & Bearing AssemblyOE/OEM Part Number 515125, 541004Material SteelSurface Finish Polished, Rust ProtectedQuantity 4Fitment 1 For Infiniti QX56 2008 2009 2010Fitment 2 For Nissan Armada 2008 2009 2010 2011 2012 (Built Before 12/2011)Drive Type 4WDSuperseded Part Number WE60936, 1411-09858, BR930625, 102067, 432027S000, 051-6288Interchange Part Number 40202ZR40B, BHA54064, H515125, BR930829, WE61127, 750-0033Anti-lock Braking System YesPlacement on Vehicle Front Rear Left RightBolt Pattern 6 x 5.5 in (6 x 139.7 mm)Bolt Circle Diameter 5.5 in. / 139.7 mmBrake Pilot Diameter 3.54 in./ 90 mm (Front); 3.23 in. / 82 mm (Rear)Flange Bolt Hole Quantity 3 (Front); 4 (Rear)Flange Bolt Size M14x1.5 (Front); M12x1.75 (Rear)Flange Bolts Included NoFlange Diameter 6.73 in. / 171 mmFlange Offset 1.79 in./ 45.4 mm (Front); 2.22 in. / 56.5 mm (Rear)Flange Shape Triangle (Front); Modified (Rear)Spline Quantity 29 (Front); 32 (Rear)Hub Pilot Diameter 3.5 in. / 89 mmWheel Pilot Diameter 3.06 in. / 77.7 mmWheel Stud Quantity 6Wheel Stud Size M12x1.25Wheel Studs Included YesBearing Type Tapered Bearing Item SpecificsManufacturer Part Number ECP848501HKBrand ECCPPType Wheel Hub & Bearing AssemblyOE/OEM Part Number 515125, 541004Material SteelSurface Finish Polished, Rust ProtectedQuantity 4Fitment 1 For Infiniti QX56 2008 2009 2010Fitment 2 For Nissan Armada 2008 2009 2010 2011 2012 (Built Before 12/2011)Drive Type 4WDSuperseded Part Number WE60936, 1411-09858, BR930625, 102067, 432027S000, 051-6288Interchange Part Number 40202ZR40B, BHA54064, H515125, BR930829, WE61127, 750-0033Anti-lock Braking System YesPlacement on Vehicle Front Rear Left RightBolt Pattern 6 x 5.5 in (6 x 139.7 mm)Bolt Circle Diameter 5.5 in. / 139.7 mmBrake Pilot Diameter 3.54 in./ 90 mm (Front); 3.23 in. / 82 mm (Rear)Flange Bolt Hole Quantity 3 (Front); 4 (Rear)Flange Bolt Size M14x1.5 (Front); M12x1.75 (Rear)Flange Bolts Included NoFlange Diameter 6.73 in. / 171 mmFlange Offset 1.79 in./ 45.4 mm (Front); 2.22 in. / 56.5 mm (Rear)Flange Shape Triangle (Front); Modified (Rear)Spline Quantity 29 (Front); 32 (Rear)Hub Pilot Diameter 3.5 in. / 89 mmWheel Pilot Diameter 3.06 in. / 77.7 mmWheel Stud Quantity 6Wheel Stud Size M12x1.25Wheel Studs Included YesBearing Type Tapered Bearing

• We accept all payment

​

• InternationalBuyers PleaseNote:
4 Pcs Front Rear Wheel Hub Bearings Assembly For For Nissan Armada 4WD 2008-2012

Product Features:

• Fits LH (Driver Side) & RH (Passenger Side)Front + Rear
• Fits 6 LugsWheels
• Wheel studs already installed
• ABS Type: Sensor Wire
• Drive Type: 4WD

Item Description:

• Brand New Wheel Hub Assembly
• Direct replacement
• Built to strict quality control standards
• Replaces dealer part numbers:515125, 40202ZR40A, 40202ZR40B, BHA54064, H515125, 533020, SP500703, BR930829, WE61127, WA515125, 750-0033,541004, WE60936, 1411-09858, 750-0300, AX41004, WA541004, BR930625, SP500702, SK541004, 051-6288, H541004, 532004, BHA54334, 102067, 432027S000

Vehicle Fitment:

• Fits Infiniti QX56 2008-2010 4WD
• Fits Nissan Armada 2008-2012 4WD | Plug In ABS Style |Built Before 12/2011

Package Include:

• (2) Front Wheel Hub Bearings - 515125
• (2) Rear Wheel Hub Bearings - 541004

Exploded View:

1. Wheel hub and bearing
2. Cotter pin
3. Nut retainer
4. Wheel hub lock nut
5. Hub bolt
6. Splash guard
7. Steering
8. Remove the bolt (1) and separate the front wheel sensor from the steering knuckle.?
9. Remove brake caliper torque member bolts, leaving brake hose attached, reposition the caliper aside with wire.
10. Put alignment marks (A) on disc brake rotor and wheel hub and bearing. Remove disc brake rotor.
11. Remove cotter pin and the nut retainer,Loosen the wheel hub lock nut from the drive shaft using power tool.
12. Using a piece of wood and a suitable tool, tap on the lock nut to disengage the drive shaft from the wheel hub and bearing.
13. Remove the engine side cover.
14. Remove the lower nut and bolt from the steering knuckle,Separate transverse link from steering knuckle.
15. Separate drive shaft from wheel hub and bearing, Reposition the drive shaft aside with wire.
16. Remove the wheel hub and bearing bolts using power tool.
17. Remove the splash guard and the wheel hub and bearing from the steering
18. Failure to separate the front wheel sensor from the steering knuckle may result in damage to the front wheel sensor;
19. Pull out the front wheel sensor, being careful to turn it as little as possible.
20. Do not pull on wheel after removel : Check components for deformationy,cracksy,and other damagey,and boots of transverse link ball joint for cracksy,axial end play,and swing is in the reverse order of the
21. Do not reuse the wheel stud.
22. Do not reuse the cotter pin.
23. Place a washer (A) as shown to install the wheel studs (1) by using the tightening force of the nut (B).
24. Clean the mating surfaces of the joint sub-assembly and the wheel hub and bearing. Apply lubricant to the surface (A) of the joint sub-assembly.
25. Hold the wheel hub and bearing using a suitable tool. Tighten the wheel hub lock nut

6. Since the drive shaft is assembled by press-fitting, use a torque wrench to tighten the wheel hub lock nut. Do not use a power tool.

7. Too much torque causes axle noise. Too little torque causes wheel bearing looseness. Tighten the wheel hub lock nut to the specification.

8. When installing a the cotter pin (1) and the nut retainer (2), securely bend the cotter pin to prevent rattles.

9. Align the matching marks (A) on the disc brake rotor and on the wheel hub and bearing.

Item SpecificsManufacturer Part Number :ECP848501HKBrand :ECCPPType :Wheel Hub & Bearing AssemblyOE/OEM Part Number :515125, 541004Material :SteelSurface Finish :Polished, Rust ProtectedQuantity :4Fitment 1 :For Infiniti QX56 2008 2009 2010Fitment 2 :For Nissan Armada 2008 2009 2010 2011 2012 (Built Before 12/2011)Drive Type :4WDSuperseded Part Number :WE60936, 1411-09858, BR930625, 102067, 432027S000, 051-6288Interchange Part Number :40202ZR40B, BHA54064, H515125, BR930829, WE61127, 750-0033Anti-lock Braking System :YesPlacement on Vehicle :Front Rear Left RightBolt Pattern :6 x 5.5 in (6 x 139.7 mm)Bolt Circle Diameter :5.5 in. / 139.7 mmBrake Pilot Diameter :3.54 in./ 90 mm (Front); 3.23 in. / 82 mm (Rear)Flange Bolt Hole Quantity :3 (Front); 4 (Rear)Flange Bolt Size :M14x1.5 (Front); M12x1.75 (Rear)Flange Bolts Included :NoFlange Diameter :6.73 in. / 171 mmFlange Offset :1.79 in./ 45.4 mm (Front); 2.22 in. / 56.5 mm (Rear)Flange Shape :Triangle (Front); Modified (Rear)Spline Quantity :29 (Front); 32 (Rear)Hub Pilot Diameter :3.5 in. / 89 mmWheel Pilot Diameter :3.06 in. / 77.7 mmWheel Stud Quantity :6Wheel Stud Size :M12x1.25Wheel Studs Included :YesBearing Type :Tapered Bearing Item SpecificsManufacturer Part Number ECP848501HKBrand ECCPPType Wheel Hub & Bearing AssemblyOE/OEM Part Number 515125, 541004Material SteelSurface Finish Polished, Rust ProtectedQuantity 4Fitment 1 For Infiniti QX56 2008 2009 2010Fitment 2 For Nissan Armada 2008 2009 2010 2011 2012 (Built Before 12/2011)Drive Type 4WDSuperseded Part Number WE60936, 1411-09858, BR930625, 102067, 432027S000, 051-6288Interchange Part Number 40202ZR40B, BHA54064, H515125, BR930829, WE61127, 750-0033Anti-lock Braking System YesPlacement on Vehicle Front Rear Left RightBolt Pattern 6 x 5.5 in (6 x 139.7 mm)Bolt Circle Diameter 5.5 in. / 139.7 mmBrake Pilot Diameter 3.54 in./ 90 mm (Front); 3.23 in. / 82 mm (Rear)Flange Bolt Hole Quantity 3 (Front); 4 (Rear)Flange Bolt Size M14x1.5 (Front); M12x1.75 (Rear)Flange Bolts Included NoFlange Diameter 6.73 in. / 171 mmFlange Offset 1.79 in./ 45.4 mm (Front); 2.22 in. / 56.5 mm (Rear)Flange Shape Triangle (Front); Modified (Rear)Spline Quantity 29 (Front); 32 (Rear)Hub Pilot Diameter 3.5 in. / 89 mmWheel Pilot Diameter 3.06 in. / 77.7 mmWheel Stud Quantity 6Wheel Stud Size M12x1.25Wheel Studs Included YesBearing Type Tapered Bearing
