4 Stage Desiccant Air Drying System 3/4"NPT Remove Moisture for Plasma Cutting For Sale

Product description3/4" NPT Heavy Duty Industrial Grade 4 Stage Air Drying System, Particulate Filter, Coalescing Filter, Desiccant Dryer & Air Regulator - for Plasma Cutter, Paint Spray

• 【Industrial Performance】The air drying system features two robust 3/4" NPT air ports and a 1/4" NPT gauge port, Double drying system handling high-pressure environments (up to 240 PSI) for various industrial applications.(Do not Install Horizontally)


• 【Stage 1 & 2 Regulator/Filter】: (5 Micron Filter) Removes 95% of particles and moisture.(No main unit replacement required) (If excessive moisture exists in pipelines before installation, repeatedly replace desiccant beads to remove moisture.)
• 【Stage 3 Separator Filter】: (0.01 Micron Coalescing Filter) Removes 99.98% of remaining moisture and impurities. The top-positioned viewing window indicator shows when filter replacement is needed.

• 【Stage 4 Dryer】: The drying system filled with desiccant beads absorbs residual moisture and contaminants in the air, ensuring clean, dry air output. When replacement is required, the desiccant beads change color from blue to pink.

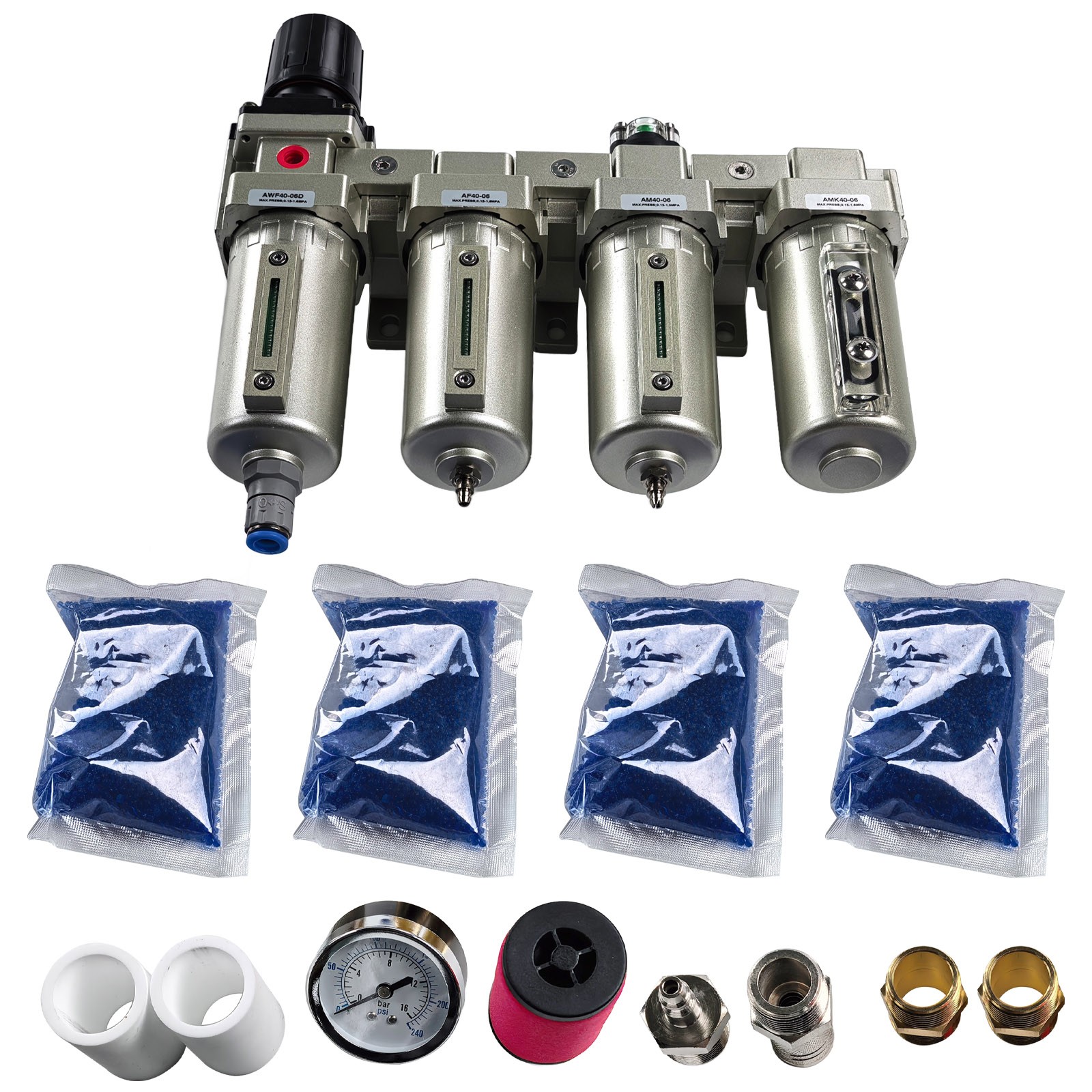

• 【Complete Package】 Arrives with everything you need for immediate operation, including a pressure gauge, air connectors, pipe fittings, replacement filter elements, desiccant beads, and thread seal tape.（To prevent air leakage: When installing screws, wrap sealing tape around the inlet size: 3/4 Aluminium

• Pressure Range: 0-240 Psi
• Operating Temperature Range: 40-140F(5-60℃)
• Tips: The startup working pressure is 30 PSI, and for the initial operation, please maintain it above 30 PSI
