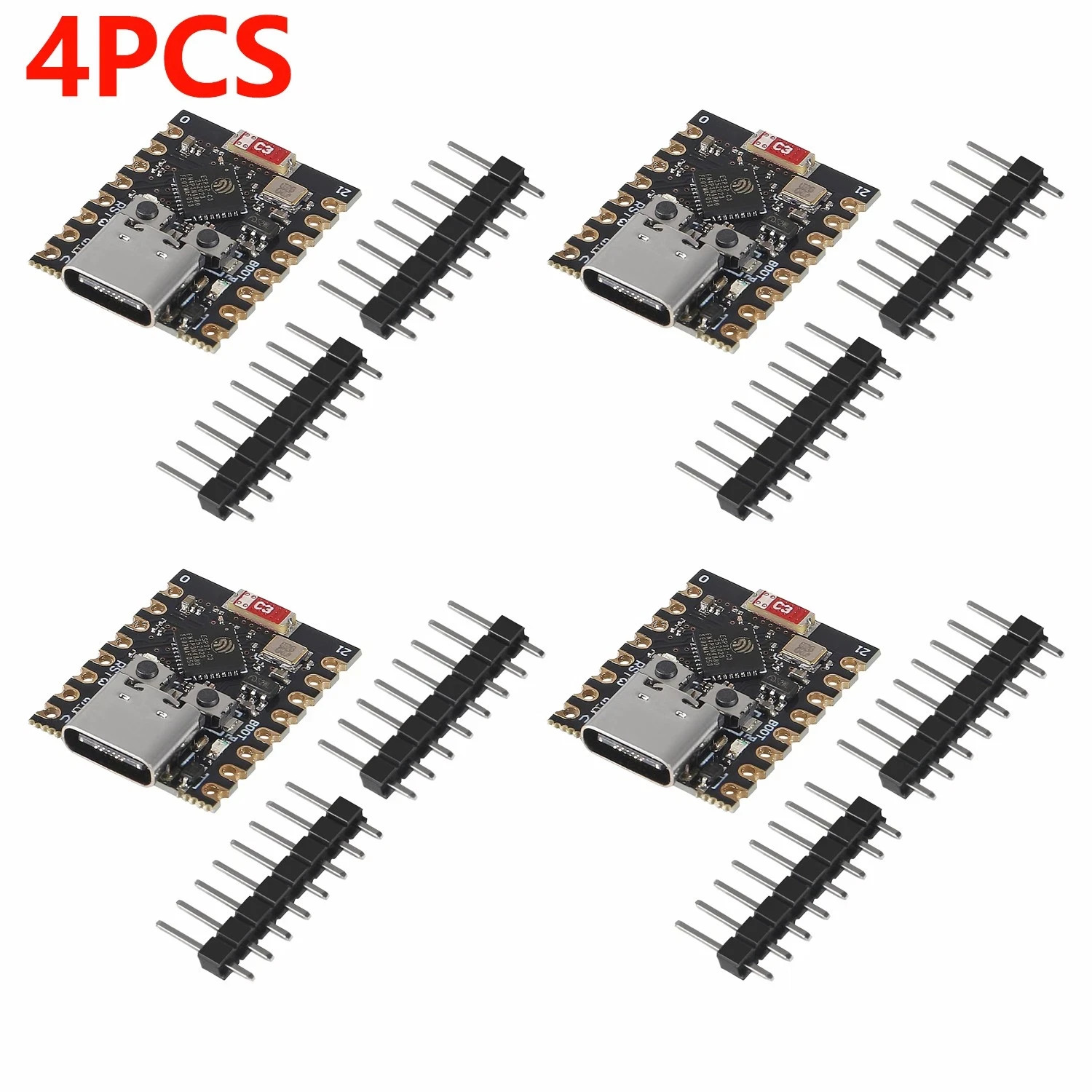

ESP32-C3 SuperMini IoT WiFi + Bluetooth Development Board ESP32-C3 SuperMini IoT Development Board
32-Bit RISC-V 160MHz CPU | WiFi 802.11 b/g/n | Bluetooth 5.0 LE | Ultra Low Power
🚚 FREE SHIPPING 💯 PROFESSIONAL SELLER 🔄 EASY RETURN POLICY 💬 24-HOUR QUICK RESPONSE
- ⚡ 32-bit RISC-V Single-Core CPU @ 160 MHz
- 📶 2.4GHz Wi-Fi (802.11b/g/n) & Bluetooth 5.0 (LE)
- 📏 Thumb-Sized Ultra-Compact Form Factor (22.52 x 18 mm)
- 🔋 Deep Sleep Mode Ultra-Low Power Draw (~43 μA)
- 🔐 Hardware Encryption (AES, RSA, Secure Boot)
- 🔌 Single-Sided Surface Mount Design for Easy SMT Integration
Product Overview
The ESP32-C3 SuperMini is a high-performance, cost-effective mini IoT development board powered by the Espressif ESP32-C3 WiFi/Bluetooth 5.0 dual-mode chip. Built around a 32-bit RISC-V CPU featuring a single-precision Floating Point Unit (FPU), it delivers powerful computing capabilities for advanced embedded logic and wireless applications.
Engineered for maximum space efficiency, this board is as small as a thumb (22.52 x 18 mm), featuring a single-sided surface mount design ideal for wearable tech, smart sensors, and miniaturized IoT projects. An external antenna port boosts RF signal performance across long distances.
Equipped with 11 digital I/O pins (all supporting PWM), 4 analog ADC pins, onboard blue LED (GPIO8), and serial protocol interfaces (UART, I2C, SPI), the ESP32-C3 SuperMini supports Station, SoftAP, and Hybrid modes with hardware security engines like AES and Secure Boot.
32-Bit RISC-V Core + FPU
Runs up to 160 MHz with a dedicated Floating Point Unit for real-time mathematical operations and responsive logic execution.
Dual-Mode Wireless Connectivity
Supports 2.4GHz IEEE 802.11 b/g/n Wi-Fi and Bluetooth 5.0 (LE) with external antenna capability for extended range.
Ultra Low Power Draw
Deep sleep power consumption as low as ~43 μA makes it ideal for battery-operated wearables and remote sensor nodes.
Rich Hardware Interfaces
Offers 11 GPIOs (PWM enabled), 4 ADC input channels, 2×UART, 1×I2C, and 1×SPI serial communications.
Hardware Security Suite
Built-in accelerators for AES-128/256, Hash, RSA, digital signature, and secure boot hardware encryption.
Ultra-Compact & SMT Ready
Measures just 22.52x18mm with single-sided components for easy surface mounting directly on user PCBs.
Technical Specifications Main MCU ChipESP32-C3 / ESP32C3FN4 Core Processor32-Bit RISC-V Single-Core @ up to 160 MHz (with FPU) Memory & Storage400KB SRAM, 384KB ROM, 4MB Flash Wi-Fi Protocol2.4 GHz IEEE 802.11 b/g/n (Station, SoftAP, Hybrid modes) Bluetooth ProtocolBluetooth 5.0 LE Deep Sleep Consumption~43 μA Digital & Analog I/O11 × GPIO (PWM), 4 × ADC Pins Serial Interfaces1 × I2C, 1 × SPI, 2 × UART Security AccelerationAES-128/256, Hash, RSA, Digital Signature, Secure Boot Onboard IndicatorsOnboard Blue LED (GPIO8 pin) Board Dimensions22.52 mm × 18 mm ControlsReset Button & Bootloader Mode Button Store Policies & Service Guarantee Return Policy
