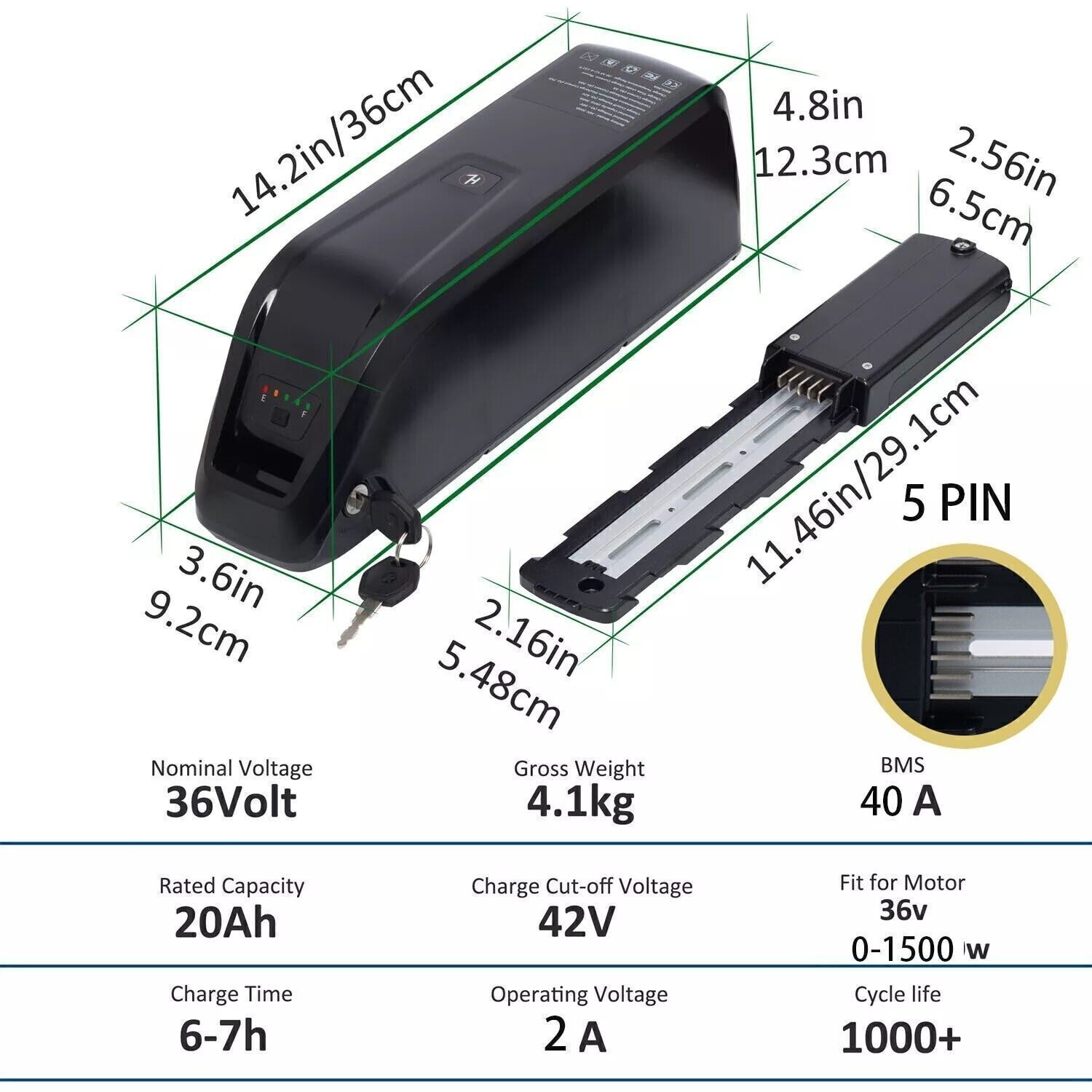

52V 48V 36V Hailong Battery 5-Pin for ≤2000W eBike Electric Bicycle Bicycle Bike For Sale

Please note before purchase:

1. What is the voltage of your bicycle? If it's 36V, buy a 36V battery. If it's 48V, buy a 48V battery. You can also tell the voltage of the battery you need from your original battery or the control
center. 10Ah,15Ah,20Ah, and 30Ah represent the battery capacity and indicate the range

2. Is the size of the battery suitable for fit into your bicycle frame

3. The interface between the battery and the base needs to be determined. We have two types of interfaces: 4-pin and 5-pin. If your original battery base is 4-pin and you don't want to
replace the base, you can purchase a 4-pin battery set. If it's a 5-pin battery base, buy a 5-pin battery because our battery set includes the base.

Of course, if you don't mind replacing the original battery base, you don't need to worry about whether the battery base is 4-pin or 5-pin, because our batteries come with battery bases

4. When charging, please connect the power supply first and then the battery

5. Do not use up all the battery power completely. It is better for the battery to charge it each time with some remaining power

6. When you receive a new battery, make sure to charge it before using it.

Select the corresponding option, and clicking on the option will display the picture of that option. The picture will show the battery parameters such as size and pin count.

Nolminal Voltage
36V 15Ah36V 20Ah48V 10Ah48V 15AhBase In kg(10.8lbs)5.5 kg(12.13lbs)4.4 kg(9.7lbs)5.8 kg(12.79lbs)Discharge style=\"font-size: medium; line-height: style=\"font-size: medium; line-height: normal;\">370*95*138mm

370*95*122mm

(14.57*3.74*4.8in)

Nolminal Voltage
48V 20Ah52V 20Ah36V 10AhBase In style=\"margin-top: 0px;\">0~1000w

Watt kg(14.99lbs)6.3kg(13.89lbs)3.75 kg(8.27lbs)Discharge style=\"font-size: medium; line-height: normal;\">370 x 95 x 138mm

(14.57 x 3.74 x 5.43in)

370 x 95 x 138mm

(14.57 x 3.74 x 5.43in)

370*95*89mm

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：30--45km

36V 15AHPower: 36V 0~1500WCapacity:15AhWatt Hours: 540WhMax Constant Discharge Current: 40A( BMS)Battery Dimensions: 370*95*122mmBattery Weight: 4.9kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：45--60km36V 20AHPower: 36V 0-1500WCapacity:20Ah
Watt Hours:720WhMax Constant Discharge Current:40A( BMS)Battery Dimensions : 370*95*138mmBattery Weight: 5.5kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：50--70km48V 10AHPower: 48V 0-1500WCapacity:10Ah
Watt Hours: 480WhMax Constant Discharge Current: 30A( BMS)Battery Dimensions: 370*95*89mmBattery Weight: 4.4kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：30--40km48V 15AHPower: 48V 0-1800WCapacity:15Ah
Watt Hours: 720WhMax Constant Discharge Current: 40A( BMS)Battery Dimensions: 370*95*122mmBattery Weight: 4.4kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：45--60km48V 20AHPower: 48V 0-1800WCapacity:20Ah
Watt Hours: 960WhMax Constant Discharge Current: 40A( BMS)Battery Dimensions: 370*95*138mmBattery Weight: 6.8kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：60--80km52V 20AHPower: 52V 0-2000WCapacity:20Ah
Watt Hours:1040WhMax Constant Discharge Current:40A( BMS)Charge Cut-off Voltage : 58.8VBattery Dimensions : 370*95*138mmBattery Weight: 6.3kg

Discharge: XT60 (Male&Female)

Battery Base: 5 Pin

Mile：70--90kmParts included:1 x Lithium Battery with ABS case(Base discharge)1 x Mounting Fixed Plate

2 x Keys

The Charger is UL 62368-1 certified and can provide documentation showing certification on request.

The Battery is UL 2849, UL 2272, UL 2271 certified and complies with UL standards (1012, 1310, 60950-1 or 62368-1) and can provide documentation showing certification on request.

The creepage distance and electrical gap distance in the charger are sufficient, the product does not pose a fire risk, will not cause components to overheat or explosion,
and the output has a fuse to protect the battery pack from overcurrent conditions. Battery charging input and output cables are also adequately protected against stress.

The plug meets the size requirements of the relevant standards, and there is no risk of electric shock to the user. The fuse complies with relevant standards and does
not pose a risk of fire or explosion in the event of failure. The product has been marked and labeled in accordance with the standards

Use only the charger provided with your micromobility device. If you do not have the charger that was provided with your device, you can contact the manufacturer
of your device for information about compatible replacement chargers. Before buying or using a replacement charger, make sure it has been tested and
approved to work safely with your device. Do not use a charger that came with another micromobility device without confirming further lower the risk of fire, take the following steps when charging your micromobility product with the correct charger:

Unplug the charger from the micromobility device when the charge cycle is complete. Do not leave the charger plugged into the device for long periods of time.

Always be present when charging micromobility products, and never charge them while you are sleeping.

Follow the manufacturer’s guidance on how often you should charge your battery if you are not regularly using your micromobility device.

Certified to Meet UL 2271 Safety Standards and can provide documentation showing certification on request.
