Product Specification:

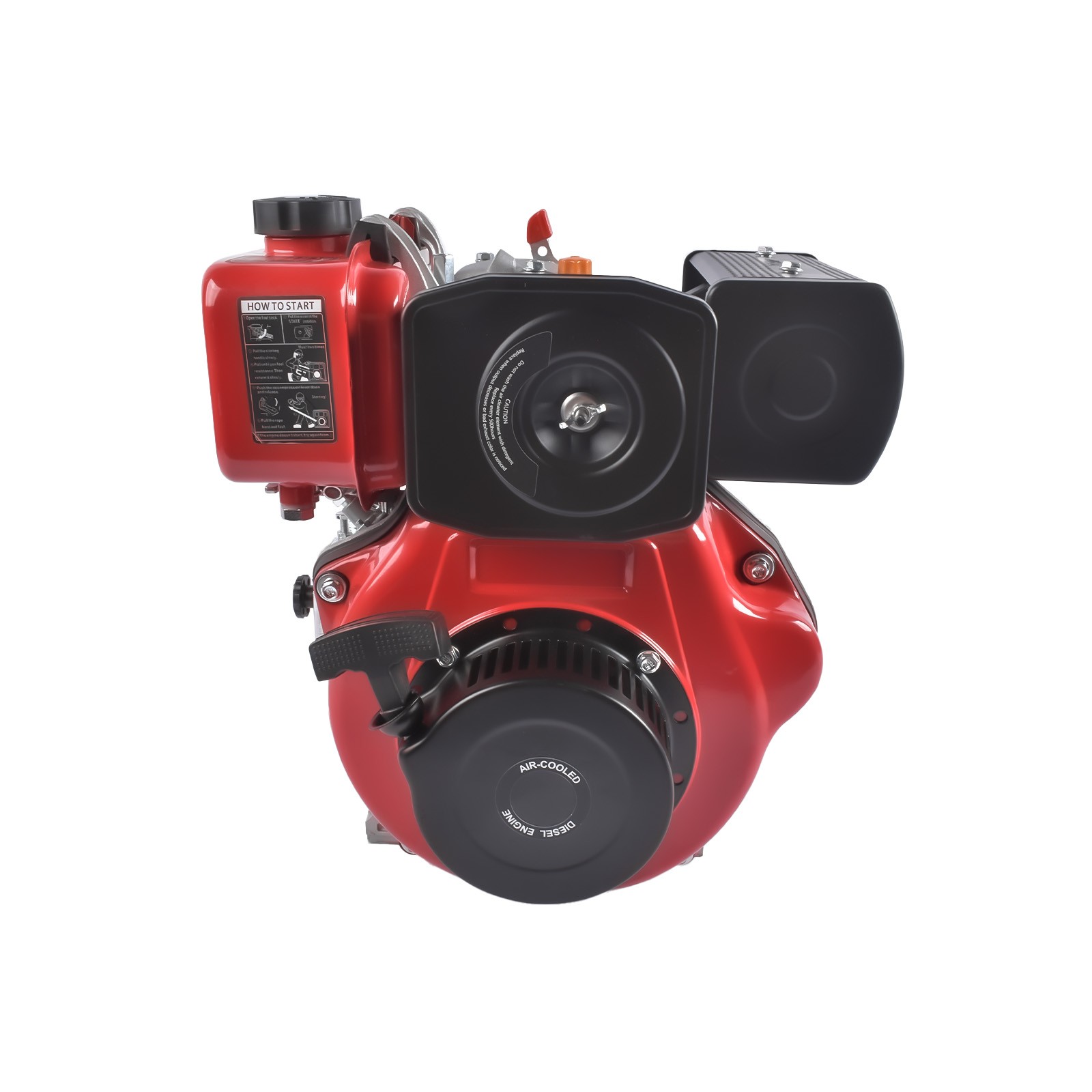

Model: 173F
Color: Red/Green/Black
Material: Iron, Die-casting Aluminum, Aluminum
Process: Spray Molding
Machine Type: Single-cylinder, Vertical, 4-stroke, Forced Air-cooled
Shaft Type: Recoil Manual Start
Crankshaft: Horizontal
Fuel Type: Diesel
Bolt Pattern: 4 Bolt
Combustion System: Direct Injection
Lubrication Mode: Pressure and Splash Compound Method
Power: 3.6kw, 5hp
Rotation Speed: 3600rpm
Displacement: 247cc
Fuel Tank Capacity: 2.5L/0.66Gal
Displacement: 0.247 L (0.06gal)
Rotation Direction: Counter-clockwise (Facing the Output Shaft)
Cooling Mode: Air Cooling
Lubrication Mode: Pressure Splash Compound Type
Fuel Consumption Rate: ≤ 280g / (kW. H)
Oil Consumption Rate: ≤ 2.5g / (kW. H)
Cylinder Diameter x Stroke: 73x59mm (2.95x2.32 inch)
Product Size: 33.5x38x41.5cm (13.2x14.96x16.3 inch)
Package Size: 52x48x4cm (20.47x18.9x1.57 inch)
Net Weight: 27kg (59.5 lbs)
Package Included：
1* Diesel Engine
1*English Manual
1*A set of tools
NOTE:
1.Please read the operating manual completely before use. And pay particular attention to the safety instructions included.
2.Please use the specified diesel and guarantee the diesel is clean. Please use different lubricating oils for different seasons and keep the oil quantity within the specified range.
3.Please don’t run the engine when it exhausts black smoke.
4.When using the air filter, remove the air filter element every 50 hours (if there is much dust, remove it every 10 hours, clean it with clean detergent, blow it dry, and then put it into use).
5.Please allow the slight color difference caused by the shooting chandelier and the 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
6.Read carefully before operation
①Refill and engine oil in the shutdown state
②Replace the filter every 500 hours
③Change the oil every 100 hours
(CD level or SAE 10W30 in winter/15W40 in summer)
④Clean the oil filter every 100 hours
⑤Check the oil and fuel level before starting
⑥Turn off the fuel switch after shutdown
In order for the engine to work stably for a long time and prolong its service life, it must be run for more than 10 hours under half load
7.Start steps:
①Turn on the fuel switch
②Speed control handle to running state
③Gently pull the starting handle until you feel resistance, and then put back the starting handle
④Press the decompression handle
⑤Pull the starter handle fully (the British stop pulling when the pulling wire is fully pulled out)
If the engine does not start, repeat step ③④⑤
