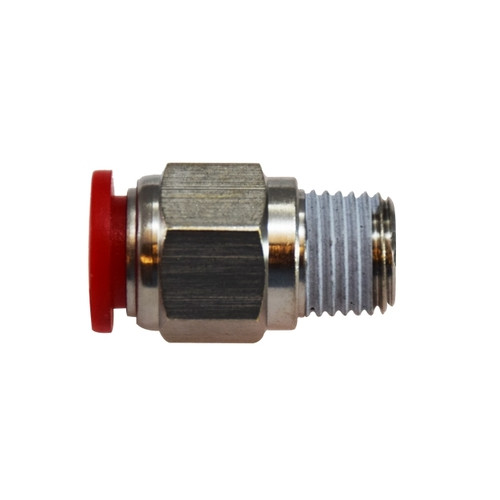

6MM X 1/4" BSPT Outside Diameter Male Adapter 20633 (Pack Of 10) Specifications:
TUBE OD MM :6SHAPE :Straight/ConnectorBSPT THREAD:1/4"WEIGHT :0.02 LbsDescription :6MM X 1/4" BSPT Outside Diameter Male Adapter
Operating Range:
1.Pressure:0 to 220 PSI (15 bar)
2. Vacuum:0 to 29hg (-.99 bar)
Temperature:
-50 F to + 1750 F (-200 C to + 800 C)
Media:
Compressed air, Non-toxic fluids (water)
Materials :
The latest generation of composite material is used in the body construction inaddition to nickel-plated brass on threaded components and stainless steel on thetube gripper.
Materials of Construction:
1 Body: Nickel Plated Brass
2 Tube Release:Acetal Resin
3 Retainer:Nickel Plated Brass
4 Gripper Ring:Stainless Steel
5 Spacer: Composite
6 O-Ring:NBR 70
7 Thread Seal:NBR 70
8 Thread Packaging: NBR 70
