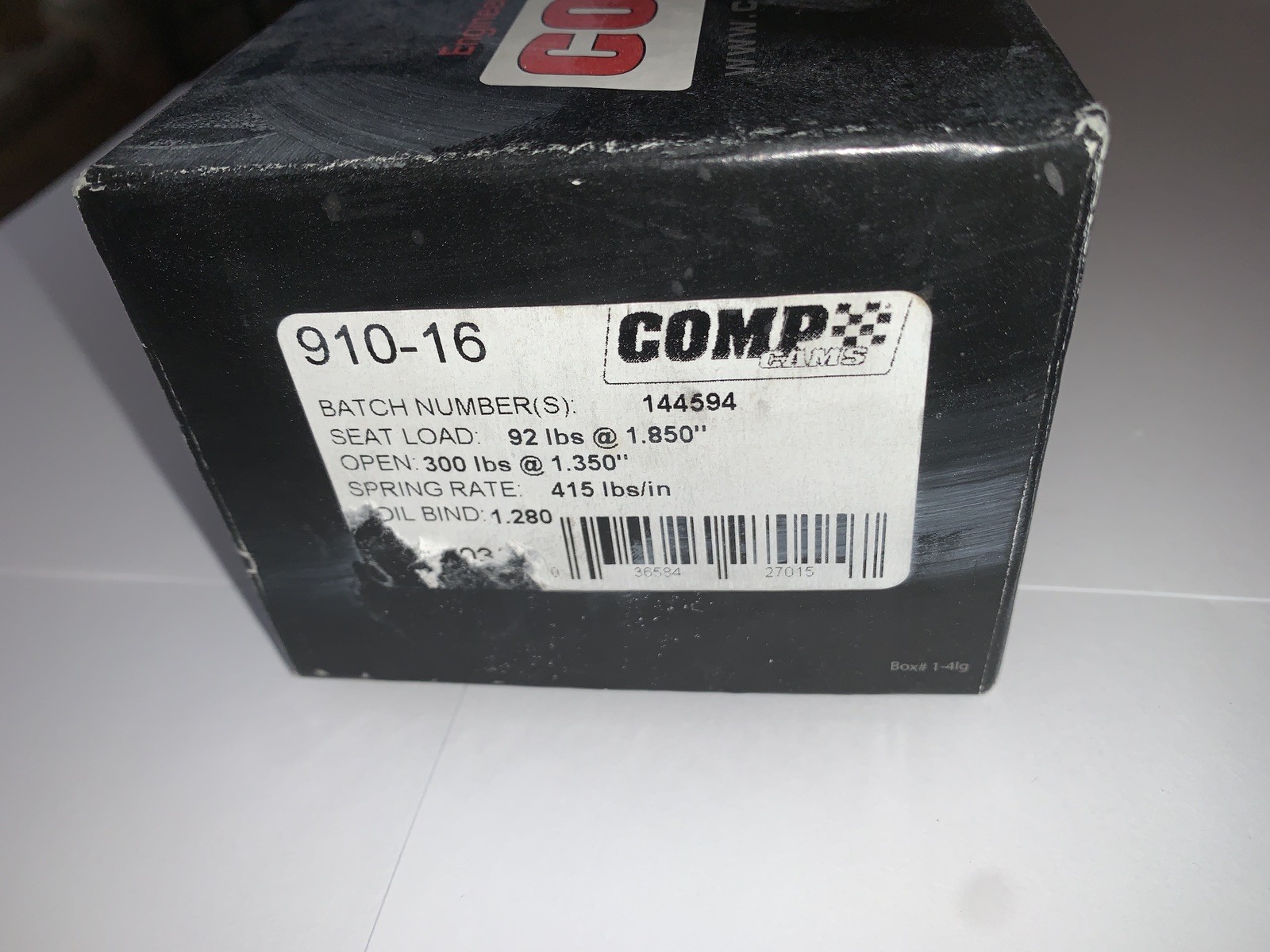

910-16 Comp Cams Valve Springs Set Single with Damper 380 lb Rate 16 SpringsFit 6.9, 7.3 IDI, 7.3 IDI Turbo Diesel EnginesHelps prevent valve float if using high boost.Single Outer Spring with DamperAlso Have comp Cams Spring Shims AvailableCOMP Cams 910-16 SpecificationsSpring Style: Single spring with inner damper
Outside Diameter: 1.354 in
Inside Diameter (Outer Spring): 0.930 in
Seat Pressure: 94 lbs @ 1.850 in installed height
Open Pressure / Max Lift: ~300+ lbs / 0.510 in max lift
Spring Rate: 380–458 lbs/in
Coil Bind Height: 1.280 in
