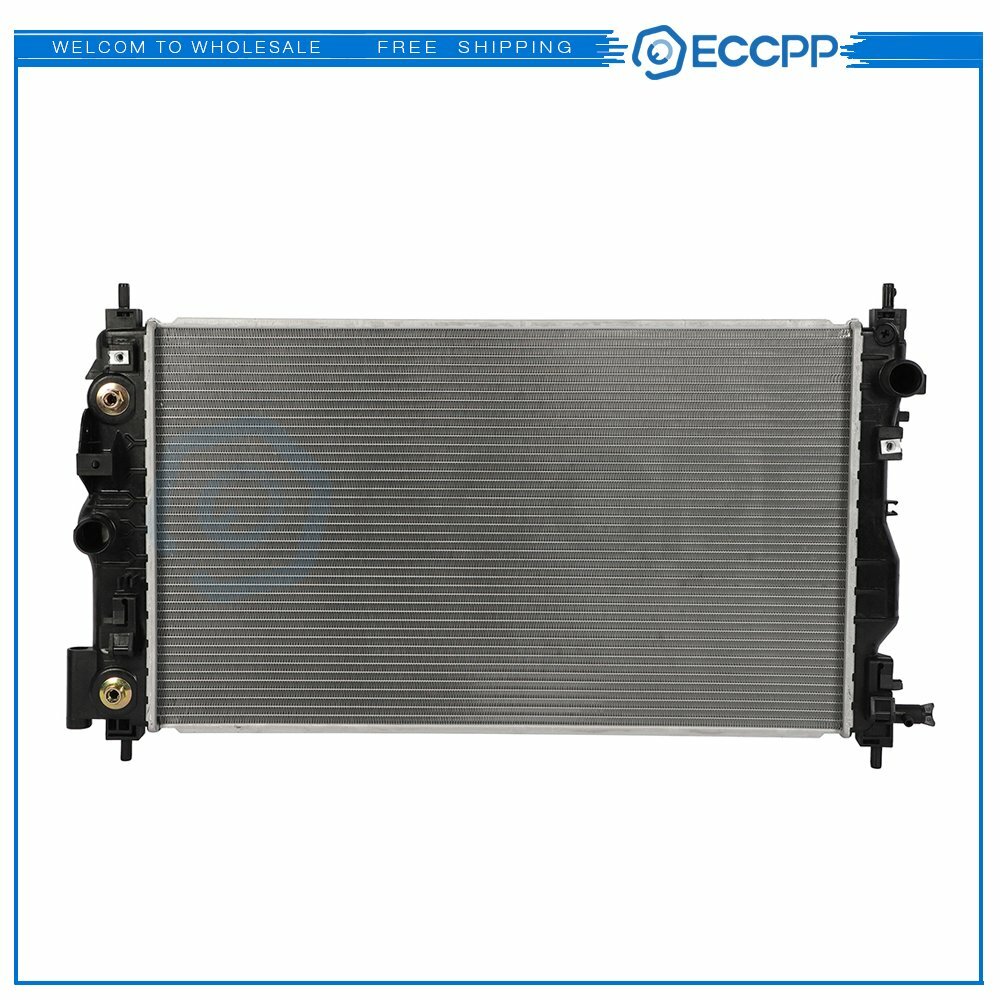

Compatibility:2014-2020 Chevrolet Impala2014-2016 Chevrolet Impala Limited2013-2014 Chevrolet Malibu2010 Buick Allure2010-2016 Buick LaCrosse2011-2017 Buick design to ensure exact fit, form and function for an easy drop-in installation;-Built with high density multi-lowered fins for maximum cooling efficiency;-ISO 9001 certified manufacturing plants;-Direct Replacement;-Improve Cooling Efficiency;-100% Leak Tested;-Plastic tanks with aluminum core;-Built to strict quality control standards;How to clean radiator: Aluminum Radiator For 2014-2020 Chevrolet Impala 2013-2014 Chevrolet Malibu
Compatibility:
2014-2020 Chevrolet Impala
2014-2016 Chevrolet Impala Limited
2013-2014 Chevrolet Malibu
2010 Buick Allure
2010-2016 Buick LaCrosse
2011-2017 Buick Regal
Features:
-OE design to ensure exact fit, form and function for an easy drop-in installation;
-Built with high density multi-lowered fins for maximum cooling efficiency;
-ISO 9001 certified manufacturing plants;
-Direct Replacement;
-Improve Cooling Efficiency;
-100% Leak Tested;
-Plastic tanks with aluminum core;
-Built to strict quality control standards;
How to clean radiator:
1.Start the vehicle, to rise to normal temperature. Slowly open the tank cover, the fluid shake fromthetank after filling the mouth, the cleaner can be mixed with any brand of coolant. Idle running not less than 15 minutes, not cleaning vehicles not less than 30 minutes for two years. And then discharge coolant, flush water tank, until out of clear water, suitable for any water cycle system.
2.After cleaning, after waiting for pipeline rehabilitation add fluid to water tank, and inject new coolant and water purification.
How to replace the radiator:
1.Disconnect the battery.
2.Drain the radiator fluid into a suitable container.
3.Remove the old radiator:
-Take off any plastic covers around the radiator.
-Disconnect the electrical connector to the fan, and unbolt and remove the fan assembly.
-Disconnect the radiator hoses from the radiator.
-Disconnect the transmission cooling lines from the bottom of the radiator.
-Remove any clamps, brackets, or screws holding the radiator inside its frame.
-Lift the radiator up and out of the car.
4.Install the new radiator:
-Slide the new radiator into place.
-Connect any clamps or brackets that hold the radiator in place.
-Connect the transmission cooling lines carefully.
-Connect the engine cooling hoses to the radiator.
-Replace the fan and fan shroud.
-Reconnect the fan electrical connection.
-Replace the plastic covers.
5.Fill the radiator with fluid.
6.Check your work to make sure that there are no leaks.
(Tools need to be prepared: Screwdrivers, Wrenches, Drain pan)
Note: Do please keep children and pets away when replacing the operation, the vehicle normal temperature 60 to 80 degrees.
2.Add detergent if the tank is too full can take some brand new radiator
Item SpecificsBrand ECCPPManufacturer Part Number E164618CPWarranty 1 YearInterchange Part Number CU13146,Engine Rad,Replacement Radiator,0.63in.Core ThicknessCustom Bundle NoModified Item NoFitment Type Direct ReplacementPlacement on Vehicle FrontType RadiatorMaterial AluminumCore Material AluminumTank Material PlasticQuantity 1PC RadiatorCore Length 26.78in.Core Height 15.67in.Core Thickness 0.63in.Inlet Diameter 1 5/16in.Outlet Diameter 1 5/16in.Other Part Number RAD13146,engine radiator,new,cooling radiator,air radiatorSuperseded Part Number Cap As Picture showsStyle CrossflowRow Count 1 RowEngine Oil Cooler Included NoColor Black or SilverNotes 1 Please verify the item fits your vehicle or not by compatibilitynotes 2 notes：w/ Police Package Item SpecificsBrand ECCPPManufacturer Part Number E164618CPWarranty 1 YearInterchange Part Number CU13146,Engine Rad,Replacement Radiator,0.63in.Core ThicknessCustom Bundle NoModified Item NoFitment Type Direct ReplacementPlacement on Vehicle FrontType RadiatorMaterial AluminumCore Material AluminumTank Material PlasticQuantity 1PC RadiatorCore Length 26.78in.Core Height 15.67in.Core Thickness 0.63in.Inlet Diameter 1 5/16in.Outlet Diameter 1 5/16in.Other Part Number RAD13146,engine radiator,new,cooling radiator,air radiatorSuperseded Part Number Cap As Picture showsStyle CrossflowRow Count 1 RowEngine Oil Cooler Included NoColor Black or SilverNotes 1 Please verify the item fits your vehicle or not by compatibilitynotes 2 notes：w/ Police Package
