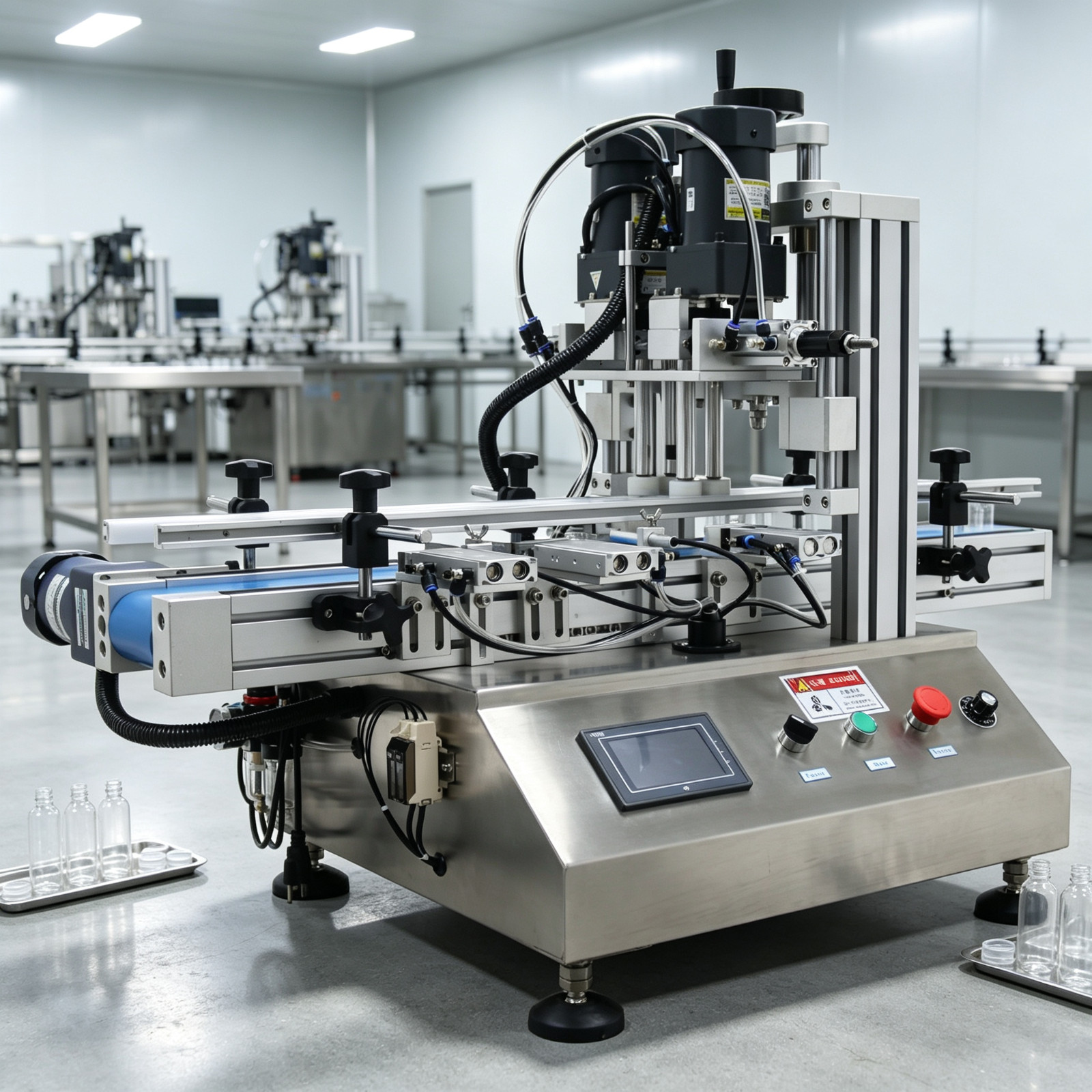

Automatic Desktop Conveyor Bottle Capping Machine · Technical Specs Automatic Desktop Conveyor Bottle Capping Machine
Industrial Cap Sealing Machine
The machine is beautiful and elegant in appearance, smart, fast in capping speed, high in qualification rate, and suitable for capping different bottle shapes in food, pharmaceutical, daily chemical, pesticide, cosmetics and other industries.
The design of the machine is novel and unique, and the operation and adjustment are very convenient. The operator only needs to put the bottle cap on the bottle mouth. The bottle cap is automatically tightened by the cap rubbing wheel during the bottle moving forward.
It can be used for both stand-alone production and online production.
Note that the air pressure should reach 0.6MPa to work normally. Please ensure the air pressure of the air pump when working.
(Note:We only sell machines, do not match air compressors,
customers need to buy their own.)
Product Parameters Voltage:110V/60Hz Material:The surface is stainless steel Linear speed of conveyor belt:0-0.7m/min Production speed:20~60bot/min Capping torque：3~8N.m Product size (Exterior sizes):23.6\"x21.65\"x42.1\" (60x55x107cm) Bottle height：50~190mm Bottle diameter：30~100mm Adaptive bottle cap diameter：20~60mm Applicable pressure (Mpa):≥0.6 Product Analysis
1. Conveyor belt
2. Fiber amplifier
3. Touchable display
4. power switch
5. Start switch
6. Emergency stop switch
7. Conveyor speed controller
8. Bottle holder
9. Adjusting cylinder of cover rubbing wheel
10. Gantry frame of capping machine
11. Height adjusting handwheel of capping machine
12. Capping machine
13. Guard adjuster
14. guardrail
15. Conveyor belt motor
16. Cover rubbing wheel
17. Gland head
18. Bottle divider
Feature The height adjustment handwheel of the capping machine can adjust the appropriate height of the capping machine according to the height of the bottle. The working height can be adjusted by the black handle, which is simple and convenient. One machine can adjust various heights. This machine adopts high-quality motor with stable performance. The bottle separation sensing optical fiber is used for bottle separation. When a bottle is detected, the bottle separator baffle will block the remaining bottles until the first bottle completes the capping, and work in turn. Intelligent touch operation panel, intuitive data, simple operation, and can adjust parameters at any time as required. Guardrail adjuster — Customers can adjust the distance between guardrails according to the diameter of the bottle. Customers can adjust the conveying speed of the conveyor belt according to their own needs. The machine is equipped with an emergency stop switch, which can stop all work with one click in case of any emergency. The barometer and the air inlet, the air inlet is connected with the air compressor, easy to operate, stable performance. Customers can adjust the position of the optical fiber by adjusting these screws, which has a wider range of applications. This machine is equipped with a fiber optic amplifier, which can be adjusted by adjusting the fiber optic amplifier when the photosensitive eye cannot sense the product well. The grinding wheel head can be replaced. If the grinding wheel head wears out after a period of use, this accessory can be replaced (you can purchase this accessory from us). Belt conveyor belt. It can automatically transport products, saving time and labor. Product Safety Precautions
To ensure safe production, please read the following precautions carefully:
1. Use a power supply and air source that conforms to the requirements of this machine. The stability of the air source must be maintained under continuous working conditions.
2. After the power switch is turned off, there is still voltage in some circuits in the electrical control of this machine. When repairing the control circuit, please be sure to unplug the power cord.
3. Do not put your hands on the capping wheel and the capping head when working, and pay attention to personal safety.
4. When there is a problem with the machine, press the emergency stop button directly to suspend all work.
Operation Steps
1. Pre-startup Preparation: Check 110V power supply stability; ensure air pressure reaches 0.6MPa (use user-provided air compressor if needed); check conveyor belt, bottle separator, and bottle-holder for foreign objects, ensuring flexible operation.
2. Parameter Presetting: Power on, enter touch screen settings to preset bottle separation time, holding delay, capping time (based on bottle size and production needs); adjust conveyor belt speed via knob.
3. Device Startup: Click \"RUN\" on the touch screen to start automatic operation; conveyor belt runs.
4. Loading Operation: Place capped bottles neatly on the conveyor belt (no tilting/stacking); bottles are separated by the bottle separator and enter the capping area sequentially.
5. Real-time Monitoring: Observe operation; pause if bottles tilt/fall or caps are loose, restart after adjusting parameters/components.
6. Shutdown Operation: Click \"STOP\" after production; turn off power once conveyor belt stops; clean the device surface and conveyor belt, check for wear/loose parts.
Details
Note: Due to different production batches, machines may vary slightly in power cord position and screen style (shipped randomly), but their functions remain identical.
Item Included (160357) Automatic desktop conveyor capping machine x1
Accessory box x1
