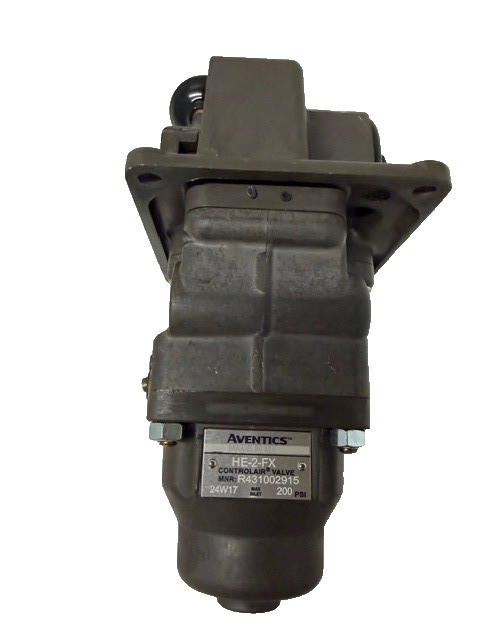

The HE-2 CONTROLAIR Valve is a composite lever operated directional valve consisting of a 3-way directional valve and a 3-way pressure regulating portion with each unit having its own OUT port.
Pressure 0 -150 PSI
The first 10° of lever travel from the "Off" position opens the directional valve to provide full inlet pressure for its OUT port. Further lever-travel controls the pressure of the air delivered by the pressure regulating portion. This graduated pressure varies directly with lever travel.
These valves areused principally in the control of a clutch and a throttle of an engine.
PIPE CONNECTIONS
Port 1-OUT, full inlet pressure when lever is moved 10° clockwise from "Off" (facing lever side of valve).
Port 2-IN pressure.
Port 8-OUT, graduated pressure when lever is moved clockwise from "Off."
Lever remains in the position where released. Holding friction is adjustable.
P 051612-4P 51612-4P051612-4P51612-0004P51612-4
