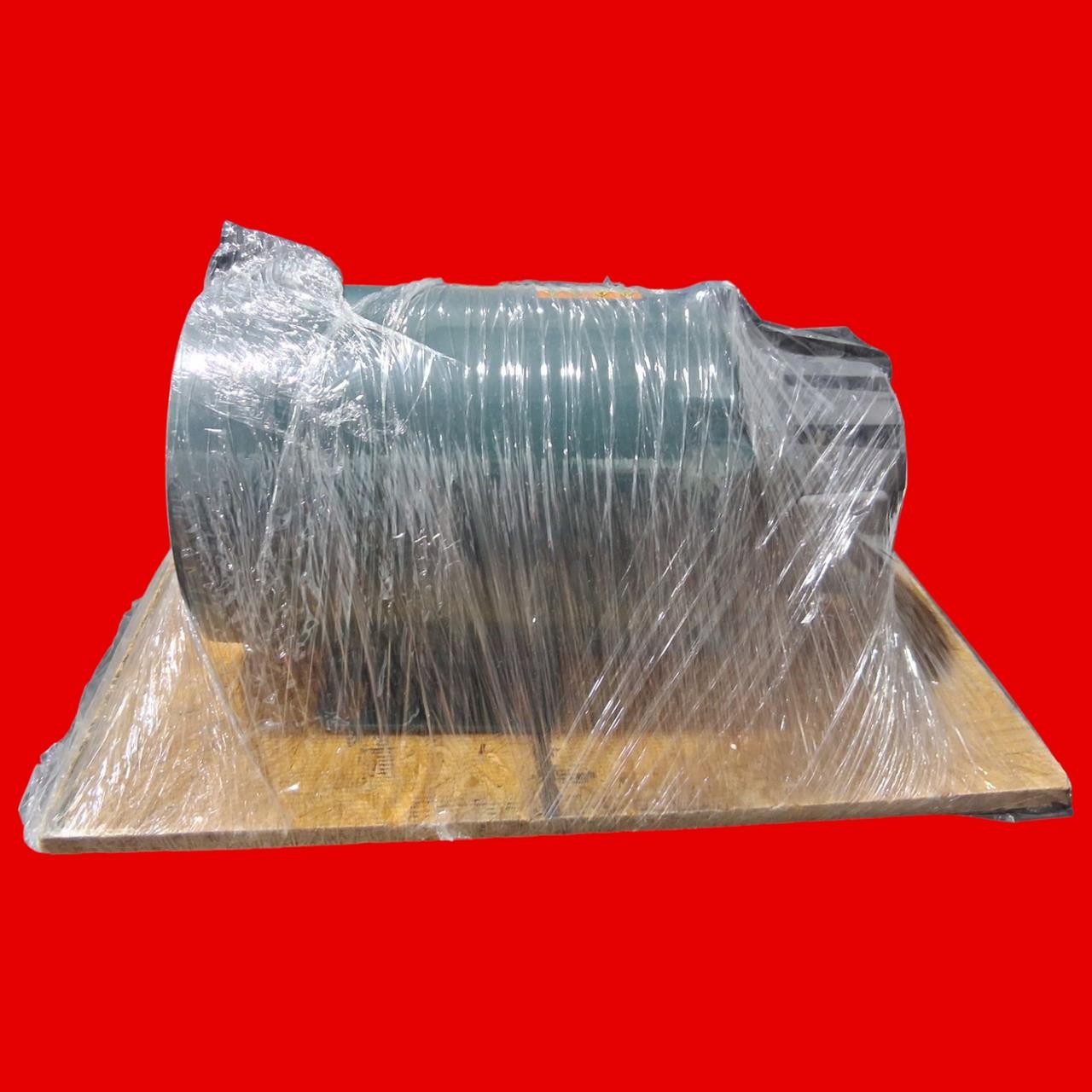

Baldor Reliance IDVSNM3538 .5HP, 1775RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1 For Sale

Baldor Reliance IDVSNM3538 .5HP, 1775RPM, 3PH, 60HZ, 56C, 3514M, TENV, F1 Inverter Drive Motor

Cat. #: IDVSNM3538

• Enclosure: TENV
• Frame: 56C
• Frame Material: Steel
• Frequency: 60.00 Hz
• Motor Letter Type: Three Phase
• Output @ Frequency: .500 HP @ 60 HZ
• Phase: 3
• Synchronous Speed @ Frequency: 1800 RPM @ 60 HZ
• Voltage @ Frequency: 230.0 V @ 60 HZ/ 460.0 V @ 60 HZ
• Haz Area Class and Group: None
• Haz Area Division: Not Applicable
• Agency Approvals: UR, CSA
• Ambient Temperature: 40 °C
• Auxiliary Box NO AUXILLARY BOX
• Auxiliary Box Lead Termination: None
• Base Indicator: Rigid
• Bearing Grease Type: Polyrex EM (-20F +300F)
• Blower: None
• Current @ Voltage: 1.000 A @ 460.0 V/ 2.000 A @ 230.0 V
• Design Code: B
• Drip Cover: No Drip Cover
• Duty Rating: CONT
• Efficiency @ 100% Load: 81.5 %
• Electrically Isolated Bearing: Not Electrically Isolated
• response Device: NO response
• High Voltage Full Load Amps: 1.0 a
• Front Face Code Encoder/response Device
• Front Shaft Indicator: None
• Heater Indicator: No Heater
• Insulation Class: F
• Inverter Code: Inverter Duty
• KVA Code: P
• Lifting Lugs: No Lifting Lugs
• Locked Bearing Indicator: Locked Bearing
• Max Speed: 6000 rpm
• Motor Lead Exit: Ko Box
• Motor Lead Termination: Flying Leads
• Motor Lead Quantity/Wire Size: 9 @ 18 AWG
• Motor Type: 3514M
• Mounting Arrangement: F1
• Number of Poles: 4
• Overall Length: 13.84 IN
• Power Factor: 58
• Product Family: General Purpose
• Pulley End Bearing Type: Ball
• Pulley Face Code: C-Face
• Pulley Shaft Indicator: Standard
• Rodent Screen: None
• RoHS Status: ROHS NON-COMPLIANT
• Service Factor: 1.00
• Shaft Diameter: 0.625 IN
• Shaft Extension Location: Pulley End
• Shaft Ground Indicator: No Shaft Grounding
• Shaft Rotation: Reversible
• Shaft Slinger Indicator: No Slinger
• Speed: 1775 rpm
• Speed Code: Single Speed
• Motor Standards: NEMA
• Starting Method: Direct on line
• Thermal Device - Bearing: None
• Thermal Device - Winding: Normally Closed Thermostat
• Vibration Sensor Indicator: No Vibration Sensor
• Winding Thermal 1: None
• Winding Thermal 2: None
