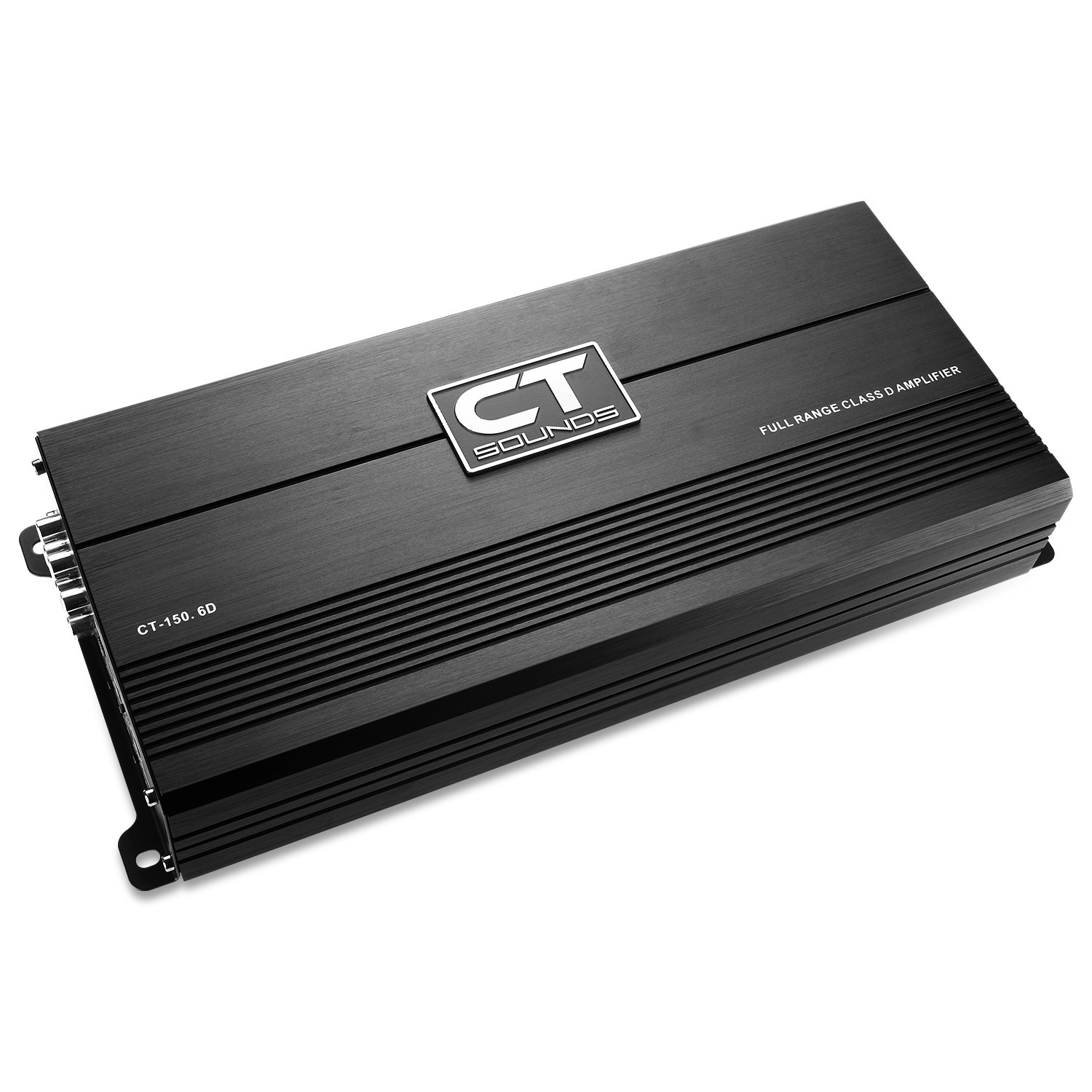

Contact Us response Add to Favorites Store Home CT Sounds CT-150.6D 1500W RMS Full-Range Class D 6-Channel Car Amplifier
Details
CT Sounds designed the CT-150.6D full-range 6-channel amplifier for people who want to power an entire system from a single compact unit. You can run a front component set and a rear coaxial set with each speaker on its own dedicated channel, then bridge CH5-6 for 520W RMS at 4-ohm to drive a single dual 2-ohm subwoofer wired to 4-ohm, or a pair of dual 4-ohm subwoofers wired to 4-ohm. And if you prefer to add super tweeters instead of subs, CH5-6 are perfect for that as well.
Quick Facts: RMS Power: 2Ω @ 14.4v 230W x 6-Ch RMS Power: 4Ω @ 14.4v 150W x 6-Ch RMS Power: 4Ω @ 14.4v (Bridged) 520W x 2-Ch Recommended Fuse: 150A
This multi-channel amplifier features selectable high pass, low pass, and full range modes on CH1-2, CH3-4, and CH5-6, giving you the flexibility to tailor your system. The “HPF” blocks frequencies below its set level, the “LPF” blocks frequencies above, and “FULL” plays the entire band. For example, set the HPF when running midrange speakers and tweeters, use full range mode for component speakers, or select low pass when running a dual 2-ohm subwoofer at 4-ohm bridged.
The amplifier also includes 4-way protection: high voltage, low voltage, overcurrent, and temperature. Plus, a reverse polarity diode - if the power and ground are connected incorrectly, the diode will blow to shield the circuit, and once removed, the amplifier will function again, giving you peace of mind that your system is safe..
Specs General Specifications: Product Type: 6-Channel Amplifier Amplifier Circuitry: Class D Built-In Crossover?: Yes; HPF, Full-Range, LPF Bridgeable?: Yes RMS Power @ 2 Ohm: 230Wx 6-Ch (14.4v) RMS Power @ 4 Ohm: 150W x 6-Ch (14.4v) RMS Power @ 4 Ohm (Bridged): 520W x 2-Ch (14.4v) Recommended Fuse: 150A Power & Ground Input Size: 4 Gauge Speaker Input Size: 8 Gauge Gain Adjustment: 0.37v - 9v Low Pass Filter (LPF): 40 Hz - 4 kHz High Pass Filter (HPF): 40 Hz - 4 kHz Bass Boost: N/A Bass Boost Frequency: N/A Frequency Response: 10 Hz - 30 kHz Signal-To-Noise Ratio (S/N): 88 dB Damping Factor: 150 Input Impedance: 22 Kohms Input Sensitivity: 370 mV Operating Voltage: 8.7v - 16.7v Minimum Impedance: 2 ohm (stereo mode)
4 ohm (bridge mode)
Mounting Info Dimensions: Length: 12.80\" Width: 5.63” Height: 2.19”
