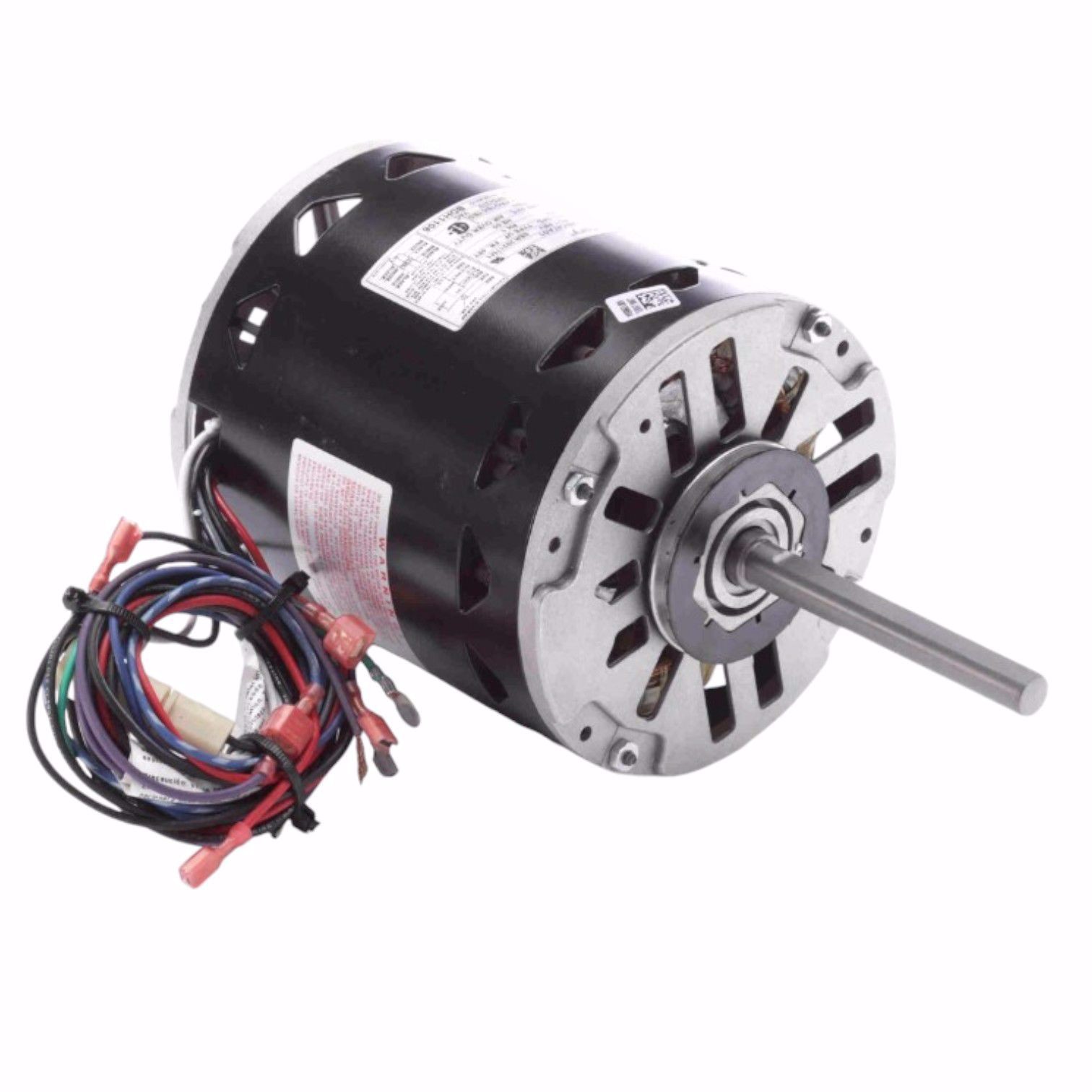

Century motors BDH1106 - 1 HP 460V 1100 RPM 3-Speed Direct Drive Fan & Blower Mo For Sale

The Century BDH1106 is a high-performance 1 HP direct-drive blower motor engineered to deliver reliable, energy-efficient airflow management in commercial and industrial HVAC systems. Operating on a 460V electrical supply with a peak speed of 1100 RPM, this motor features three distinct speed taps that allow technicians to precisely calibrate system ventilation to varying thermal loads. Its robust mechanical design minimizes operational noise and vibration while ensuring continuous duty performance in demanding environments. Ideal for both routine maintenance and new equipment integrations, it helps maintain optimal indoor air comfort and system static pressure across commercial facilities.

• Multi-Speed Airflow Control: Features 3 selectable operating speeds (up to 1100 RPM), enabling tailored airflow delivery to maximize system efficiency and lower overall energy consumption.
• Commercial-Grade Power: Specifically rated for 460V industrial electrical architectures, delivering a strong 1 HP output ideal for heavy-duty air handling units and cabinet blowers.
• Thermal Overload Protection: Equipped with internal thermal protection to safeguard motor windings against overheating, extending component life and preventing premature equipment failure.
• Seamless OEM Compatibility: Standardized direct-drive mounting layout allows for quick, straightforward drop-in installation, significantly reducing field maintenance downtime.



  Part #:BDH1106
  Catalog #:BDH1106
  Model # F48K47A01

  Features
  - Direct Drive Fan & Blower Motor
  - 5.6\" Diameter - 48 Frame
  - Permanent Split Capacitor (PSC); Capacitor Required: 15 Mfd-370 Volts (Not Supplied with Motor)
  - Thermally Protected
  - Open Air Over
  - Class B Insulation, 40°C Ambient
  - Ball Bearing
  - 1/2\" Diameter Shaft with Flat
  - 36\" Leads with Quick Connect Terminals
  - Resilient Ring Mounting

  Nameplate Specifications
  - 1 Phase
  - Output KW 0.75 kW
  - 1100 RPM
  - 60Hz
  - 1 HP
  - 460 V
  - Open Enclosed
  - 3.2 Amps
  - 3 Speed

  Technical Specifications
  - Electrical Type: Permanent Split Capacitor
  - 6 Poles
  - Mounting Round Belly Band
  - Drive End Bearing Ball
  - Frame Material Rolled Steel
  - Rotation Reversible
  - Motor Orientation Horizontal
  - Shaft Extension 4.5\"
  - Frame Length 5.50\"
  - Shaft Type Flat
