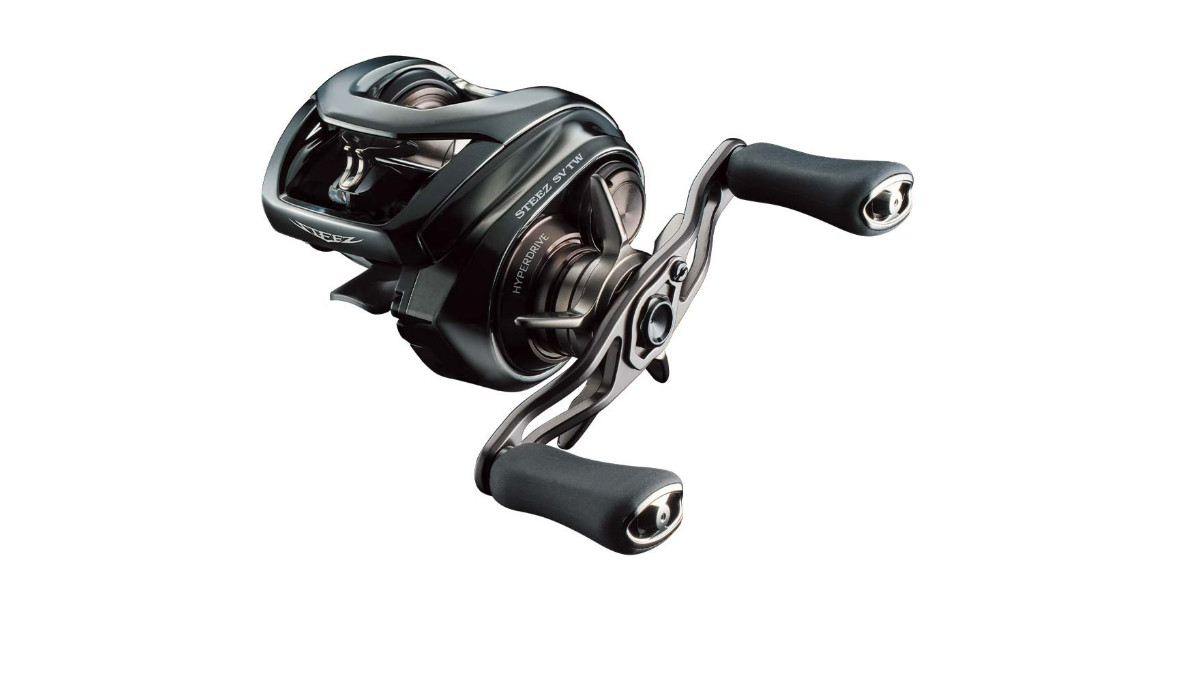

Daiwa 24 Steez SV TW 100H Baitcast magnesium frame.
Air Brake System combining the controlled casting of the SV Spool, with the UTD drag system.Steez has a long history as a part of Daiwa, a premium flagship brand for bass fishing equipment. Debuting Ultimate Casting Design, bringing the perfect cast into reality. To realise the ultimate casting design which Daiwa has been pursuing for many years, it was necessary to align four key elements, and take each of those to the limit.
Just perfecting one part was not enough, it took all parts acting together to bring Ultimate Casting Design to life. The four pillars of Ultimate Casting Design are Daiwa’s famous Magforce + Variable Inductor, TWS T-Wing System, Zero Adjust & G1 Duralumin spool. When all four of these are harmonized, the imagination of perfect casting performance is realised.
Daiwa’s advancements of a completely non-contact electromagnetic braking system have been under development since the introduction of Magforce braking over 20 years ago. By creating a completely non-contact structure it eliminates all friction and therefore is not easily affected by outside factors such as moisture or humidity. The adaptation of a two-stage variable inductor which is controlled by the spool’s rotation means performance for lightweight lures, versatility or super long casting can be achieved.
Daiwa’s Zero Adjuster has been present for many years. By mastering the main brake (Magforce) Daiwa bait reels now do not need the second stage mechanical brake which applies force to the spool shaft. Now the angler can respond to any setting simply by adjusting the mag dial. Ultimate Casting Design has eliminated this ability, which simplifies setup & use and eliminates possibility for accidental adjustment.
A third generation TWS has been installed, which has seen the shape be adjusted to further increase line flow. As bait reels become more compact and spool diameters decrease the rotational speed of the spool increases, further enhancing the performance benefits of TWS. A 4.9% casting distance increase is achieved when performing test casts against second generation TWS.
A new G1 Duralumin spool is regarded as the highest-grade aluminium alloy materials, two times stronger than magnesium and 1.3 times as strong as Super Duralumin. This allows Daiwa to create spools which are thin & light, whilst retaining strength and durability to handle many different line types and size.
Features
- Ultimate Casting Design - features four key elements (Ultimate Casting Brake, Ultimate Casting Line Guide, Ultimate Casting Zero Adjust and Ultimate Casting Spool), each developed for ultimate performance.
- HYPERDRIVE Design consists of four of the key pillars. Hyper Armed Housing, Hyper Tough Clutch, Hyper Double Support &HYPERDRIVE Digigear.
- HYPERDRIVE Digigear is the next evolution of baitcast gear design, taking Daiwa\'s Digigear concept delivering a smoother and stronger reeling sensation with a significant 60% improvement to gear durability.
- SV BOOST is a brand-new two-stage SV concept design which significantly increases casting distance in the latter part of the casting sequence. The two-stage SV BOOST design delivers the precise amount of breaking resistance at each stage of the cast, allowing the angler to perfectly account for varying scenarios when on the water.
SpecificationsModelBall BearingsDragGearSpool CapacityWeight24 STEEZ (G) SV TW 100H12+15kg7.8 (78cm)PE# 1.5/150m160g24 STEEZ (G) SV TW 100HL12+15kg7.8 (78cm)PE# 1.5/150m160g24 STEEZ (G) SV TW 100XH12+15kg8.5 (85cm)PE# 1.5/150m160g24 STEEZ (G) SV TW 100XHL12+15kg8.5 (85cm)PE# 1.5/150m160gSteez has a long history as a part of Daiwa, a premium flagship brand for bass fishing equipment. Debuting Ultimate Casting Design, bringing the perfect cast into reality. To realise the ultimate casting design which Daiwa has been pursuing for many years, it was necessary to align four key elements, and take each of those to the limit.
Just perfecting one part was not enough, it took all parts acting together to bring Ultimate Casting Design to life. The four pillars of Ultimate Casting Design are Daiwa’s famous Magforce + Variable Inductor, TWS T-Wing System, Zero Adjust & G1 Duralumin spool. When all four of these are harmonized, the imagination of perfect casting performance is realised.
Daiwa’s advancements of a completely non-contact electromagnetic braking system have been under development since the introduction of Magforce braking over 20 years ago. By creating a completely non-contact structure it eliminates all friction and therefore is not easily affected by outside factors such as moisture or humidity. The adaptation of a two-stage variable inductor which is controlled by the spool’s rotation means performance for lightweight lures, versatility or super long casting can be achieved.
Daiwa’s Zero Adjuster has been present for many years. By mastering the main brake (Magforce) Daiwa bait reels now do not need the second stage mechanical brake which applies force to the spool shaft. Now the angler can respond to any setting simply by adjusting the mag dial. Ultimate Casting Design has eliminated this ability, which simplifies setup & use and eliminates possibility for accidental adjustment.
A third generation TWS has been installed, which has seen the shape be adjusted to further increase line flow. As bait reels become more compact and spool diameters decrease the rotational speed of the spool increases, further enhancing the performance benefits of TWS. A 4.9% casting distance increase is achieved when performing test casts against second generation TWS.
A new G1 Duralumin spool is regarded as the highest-grade aluminium alloy materials, two times stronger than magnesium and 1.3 times as strong as Super Duralumin. This allows Daiwa to create spools which are thin & light, whilst retaining strength and durability to handle many different line types and size.
Daiwa TechnologyHYPERDRIVE DESIGNHyperdrive Design – The Next Generation of Baitcasting Performance: Daiwa’s Hyperdrive Design is a cutting-edge engineering concept that enhances power, durability, and efficiency in baitcasting reels. By integrating advanced manufacturing techniques, Hyperdrive Design ensures smooth and consistent performance under heavy loads, setting a new standard for reel longevity and strength. This innovative system is built on four key elements: Hyper Armed Housing – a rigid metal frame (magnesium or aluminum) that eliminates flex and keeps internal components perfectly aligned; Hyperdrive Digigear – a precision-machined gear system with larger, stronger teeth for superior smoothness and endurance; Hyper Double Support – a dual ball-bearing support system for the pinion gear, enhancing power transmission and durability; and Hyper Tough Clutch – a reinforced clutch mechanism that stays securely engaged even under extreme casting pressure.SV-BOOSTSV BOOST – Smooth Control Meets Extended Casting Distance: SV BOOST builds on the trouble-free performance of the SV concept, introducing a two-stage BOOST mechanism that dynamically adjusts braking force based on spool rotation speed. At the start of the cast, the system instantly applies maximum braking to suppress backlash during the high-speed phase. As the cast progresses, braking force is reduced in two stages—allowing the lure to maintain a smooth, extended trajectory through the mid and final phases of flight. This intelligent braking profile delivers both casting comfort and long-distance performance, making SV BOOST ideal for anglers who demand precision, control, and reach in every cast.MAGFORCE ZMAGFORCE Z – Dynamic Braking for Maximum Casting Distance: MAGFORCE Z features a variable induct rotor that adjusts its position in response to spool rotation speed and centrifugal force. During the high-speed phase at the start of the cast, the rotor moves deeper into the magnetic field, generating strong braking force to suppress backlash. As spool speed decreases, the rotor retracts, reducing braking force and allowing the lure to carry further—delivering that extra push in the final stretch of the cast. This dynamic braking system balances control and distance, making it ideal for anglers who want smooth, confident casting with optimized flight performance.
CRBBShielded for extra protection. Unlike ordinary \"corrosion resistant\" bearings with un unprotected open race, DAIWA\'s CRBB ball bearings are shielded to seal out sand, fine grit, salt crystals and other abrasives for even longer life.
CRBB ball bearings feature an 12 times higher corrosion resistance than usual ball bearings.UTDSmooth Start Drag – Precision Meets Power Daiwa’s advanced drag system is engineered to eliminate the jerky, uneven resistance that can occur when drag first engages. The result is ultra-smooth, stick-free performance from the very first pull, perfect for delicate bites and light lines. But smooth doesn’t mean weak. As you tighten the drag, the system delivers progressively stronger pressure, giving you the stopping power needed for hard-fighting fish. Smooth when it matters. Strong when it counts.FeaturesTWS, Magnesium body, 32mm G1 Duraluminium Spool, Infinite Anti-Reverse, 90mm Aluminium Handle, Zero Adjuster, Made in Japan
