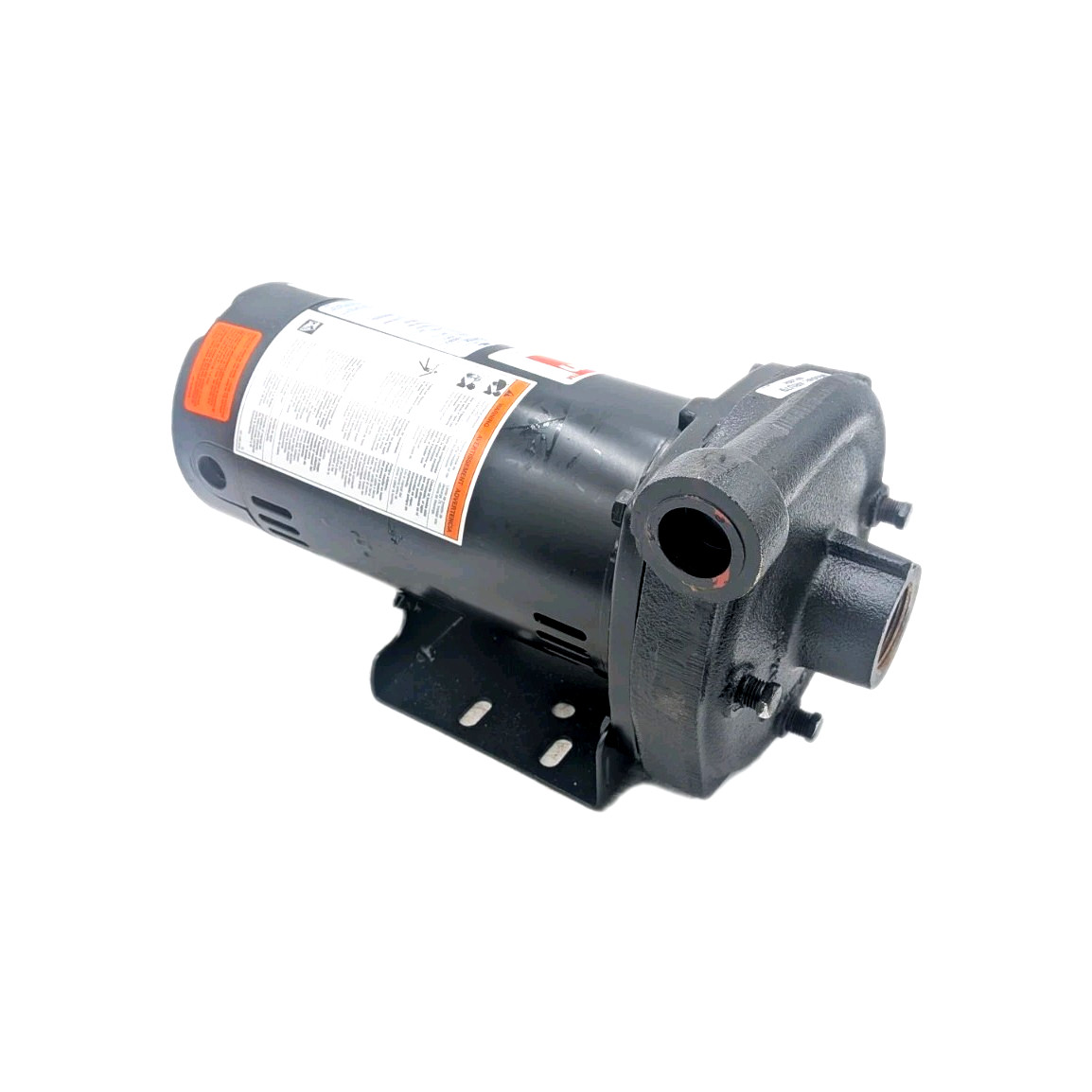

Dayton 4RU79 Centrifugal Pump
Pump Housing Material: Cast Iron
Phase: Single
Horsepower: 1-1/2 hp
Nameplate Voltage: 115/230V AC
Maximum Flow Rate @ 20 ft Head: 70 gpm
Maximum Flow Rate @ 40 ft Head: 66 gpm
Maximum Flow Rate @ 60 ft Head: 57 gpm
Maximum Flow Rate @ 80 ft Head: 48 gpm
Maximum Flow Rate @ 100 ft Head: 35 gpm
Maximum Feet of Head: 118 ft
Shut Off Pressure: 125 psi
Priming: Manual
Suction Lift (Maximum): 25 ft
Connection Type: NPT
Compatible Intake Pipe Size: 1-1/4 in
Compatible Discharge Pipe Size: 1 in
Discharge Type: NPT
Impeller Material: Noryl
Seal Material: 316 Stainless Steel; Buna-N; Carbon; Ceramic
Wetted Materials: Buna-N; Carbon; Cast Iron; Ceramic; Noryl; Stainless Steel
Motor Enclosure: Open Dripproof
RPM (Maximum): 3,450 RPM
Specific Gravity (Maximum): 1
Frequency: 60 Hz
Best Efficiency Head: 85 ft
Best Efficiency Flow: 45 gpm
Flow Rate (Maximum): 70 gpm
Duty Cycle: Continuous
Overall Height: 8.6 in
Overall Length: 13.7 in
Overall Width: 7.8 in
