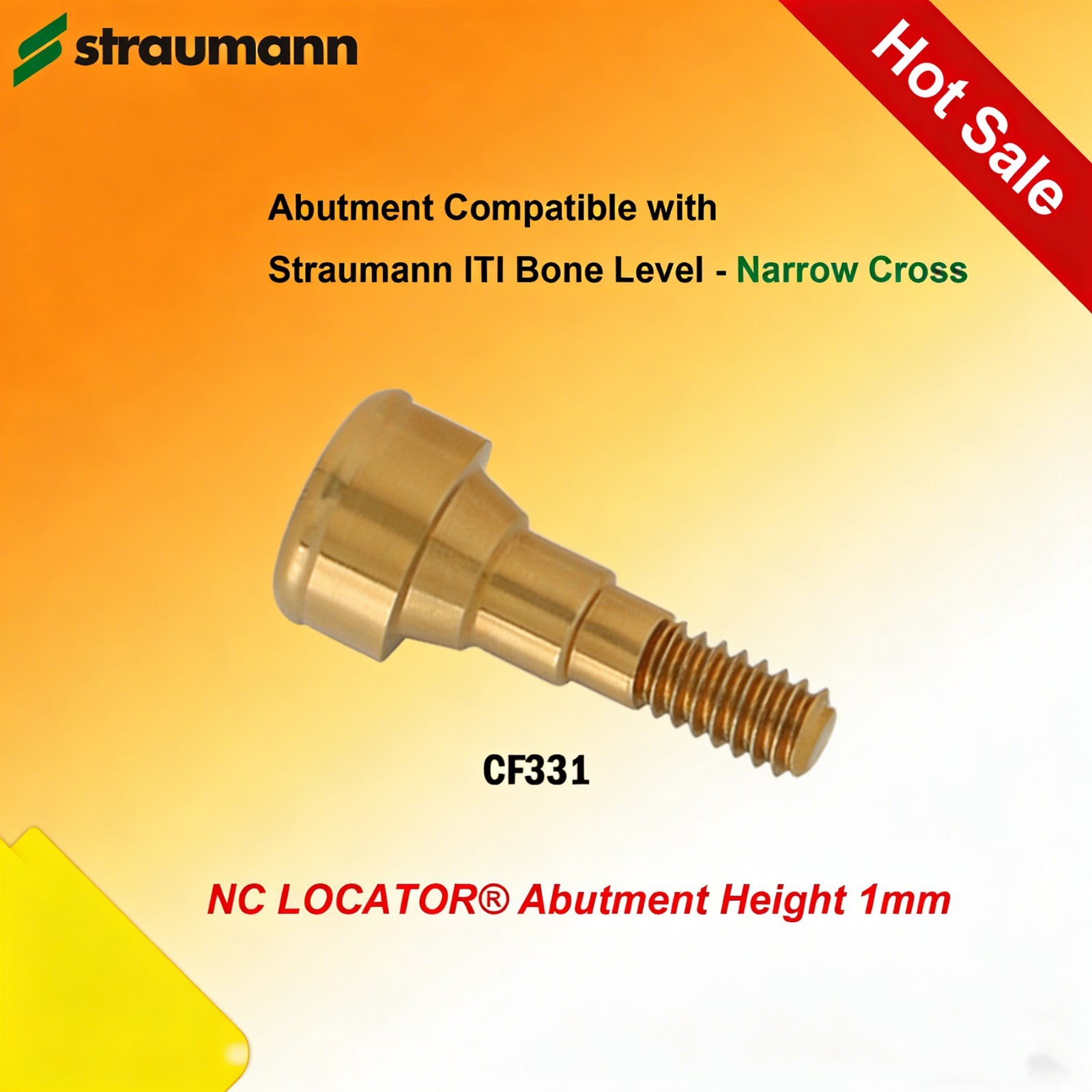

Compatible with Straumann Bone Level NC / RC Systems
📦 Multiple sizes & quantity options available
âš Please select the correct model before purchase.
🔹 Available Models▶ NC Platform (Narrow CrossFit)
NC-CF331 – 1.0mm GH
NC-CF332 – 2.0mm GH
NC-CF333 – 3.0mm GH
NC-CF334 – 4.0mm GH
NC-CF335 – 5.0mm GH
Quantity Options:
• 1 Pc
• 2 Pcs
• 5 Pcs
• 10 Pcs
Kit Option:
• Kit-5Pcs-NC (1-5mm, each 1pc)
â–¶ RC Platform (Regular CrossFit)
RC-CF401 – 1.0mm GH
RC-CF402 – 2.0mm GH
RC-CF403 – 3.0mm GH
RC-CF404 – 4.0mm GH
RC-CF405 – 5.0mm GH
Quantity Options:
• 1 Pc
• 2 Pcs
• 5 Pcs
• 10 Pcs
Kit Option:
• Kit-5Pcs-RC (1-5mm, each 1pc)
🔹 Product Features
✔ Compatible with Straumann Bone Level Implant System
✔ Locator Overdenture Attachment Design
✔ Supports up to 40° implant divergence
✔ Stable dual retention performance
✔ Low profile design (~1.5mm)
✔ Straight non-engaging abutment
✔ Pre-mounted placement tool for easy installation
🔹 Technical Specifications
Connection Type: Internal Conical Connection
Material: Titanium
Abutment Angulation: Straight
Engagement: Non-Engaging
Collar Height Options:
1.0mm
2.0mm
3.0mm
4.0mm
5.0mm
Recommended Tightening Torque:
30 Ncm
🔹 System Compatibility
NC-CF331 / 332 / 333 / 334 / 335
Compatible with:
Straumann® Bone Level Narrow Platform NC
RC-CF401 / 402 / 403 / 404 / 405
Compatible with:
Straumann® Bone Level Regular Platform RC
🔹 Application
Suitable for:
✔ Implant retained overdenture restoration
✔ Mandible or maxilla overdenture treatment
✔ Dental laboratory and clinical implant procedures
Important Notice
• Abutment color may vary by batch
• Compatible replacement component (not original brand)
