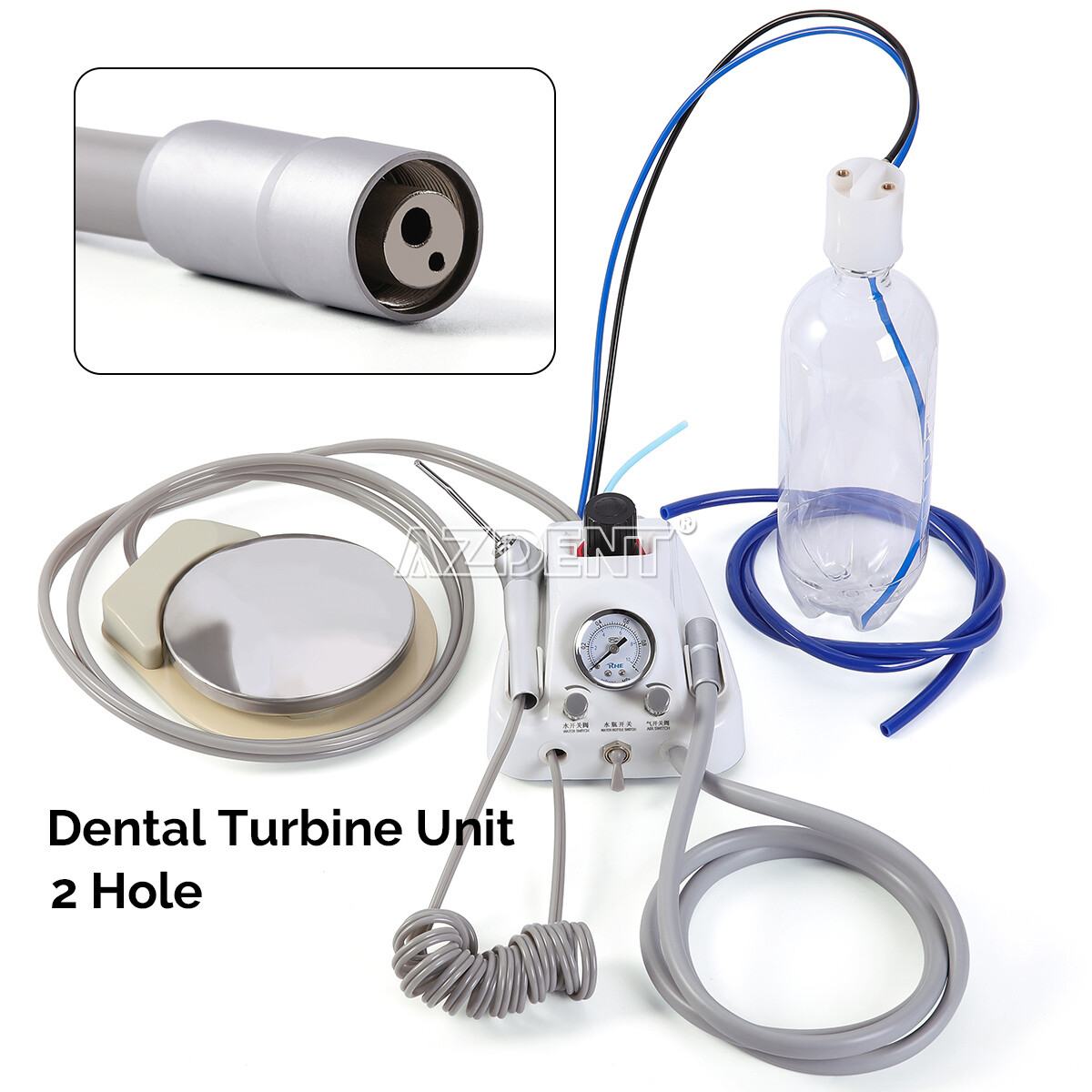

Dental Turbine Unit 2/4 holes
Remarks: Before operation this therapeutic device need to connect with oil free compressor.
Specifications Including:
Turbine dental unit;3 way syringe;Foot switch;Water bottle;Plastic tube for connection to air compressor; Control system: Air control
Specifications
Control system: Air control
Air pressure input: 4-8kg, Air pressure output: 0-4kg
Air pressure for hand piece: 0.01Mpa~0.4Mpa
Water pressure input: 2kg, Water pressure output: 0-2kg
Water pressure: 0.1Mpa~0.25Mpa
Packing list:
GM-B011 Plastic turbine
Standard Accessories
3-way air/water syringe.....1set
High or Low speed air turbine Handpiece tube 2 Holes /4 Holes….1set
Clean water bottle 600ML.....1set
Foot pedal.....1set
Gross weight: 1.8kg
Carton box Packing size: 26*22*16cm
Dental Portable X Ray Unit/High Frequency Portable dental X-Ray machine/Dental imaging system portable x ray machine
Features:
1.Compatible with digital sensors, X-ray film,and image plate scanners.
- Portable and nearly no radiation.
- The body is small and light in weight.
- It has excellent image quality, portable storage, save more space.
- It uses high frequency and DC international power supply.
- All of the components installed in the central PC board concentrated. Shock,set-up, electron tubes, all of them are insulation vacuum, sealed stereotype protection.
- Different exposure times are preset for adults and children.
- The battery is durable, it can take about 2 hundred images after fully charged.
Technical Parameter:
Tube voltage：60KV
Tube current：2mA
Exposure time：0.1~2.0s
Frequency：30KHz
Rate power：120VA
Distance from skin to cone：150mm
Tube focus：0.4mm×0.4mm
Battery：1550mAh
Charger input voltage：AC110V-240V
Output voltage: DC14.8-16.8V
Ambient temperature: 5℃~40℃
Relative temperature: <75%RH
Net weight：1.7KG
Packing List:
Main body 1pc
Charger 1pc
User manual 1pc
Dental Sensor X-RayDigital Sensor Intraoral Digital System HD Image Dentistry Tools
Feature:
- If there’s only one device, you may select “Single-User” installation. If the sensor is connected to multiple device, select “Host” for the device connected with the sensor and other devices select “Extension” to install, to achieve multi-machine sharing.
- The sensor is available in two sizes, with rounded corners and a thickness of only 4.4mm, making it more comfortable to use.
- Cables are durable，have been tested for 80,000+ bends.
- CMOS detector technology with CSI scintillator. Ensures optimal resolution Low dose clinical imaging.
- Compatible with different X-ray generators, easy to use.
- No consumables and more cost-effective than traditional film.
Hardware and software requirement：
Processor ：1.0GHz or above
Memory ：2GB or above
Hard disk ：64GB or above
Display resolution ：1440*900 or above
USB port ：USB2.0
Operating system ：Windows 7、Windows10、Windows11
Technical parameter：
S1
S2
Detector Technology
APS CMOS
APS CMOS
Scintillator
CsI
CsI
Theoretical Resolution
25lp/mm
25lp/mm
True Resolution
20lp/mm
20lp/mm
Pixel Matrix
1000*1500
1300*1800
Active Area(mm)
20*30
26*36
Mechanical Size(mm)
25.4*38.2*4.4
30.4*44*4.4
Data interface
USB 2.0
USB 2.0
AD Conversion(bit)
16
16
Protection
IP68
IP68
Packing list：
1. Sensor
2. USB flash disk (Software)
3. Protective sleeve
