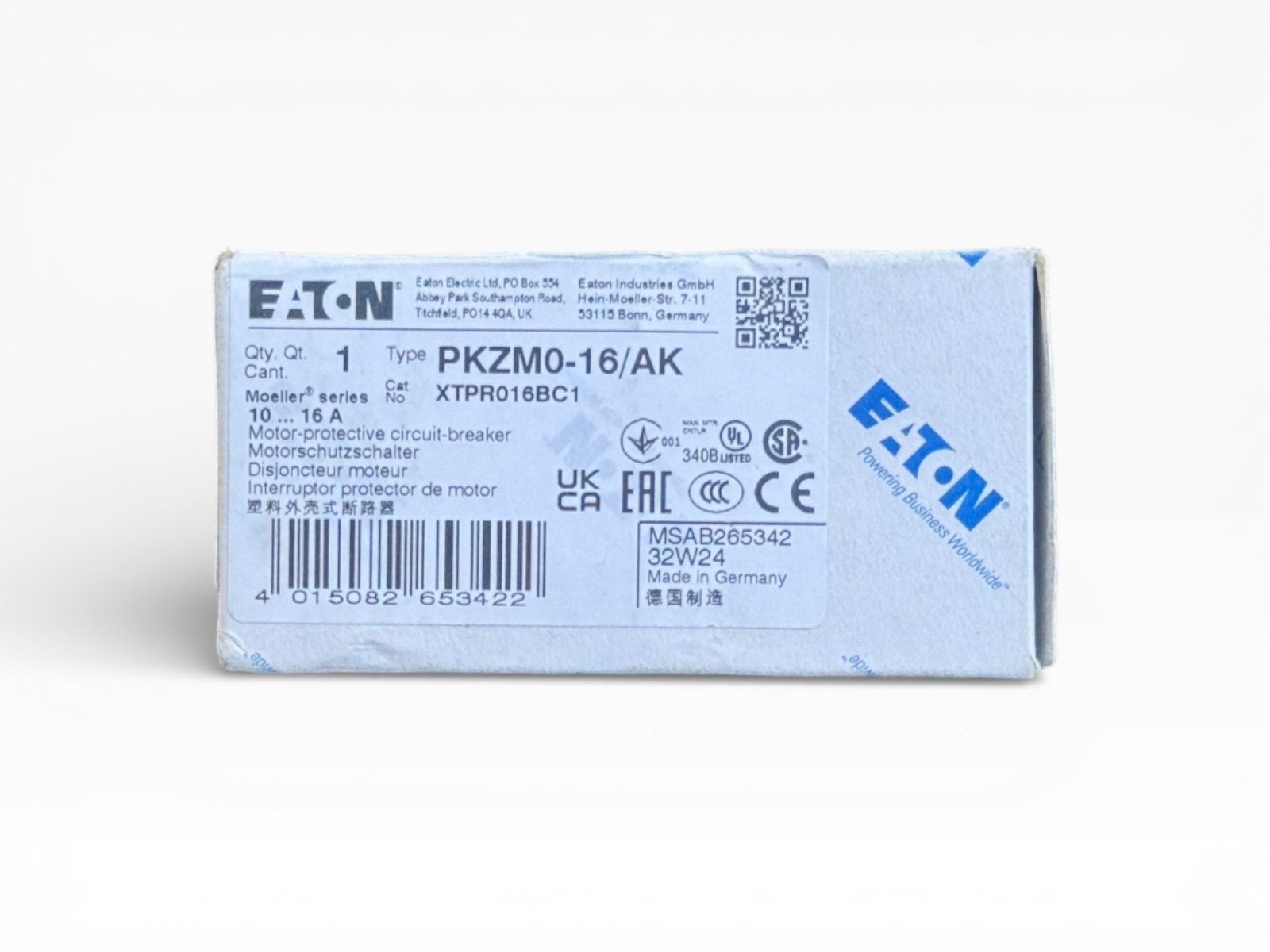

Eaton Moeller | PKZM0-16 / XTPR016BC1 | 16A | 3-Pole | 10HP @ 480V:
$66.49
FeatureDetailed SpecificationManufacturerEaton / MoellerModel NumberPKZM0-16 (Global) / XTPR016BC1 (North America)Amperage Range10.0 – 16.0 Amps (Adjustable Dial)Max HP (3-Phase)10 HP @ 480V / 10 HP @ 600V / 5 HP @ 240VVoltage Rating600V AC (UL/CSA) / 690V AC (IEC)Interrupting Rating50kA @ 480V / 18kA @ 600VTrip TypeThermal-Magnetic (Class 10 Overload)Number of Poles3-PoleMounting35mm DIN Rail or Screw MountFrame Size45 mm (Frame B)CertificationsUL 508 (Type E/F), CSA, CE, CCC, ATEX
