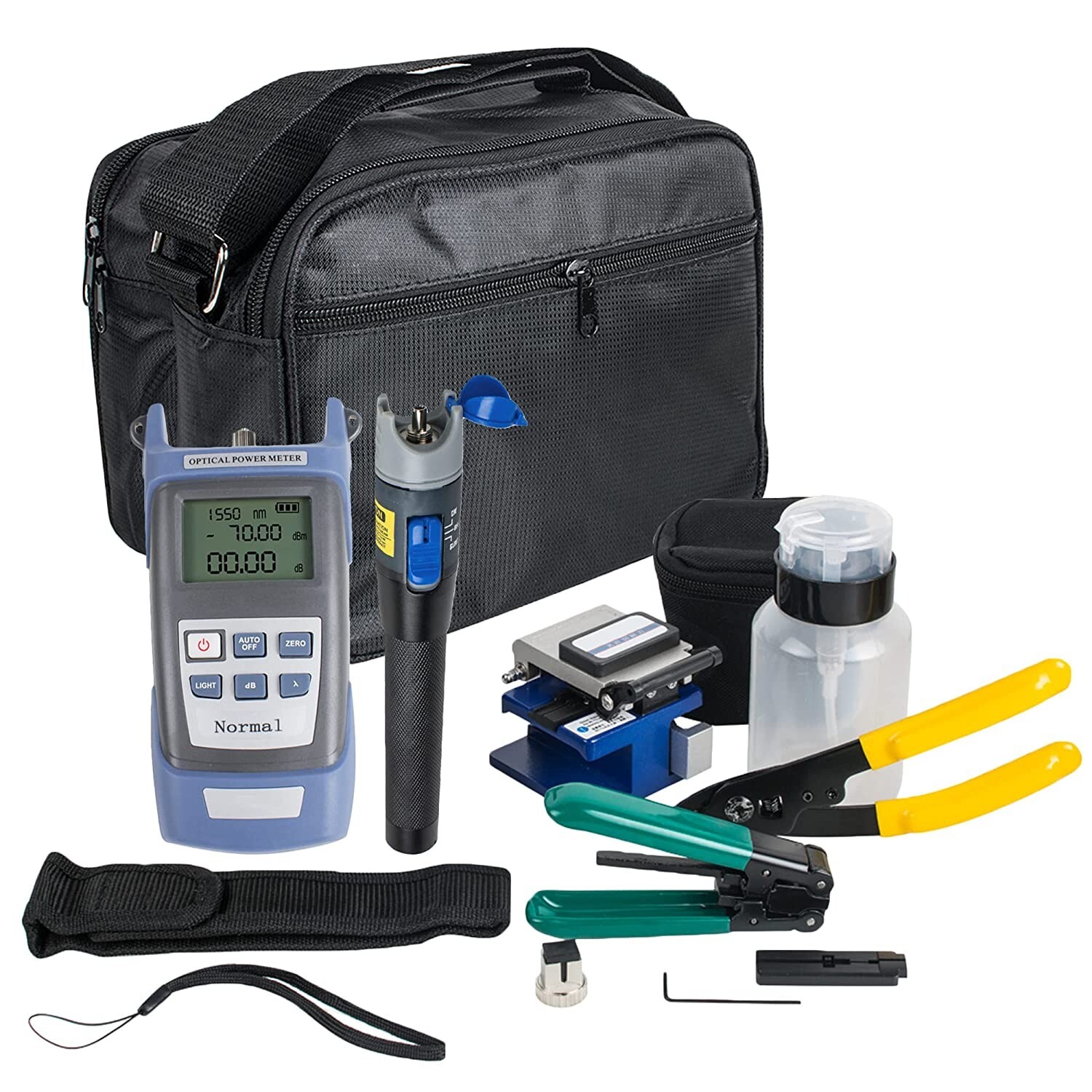

Fiber Optic FTTH Tool Kit FC-6S Cutter Cleaver Optical Power Meter Visual Device For Sale

Features

• 【FTTH EQUIPENT KIT】- Our assembly FTTH tool kit Includes Optical Power Meter which works with LC, FC, ST, SCAPC, 30km Visual Fault Locator tester, FC-6S Fiber Cleaver, CFS-3 Fiber Optic Stripper, FTTH Drop Cable Stripper, Black Carry Bag, Alcohol Bottle, Fixed Length Rail.
• 【OPERATION DETAILS & TIPS】- This FC-6S optical fiber cleaver is available with a single fiber adapter for 250 to 900 micron coated single fibers. It will terminate 50 micron core and cladding is 125 μm and Soft Peel is 250 μm.This kit can be used for SC, SM, MM, ST, FC connectors, if it is an LC connector, maybe an adapter is required.This can terminate LC fiber ends for universal types. Please notice that it can only cut one fiber one time.
• 【EASY TO OPERATE】- Our FC-6S optical fiber cleaver is available with a single fiber adapter, It is not a fusion splicer and it is Fttx ftth rapid connection in the construction of rubber insulated wire stripping, fiber cutting, cleaning and testing process. You can use these tools to terminate the thin wires in the fiber, or to strip the fiber,complete fiber optic assembly or test work, etc.
• 【PORTABLE & TRAVEL】- Light weight small size easy to operate Can be used for indoor cable stripping coating layer and positioning length It can be used to locate the indoor cable into the optical fiber cutting knife.It's designed for 1mm jacket. If you use unjacketed, then you must hold the fiber in with a drop of cyanoacrylate.
• 【WIDELY APPLICATION】- Telecom Maintenance. CCTV Maintenance. Comprehensive cable construction system. Optical instruments research and development. Optical communication education and lab testing. Other optical project.

Specification: Test Range: -70~+3dbm Probe Type: InGaAs Wavelength Range: 800~1700nm Standard Display Resolution: Linear Display 0.1%; Logarithmic display 0.01dBm Working Temp(℃): -10~+60℃/14℉-140℉ Storage Temp(℃): -25~+70℃/-13℉-158℉ Auto Switch-off Time(min): 18min Battery working period: ≥48hrs Size(mm): 162x75x27mm Power: 3x AA batteries (batteries included) Power:1mw FC 6S cutter Specification Applicable bare wire diameter: 125μm Applicable fiber core number: single core (φ0.25 & 0.9mm) ~ 12 core ribbon core wire ~ 2.5 skin line Fiber cutting length: 9-16mm (φ0.25), 10-16mm (0.9mm) Size: 63 * 76 * 63mm Visual Fault Locator Specification Output wavelength:650mm Output light power: >1mW Optical connector: universal connector Operating temperature:0~+60℃/32℉-140℉ Storage temperature: -20~+70℃/-4℉-140℉ Power supply: 2 x AA batteries(batteries included) Size: 175mm*26mm Operation method 1.Open the switch fiber plate cover and open the plate of the single-core fiber clamp. Confirm the position of the knife holder on the front side. 2.Place the fiber in the V-groove of the single-core fiber clamp and align the fiber coating to remove the boundary line and the scale on the fixture, as needed. 3.Cap the clip of the single-core fiber clamp to clamp the fiber. Close the fiber platen cover and push the tool holder inward to cut the fiber. 4.Open the fiber-optic panel cover and open the fiber-optic clip while opening the clip of the single-core fiber clamp. Don't forget to remove fiber debris. 9 in 1 Fiber Optic Termination Kit

• Fiber Optic Stripper suitable for 3mm, 2mm Indoor Fiber Optic jumper Cables - High-quality FC6S Fiber Cleaver for FTTH Cold Welding of Single or Multi-Mode Cables. Useful for Core Cutting & repair of Fiber Sizes 125um and a Skin Diameter 250~900um.

Optical Power Meter

• Optical Power Meter Test Rang -70~+10 dBm; with FC and SC Supply: Alkaline Battery(2 AA 1.5V batteries) 48H
• Optical Connector: FC/SC as well as 2.5mm universal
.

Visual Fault Locator

• Made of high quality aluminum material.
• Portable,durable and rugged, easy to use
• Output Power: >1mW 5KM
• Red light output distance 10KM, Replaceable Ceramic core Design to prolong the lifetime
• Battery: AA*2

FC-6S Fiber Cleaver

• Compact body& light weight; High Precision Cleaves
• Provides approximately 36,000 cleaves
• 250um Coated or 900um Buffer fiber
• 12 Position Rotatable and Replicable Blade
• Metal material body Cutting angle: 0. 5 degree
• Cutting length: 0. 9mm fiber is 10-16mm; 0. 25mm fiber is 9-16mm
.

CFS-3 Cable Stripper & Drop Cable Stripper

• Material: Antirust Primer
• The rubber handle is designed according to ergonomics, which is comfortable to hold, easy to operate and more adaptable.No hurt the bare fiber optic.
• Adaptive coating diameter of optical fiber: Φ0.25mm & Φ0.9;
• Adaptive cladding diameter of optical fiber: 125μm.

Package included

• 1 x Fiber Cleaver FC-6S
• 1 x Optical Power Meter -70 to +3dBm
• 1 x 1mw Visual Fault Locator
• 1 x Drop Cable Stripper
• 1 x Fixed-Length Stripper
• 1 x CFS-3 Fiber Optic Stripper
• 1 x Tool kit Carrying Bag
• 1 x 2 pc Allen adjustable tools
• 1 x Alcohol bottle
• 1 x Visual fault locator carrying bag
• 1 x Optical power meter sc adapter
• 1 x Fiber cleaver bag
• 1 bag paper
• 1 bag cottom swab
• 5PC Batteries needed included
