Product Description

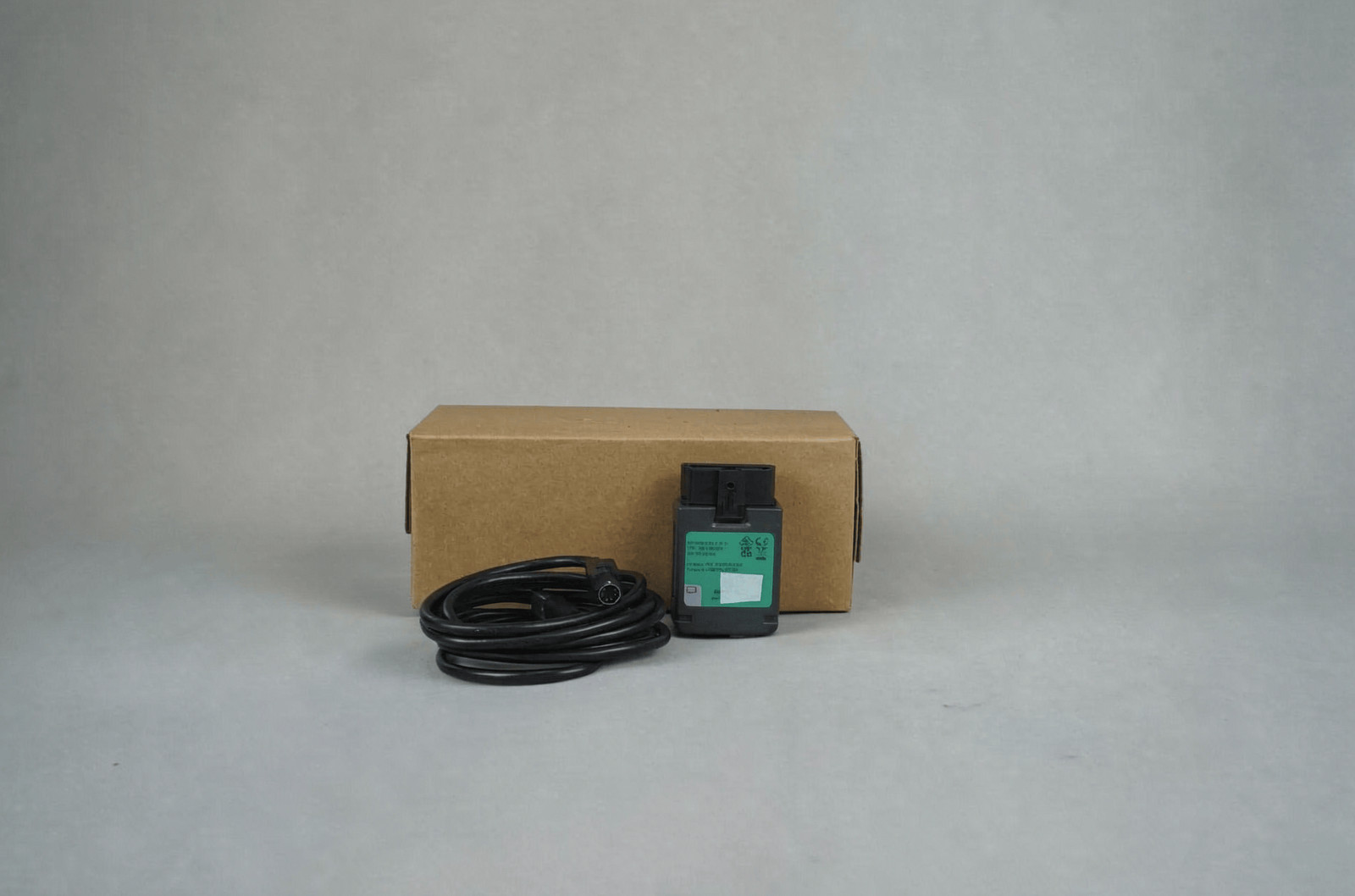

DENSO DST-010-A Green 95171-01480 OBD Certified Inspection Scan Tool
NOTE:
1.Pre-08 cars, DENSO DST-010-A can\'t be supported
2.Toyota GTS software we can installing and activate remotely (USD50 cost for one laptop installation)
3.Toyota GTS + software: you should be have online account use the software , we not offer online account.
DENSO DST-010-AGreen supported communication standards ISO9141, ISO14229, ISO14230, ISO15765, ISO15031-5, SAEJ1979, ISO13400
DENSO DST-010-AGreen compatible with ISO13400 high-speed communication (DoIP) Wireless module enables connection to PC via Wi-F CPU 32-bit microcontroller External interface PC communication USB USB2.0 × 1 (MiniDIN connector) Wireless LAN IEEE802.11bgn 2.4GHz IEEE802.15.1 Ver.4.0/Class1 SD memory card (SD, SDHC compatible) slot × 1 Vehicle communication ISO9141(K/L) HS-CAN DoIP
DENSO DST-010-A Green Supporting Protocols
1. SAE-J2534-1 2004, SAE-J2534-2 2010 Passthru Driver
2. ISO-22900-1/2 MVCI with D-PDU Driver
3. ISO13400-1/2/3/4 DoIP Driver
4. CAN-BUS1 channel:
HSCAN1/CANFD1: PIN 6/14
5. CAN-BUS2 channel:
HSCAN2/CANFD2: PIN 3/11
6. 2-way K-Line *5
K1-Line: indicates K7
K2-Line: K1,K9,K14,K15
7. ADC input: VBAT ADC input
8. Gigabit eCAT DB16 output
9. 100 Mbit USB2.0 HS network card
10. WIFI relay/bridge
Software list
Honda i-HDS V1.010.011
Toyota GTS V18.00.008
Toyota GTS and GTS+ V2025.12 Software
Subaru SSM4 V2026.04 Software
Subaru Software Display:
Toyota GTS ans GTS+ Software Display:
Honda i-HDS Software Display:
Packing List:
