Premium Quality Replacement Part

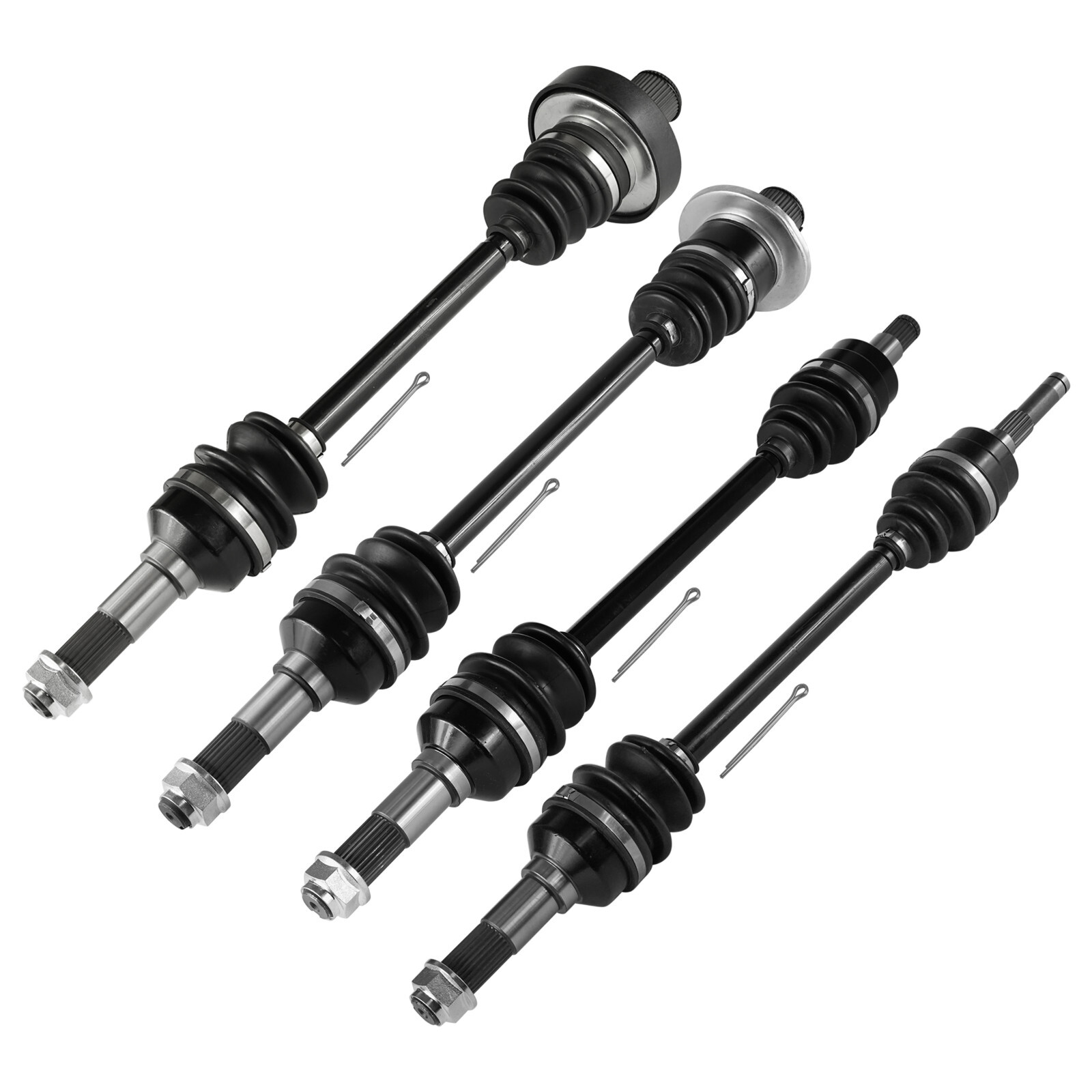

Front and Rear Left and Right Complete CV Joint Axles
Compatible with Yamaha Models:
Rhino 450 Yxr450f 4wd 2006-2009
Rhino 450 Yxr450f 4wd Hunter Edition 2006-2009
Rhino 450 Yxr450f 4wd Special Edition 2007-2008
Rhino 660 Yxr660f 4wd 2006-2007
Rhino 660 Yxr660f 4wd Exploring Edition 2006-2007
Rhino 660 Yxr660f 4wd Hunter Edition 2006-2007
Rhino 660 Yxr660f 4wd Special Edition 2006-2007
Rhino 660 Yxr660f 4wd Sport Edition 2007
Order Includes:
1x Front Left Axle: 5UG-F518F-20-00
Length: 627 mm - 24.7 in
Spline A Length: 37.6 mm - 1.4 in - 27 Tooth,
Boot Width: 76.7 mm - 3 in,
Spline B Length: 31.2 mm - 1.2 in - 21 Tooth,
Boot Width: 67.9 mm - 2.6 in
1x Front Right Axle: 5UG-F518G-20-00
Length: 676.3 mm - 26.6 in
Spline A Length: 26 mm - 1.02 in - 21 Tooth,
Boot Width: 68.3 mm - 2.68 in,
Spline B Length: 37.8 mm - 1.48 in - 27 Tooth,
Boot Width: 79.7 mm - 3.13 in
1x Rear Right Axle: 5UG-F53B0-21-00, 5UG-F53B0-20-00
Length: 647.7 mm - 25.5 in
Spline A Length: 27.7 mm - 1.0 in - 27 Tooth,
Spline B Length: 39.7 mm - 1.56 in - 37 Tooth
1x Rear Left Axle: 5UG-F531H-21-00, 5UG-F531H-20-00
Length: 609 mm - 24 in
Spline A Length: 26 mm - 1.02 in - 27 Tooth,
Boot Width: 76.5 mm - 3.0 in,
Spline B Length: 29.5 mm - 1.16 in - 39 Tooth,
Boot Width: 70.5 mm - 2.7 in
