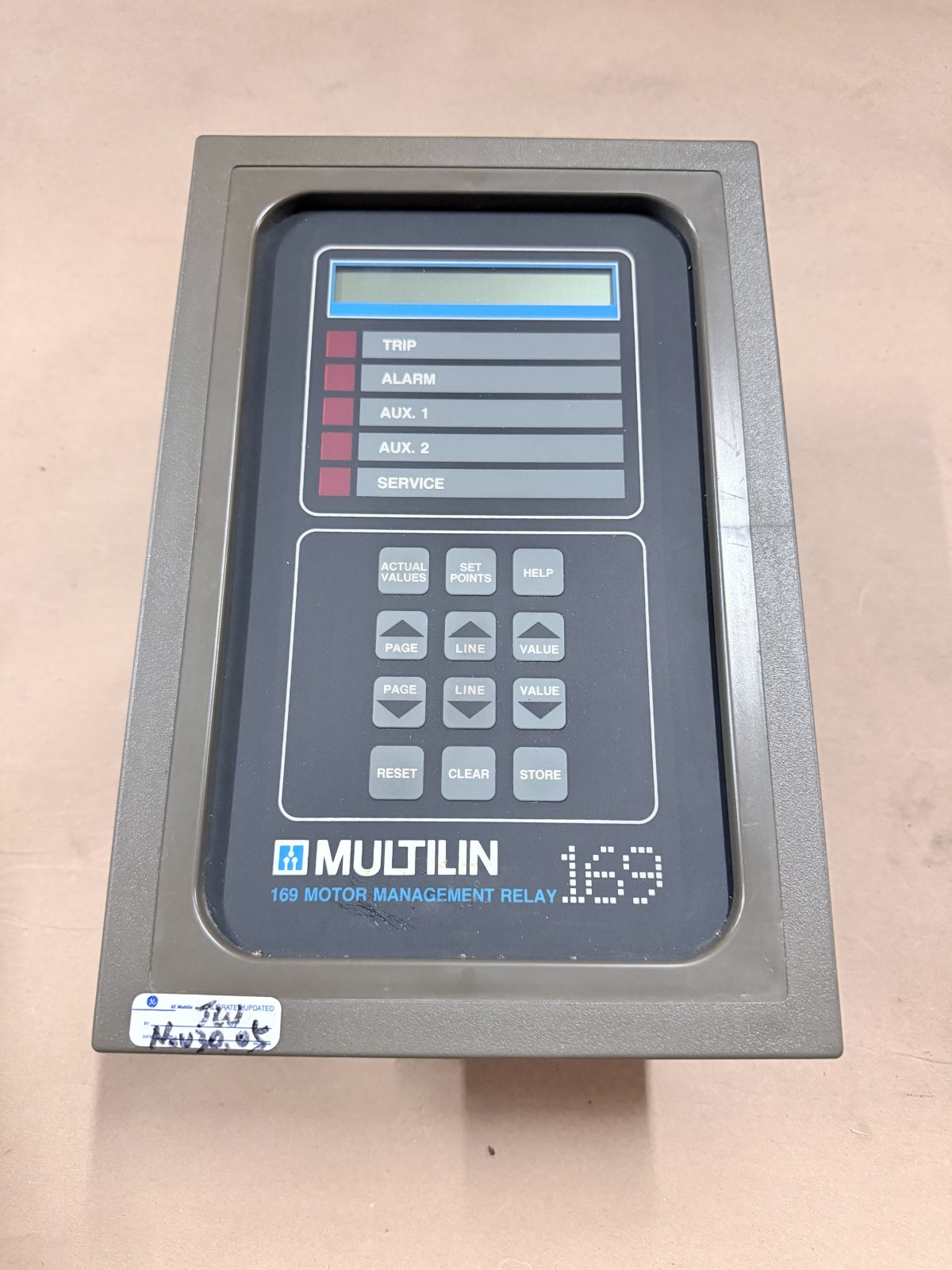

Offered for sale is a GE Multilin 169PLUS-100P-120 Motor Management Relay.
The Multilin 169 Plus is a microprocessor-based motor protection and management relay designed to provide protection, monitoring, and thermal management for compatible three-phase industrial motors. It incorporates motor thermal modeling and RTD temperature monitoring to help protect motors under varying operating, load, and supply conditions.
Technical Specifications
Model / Part Number: 169PLUS-100P-120
Product Family: Multilin 169 Plus
Product Type: Motor Management / Motor Protection Relay
Control / Input Power: 120 VAC
Control Power Frequency: 50/60 Hz
RTD Type: 100 Ohm Platinum
Maximum Relay Output Voltage: 250 VAC
Maximum Relay Output Current: 10 A
Maximum Relay Output Motor Rating: 1/4 HP
Display: 48-Character Alphanumeric Display
Approximate Weight: 6.8 lb
Application: Three-Phase Motor Protection / Monitoring / Management
Motor Protection & Monitoring
The Multilin 169 Plus platform provides functions for monitoring and protecting industrial motors, including:
Stator Thermal Modeling
Rotor Thermal Modeling
RTD Temperature Monitoring
Phase Current Monitoring
Ground-Fault Current Monitoring
Motor Thermal Protection
Motor Cooling-Time Monitoring
Running Hours Counter
Motor Operating Condition Monitoring
Programmable Motor Protection Parameters
RTD Configuration
The 100P designation identifies this unit for use with 100-ohm platinum RTD sensors.
RTD monitoring allows the relay to incorporate actual motor temperature information into the protection and monitoring system.
Control Power
The 120 suffix identifies the unit\'s 120 VAC control power configuration.
Relay Output Rating
Note: The 250 VAC / 10 A specification refers to the relay\'s output/contact rating and should not be confused with the unit\'s 120 VAC control/input power.
Typical Applications
Condition
This is an industrial surplus GE Multilin 169PLUS-100P-120 Motor Management Relay.
Please review all photos of the relay, display, keypad, nameplate, terminals, connectors, housing, and overall condition carefully.
The photos are considered part of the description.
Buyers should verify the 169PLUS-100P-120 model number, 120VAC control power, 100-ohm platinum RTD configuration, output/contact ratings, wiring, motor protection requirements, and compatibility with their specific motor and control system prior to purchase.
