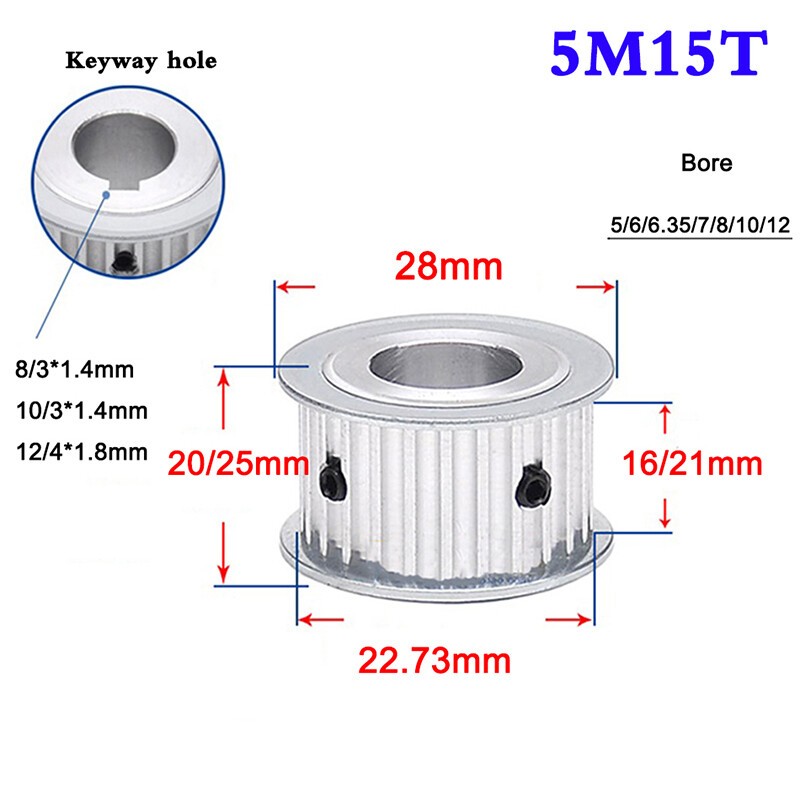

HTD 5M Timing Belt Pulley AF-Type 15T - 100T Keyway Hole, for 15/20mm Wide Belt For Sale

HTD 5M Timing Belt Pulley AF-Type 15T - 100T Keyway Hole, For 15/20mm Wide Belt Product Information

● Product Name: HTD 5M Timing Belt Pulley
● Product Type：AF-Type（Keyway Hole）
● Main material: Aluminum alloy, (Capped edge: iron plated zinc).
● Suitable for Timing Belt Model:
- HTD 5M Timing Belt （Belt tooth shape: Arc; Pitch: 5mm)
● Slot width: 16mm / 21mm (Suitable for Timing Belt Width：15mm / 20mm)
● Number of Teeth：15 Teeth, 16 Teeth,18 Teeth, 20 Teeth, 22 Teeth, 24 Teeth, 25 Teeth, 30 Teeth, 35 Teeth, 40 Teeth, 45 Teeth, 48 Teeth, 50 Teeth, 60 Teeth, 65 Teeth, 70 Teeth, 80 Teeth, 90 Teeth, 100 Teeth
● Bore Dia(d1*d2)：8mm(3x1.4mm), 10mm(3x1.4mm), 12mm(4x1.8mm), 12mm(5x2.3mm), 12.7mm(5x2.3mm), 14mm(5x2.3mm), 15mm(5x2.3mm), 16mm(5x2.3mm), 17mm(5x2.3mm), 18mm(6x2.8mm), 19mm(6x2.8mm), 20mm(6x2.8mm), 25mm(8x3.3mm)
● Fixing grub screw size: M5*2 (Free gift)

Features
1.Aluminum Alloy Casting, Accurate Transmission, No Slip During Operation, Constant Transmission Ratio, Low Aluminum Alloy Density, but Relatively High Strength, Excellent Electrical Conductivity, Thermal Conductivity and Corrosion Resistance.
2.the Transmission Is Stable, It Has the Ability of Buffering and Vibration Reduction, Low Noise, Convenient Maintenance, Safe and Durable.
3.the Tightening Function Can Be Realized Only by Tightening the Screw. It Is Characterized by Easy Assembly, Can Be Fixed with Locking Screws, and Is Easy to Locate on the Shaft.

Application
It Is Widely Used in Various Types of Mechanical Transmission in Various Industries Such As Textiles, Machine Tools, Tobacco, Communication Cables, Light Industry, Chemical Industry, Metallurgy, Instrumentation, Food, Mining, Petroleum, Automobiles, CNC, 3D Printers, Etc.

We Also Have Other Models of Pulley and Gear Accessories, Welcome to Buy

Model Slot Width Total height Tooth Outer Diameter Capped Size Optional Bore Screw Size B L C F D E 5M-10T 16mm / 21mm 20mm / 25mm 17.78 18 5-7 2*M5 5M-12T 16mm / 21mm 20mm / 25mm 17.96 22 5-8 2*M5 5M-14T 16mm / 21mm 20mm / 25mm 21.14 25 5-10 2*M5 5M-15T 16mm / 21mm 20mm / 25mm 22.73 28 5-12 2*M5 5M-16T 16mm / 21mm 20mm / 25mm 24.32 29 5-12 2*M5 5M-17T 16mm / 21mm 20mm / 25mm 25.92 30 5-12 2*M5 5M-18T 16mm / 21mm 20mm / 25mm 27.5 32 5-14 2*M5 5M-19T 16mm / 21mm 20mm / 25mm 29.1 34 5-20 2*M5 5M-20T 16mm / 21mm 20mm / 25mm 30.69 35 5-22 2*M5 5M-22T 16mm / 21mm 20mm / 25mm 33.87 38 5-22 2*M5 5M-24T 16mm / 21mm 20mm / 25mm 37.06 42 5-22 2*M5 5M-25T 16mm / 21mm 20mm / 25mm 38.65 45 5-25 2*M5 5M-26T 16mm / 21mm 20mm / 25mm 40.24 45 5-25 2*M5 5M-28T 16mm / 21mm 20mm / 25mm 43.42 48 5-25 2*M5 5M-30T 16mm / 21mm 20mm / 25mm 46.6 52 5-25 2*M5 5M-32T 16mm / 21mm 20mm / 25mm 49.79 56 8-25 2*M5 5M-35T 16mm / 21mm 20mm / 25mm 54.56 62 8-25 2*M5 5M-36T 16mm / 21mm 20mm / 25mm 56.16 62 8-20 2*M5 5M-38T 16mm / 21mm 20mm / 25mm 59.33 65 8-25 2*M5 5M-40T 16mm / 21mm 20mm / 25mm 62.52 71 6-25 2*M5 5M-42T 16mm / 21mm 20mm / 25mm 65.7 74 8-25 2*M5 5M-44T 16mm / 21mm 20mm / 25mm 68.88 75 8-25 2*M5 5M-45T 16mm / 21mm 20mm / 25mm 70.48 77 8-25 2*M5 5M-46T 16mm / 21mm 20mm / 25mm 72.07 79 8-25 2*M5 5M-48T 16mm / 21mm 20mm / 25mm 75.25 81 8-25 2*M5 5M-50T 16mm / 21mm 20mm / 25mm 78.44 86 8-25 2*M5 5M-60T 16mm / 21mm 20mm / 25mm 94.35 102 8-25 2*M5 5M-65T 16mm / 21mm 20mm / 25mm 102.3 107 8-25 2*M5 5M-70T 16mm / 21mm 20mm / 25mm 110.27 117 8-25 2*M5 5M-72T 16mm / 21mm 20mm / 25mm 113.45 120 8-25 2*M5 5M-80T 16mm / 21mm 20mm / 25mm 126.18 132 8-25 2*M5 5M-90T 16mm / 21mm 20mm / 25mm 142.1 148 10-25 2*M5 5M-100T 16mm / 21mm 20mm / 25mm 158.01 164 12-20 2*M5
