Handheld Controller Programmer OEM Dealer Level for Curtis 1313-4331 1313-4401

Product Description

Model numbers (four access levels): 1313-4401 OEM programmer 1313-3301 Dealer programmer 1313-2201 Service programmer 1313-1101 User programmer

• Latest Upgrade 1313K-4401
• The 1313 handheld programmer is used to configure motor control systems. With the programmer, you can adjust and save parameter settings, monitor real-time data, and perform diagnostics and troubleshooting.
• The 1313 handheld programmer is a powerful and intuitive programming and diagnostic tool. It enables parameter files to be created and edited online or offline, transferred to another controller for cloning, or saved onto a PC or SD card.

FEATURES:

• Large high resolution color display shows multiple parameters simultaneously for quick adjustment.
• Backlight for easy viewing in low-light environments.
• Cloning feature and 64 Mb internal memory allows multiple parameter files to be stored in the Handheld Programmer making it easy to transfer settings to other vehicles.
• Advanced troubleshooting capabilities for all vehicles that use programmable motor controllers or control systems.
• AA Battery compartment allows programs to be edited without having to be connected to a system.M
• ultiple language support includes English, German, Spanish, French, and Italian.
• Monitoring function allows real-time viewing of controller activity.
• Icon based graphical user interface allows for quick and intuitive menu navigation.
• Dedicated buttons for “help” and “favorites” provide for direct access to commonly used features.
• Soft Keys (located under the LCD) change function as indicated by screen text to provide quick access to the most commonly used functions.
• Comprehensive help text offers solutions and information at the touch of a button.
• Easily upgradeable via USB to ensure compatibility with future products and features.
• The Model 1313 programmer is easily portable, with a tough rubber protective perimeter strip.
• Programming kit comes complete with handheld programmer, Molex cable, zippered case, quick start guide.

SPECIFICATIONS:

• Model: 1313-4401
• Access level: OEM programmer
• Operating ambient temp. range: -20°C to 50°C (-4°F to 122°F)
• Storage ambient temperature range: -40°C to 85°C (-40°F to 185°F)
• Package environmental rating: IP53 (with programmer cable plugged in and SD-card cover closed)
• Weight: 0.27 kg (0.6 lb)
• Dimensions (L×W×H): 190 × 100 × 36 mm (7.5\" × 3.9\" × 1.4\")
• Regulatory compliance: RoHS.

Package Included:

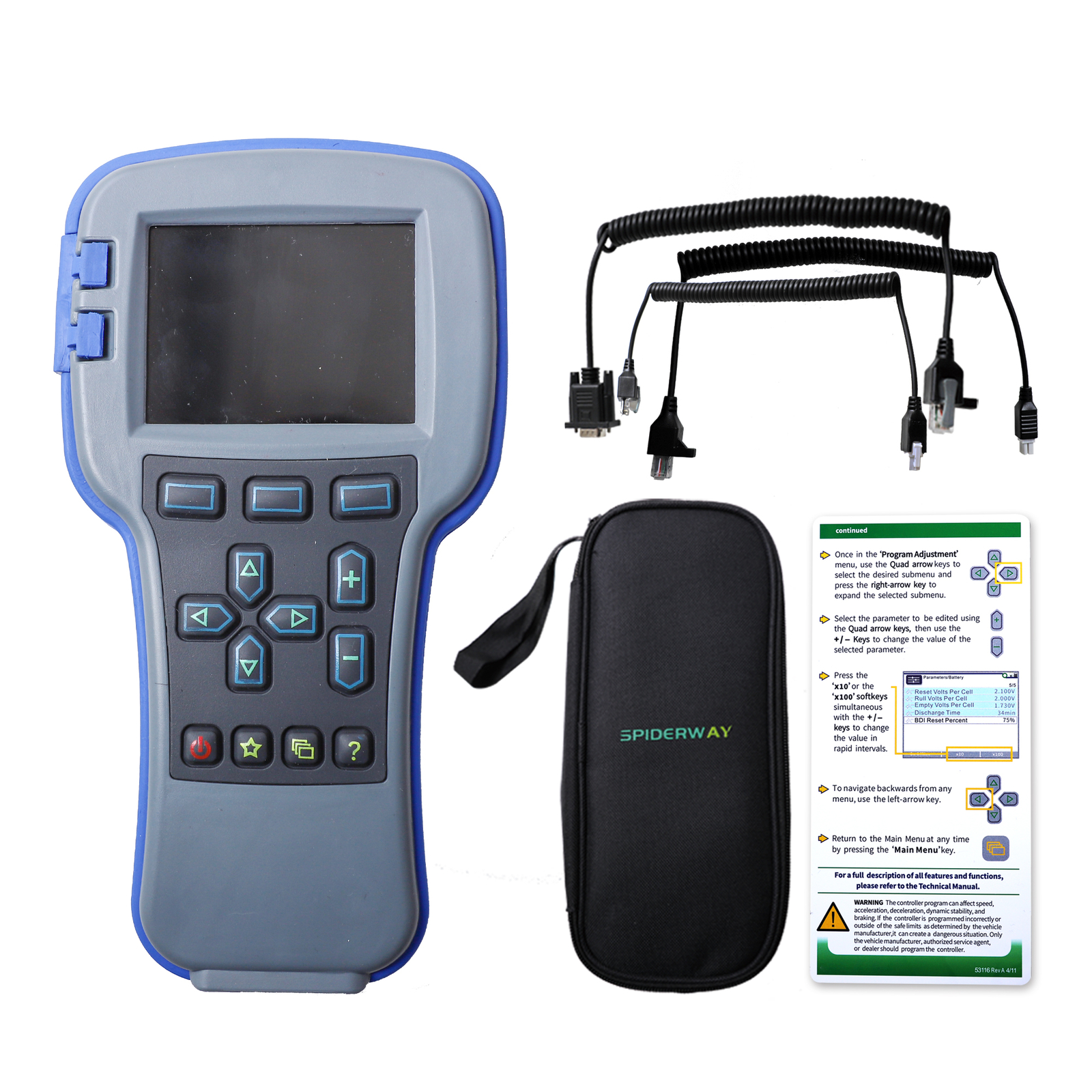

1 x handheld programmer 1 x 4-pin Molex cable 1 x DB-9 cable 1 x USB cable
1 x case 1 x quick start guide
