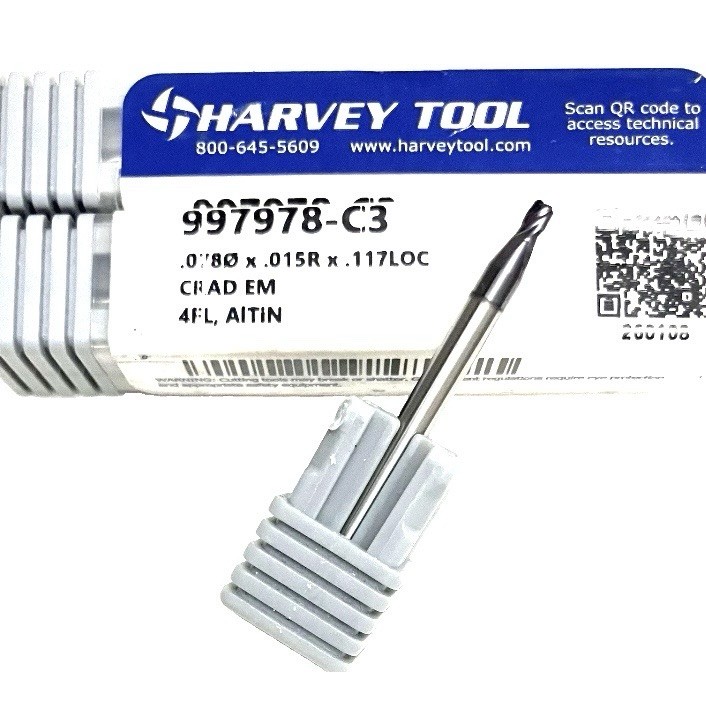

Harvey Tool 997978-C3
Corner Radius End Mill: 0.0780" Dia, 0.1170" LOC, 0.0150" Corner Radius, 4 Flute, Solid Caroffere
1-1/2" OAL, 30 deg Helix, AlTiN Finish, Single End, Centercutting, Miniature End Mills - Corner Radius - Stub & Standard, Miniature End Mills
Specifications:
Mill Diameter (Decimal Inch): 0.0780
Number Of Flutes: 4
Length of Cut (mm): 3.00
Single Or Double End: Single
End Mill Material: Solid Caroffere
Chipbreaker: No
Coating/Finish: AlTiN
Overall Length (Inch): 1-1/2
Centercutting: Yes
Flute Direction: Right Hand
Corner Radius (Decimal Inch): 0.0150
Variable Index: No
Helix Angle: 30.00
Cutting Direction: Right Hand
Coolant Through: No
Pitch: Normal
Overall Length (Decimal Inch): 1.5000
End Type: Corner Radius
Length Of Cut (Decimal Inch - 4 Decimals): 0.1180
Length Type: Short
Flute Type: Spiral
Extended Reach: No
Shank Type: Straight-Cylindrical
Material Removal Type: Roughing & Finishing
Shank Diameter (Decimal Inch): 0.1250
Shank Diameter (Inch): 1/8
Corner Radius Tolerance: 0.0010 to -0.0010 in
Mill Diameter Tolerance: 0.0005/-0.0005 in
Overall Length Tolerance: 0.0100/-0.0000 in
Series: Miniature End Mills - Corner Radius - Stub & Standard; Miniature End Mills
Country of Origin: UNITED STATES
