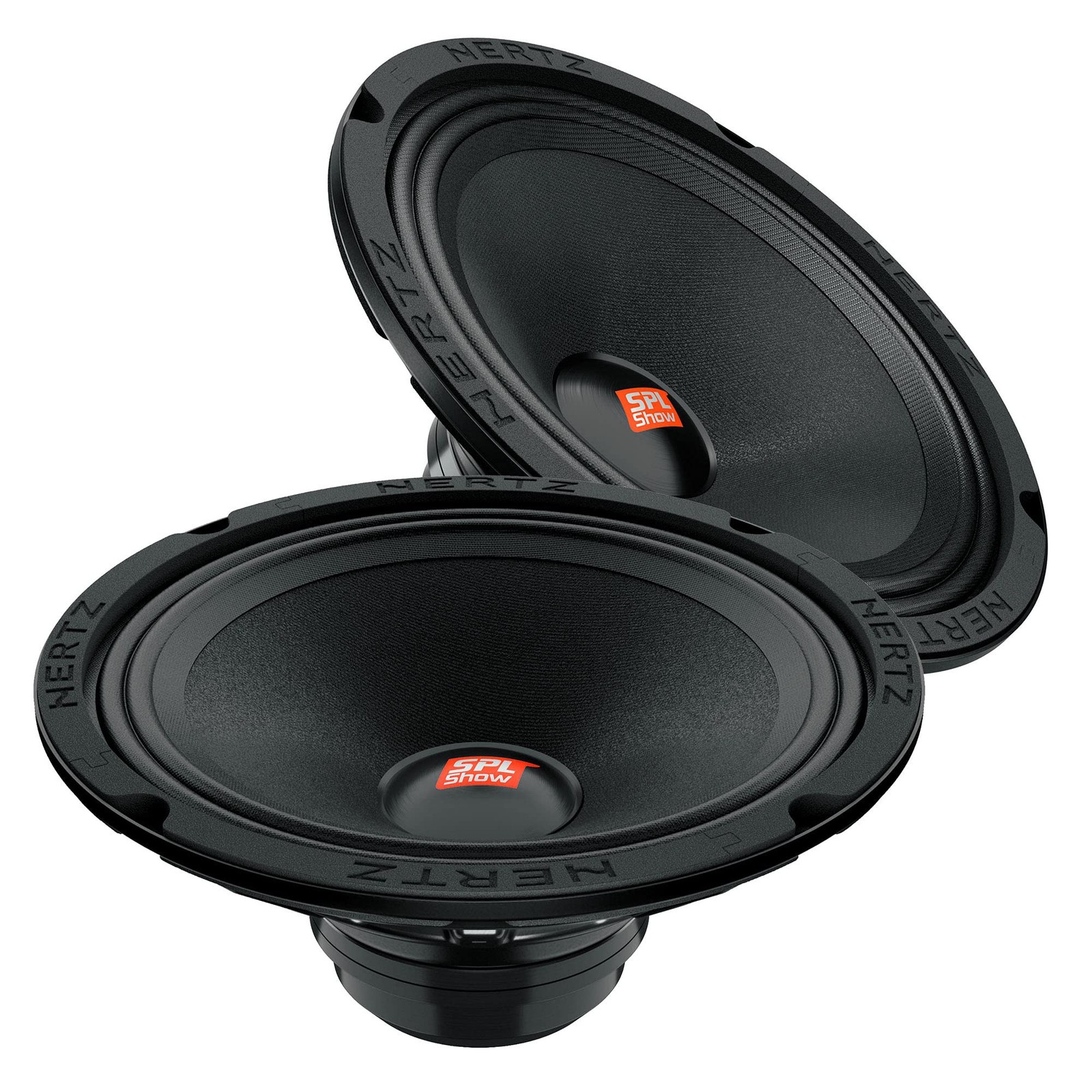

Hertz SPL Show SV 200 NEO 8" SPL Midrange Speakers (Pair) – 200W RMS For Sale

Hertz SV 200 NEO is an 8-inch (200mm) SPL midrange from the SPL Show line, designed for high-output midrange reproduction in systems where maximum efficiency and projection matter. It is a 4-ohm driver with a 38.6mm (1.5") voice coil and a specified 100 Hz – 8 kHz operating range.

The SV 200 NEO uses a neodymium motor (N38 H) to keep mass and footprint down while maintaining high output capability. Hertz also specifies water-repellent, UV-treated pressed paper cone materials and corrosion-mitigation details (cataphoresis coating and insulated lead-wires) for more reliable outdoor / exposed installs. Terminals and mounting holes are stated as Harley-Davidson compatible.

• 8" (200mm) SPL midrange driver for high-output midrange bands
• Neodymium motor (N38 H) for compact size and reduced weight
• Water-repellent, UV-treated pressed paper cone for outdoor-safe use
• Cataphoresis-painted motor and insulated lead-wires to help prevent oxidation
• Harley-Davidson compatible mounting holes and terminal layout (per Hertz)

• Continuous (RMS): 200W
• Peak: 500W

• High-SPL midrange sections in multi-way SPL builds
• Powersports / motorcycle audio systems requiring compact, weather-conscious construction
• High-output door, fairing, or custom enclosure midrange applications

• Brand: Hertz
• Series: SPL Show
• Model: SV 200 NEO
• Component Type: SPL Midrange
• Size: 200 mm (8")
• Impedance: 4 Ohm
• Voice Coil Diameter: 38.6 mm (1.5")
• Frequency Response: 100 Hz – 8 kHz
• Sensitivity (SPL): 100 dB
• Magnet: Neodymium
• Cone: Water repellent pressed paper
• Magnet Size (D x d x h): 80 x 50 x 6 mm (3.15 x 1.97 x 0.24")
• Weight (each): 1.2 kg (2.65 lb)
• Electro-acoustic: Re 3.2Ω, Fs 103 Hz, Le 0.06 mH, Vas 8.1 L, Mms 19.9 g, Cms 0.12 mm/N, BL 8.8 T·m, Qts 0.52, Qes 0.55, Qms 7.4
• Physical (from Hertz diagram): A 208 mm (8.19"), B 182.7 mm (7.19"), C 96.2 mm (3.79"), D 83.8 mm (3.3")

• (2) Hertz SV 200 NEO 8" SPL midrange speakers
