Hoke Gyrolok®

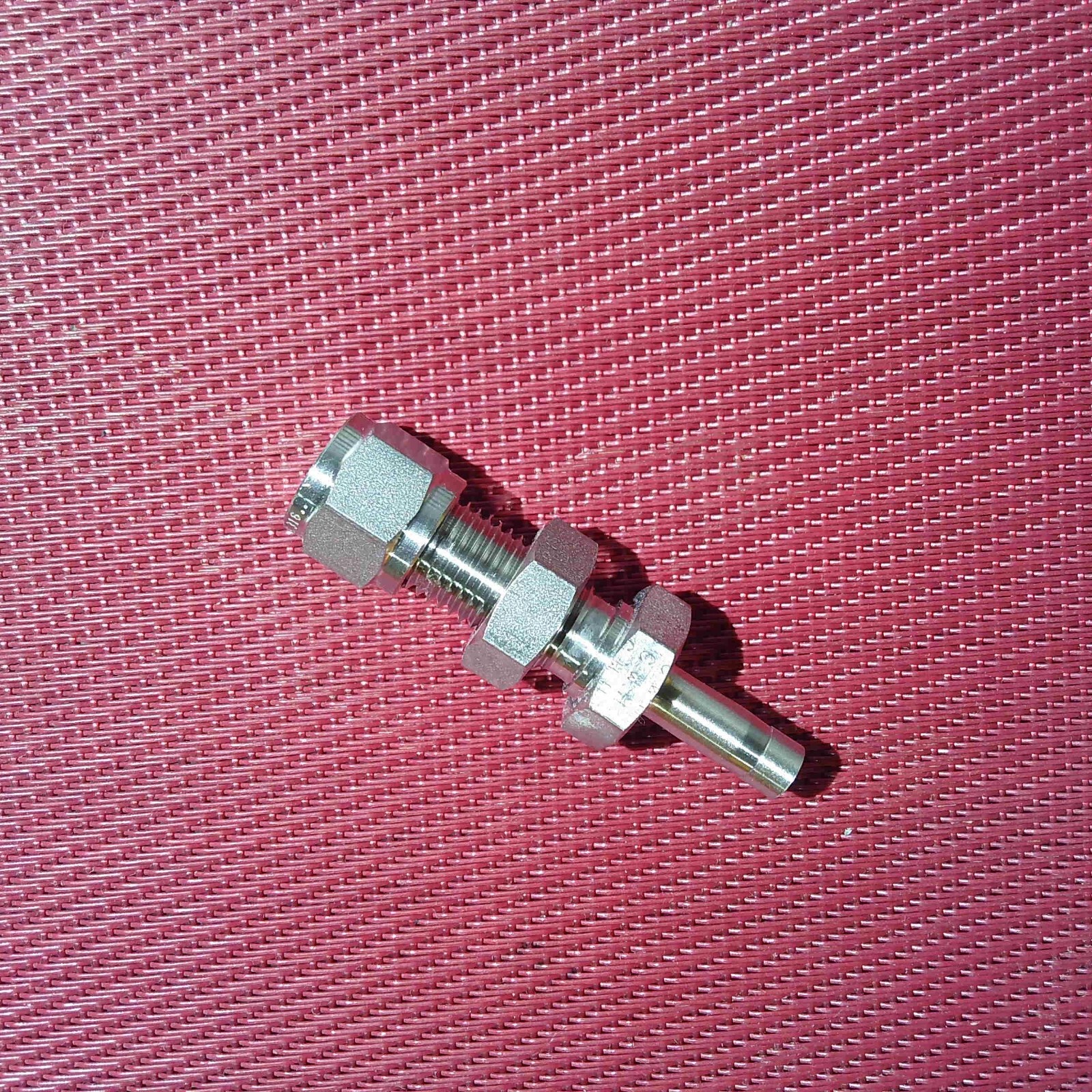

1/4\" Tube OD x 1/4\" OD Bulkhead Tube Adapter
316 Stainless Steel Instrument Grade
Part / Ref. SS-400-R1-4
This fitting is interchangeable with other major manufactures of the dual ferrule system such as Swagelok, Parker A-Lok, Hoke Gyrolok, Bi-Lok, Brennan, DK-Lok, Ham-Let, HY-Lok, SSP, Superlok, and Tylok. It is even interchangeable with single ferrule fittings such as Parker CPI, Tylok CS-Lok, SSP Unilok, and Ham-Let One-Lok. DO NOT INTER-MIX FRONT & BACK FERRULES. Ferrules should be considered one component. For example, do not inter-mix a Hoke front ferrule with a Swagelok back ferrule as manufactures make different variations.
Selection of the proper size can be found by measuring the outside diameter of your tubing with suggested tolerances not to exceed ±0.003\" (1/16\" to 1/8\") and ±0.005\" (3/16\" to 1\") and can be installed on all non-flared metal tubing such as steel, stainless steel, copper, aluminum, and non-metal tubing such as polyethylene, polypropylene, nylon, PFA, TFE and soft PVC. The tube end threads are 20 per inch and not compatible with plumbing fittings found in your home or local hardware store.
The parts are manufactured to exacting specifications of ASME (American Society of Mechanical Engineers, ASTM (American Society for Testing Materials) & ANSI (American National Standards Institute) from an ISO 9001 certified facility to insure safety and reliability of service whenever the brands are intermixed.
Need more? Different size? Click here for the theDoDadman\'s store. Using the outside diameter of the tube size needed, locate the correct parameter below and input this into the store\'s search engine. This will return both Tube & Tube x NPT stainless steel instrumentation fittings at the lowest price anywhere.
Tube Parameter Tube Parameter 1/16\" SS-1003/8\" SS-6001/8\" SS-2001/2\" SS-8103/16\" SS-3005/8\" SS-10101/4\" SS-4003/4\" SS-12105/16\" SS-5001/0\" Type/ShapeBulkhead Tube Adapter Connection 11/4\" Tube OD Compression (dbl ferrule) Connection 21/4\" OD Bulkhead Tube Adapter/Stub Max. PSIG10,300 (w/ 0.049 Seamless Wall 1/4\" 316SS Tubing)Material316 Stainless SteelTemp. Range-325° to 1200°FIndustry Stds.Meets/Exceeds ANSI/ASME B1.20.1 | SAE AS71051 (fmr. MIL-P-7105B) | ISO 9001Material Stds.ASTM A-276/ASME SA-479 Bar Stock | ASTM A-182/ASME SA-182 Forgings
