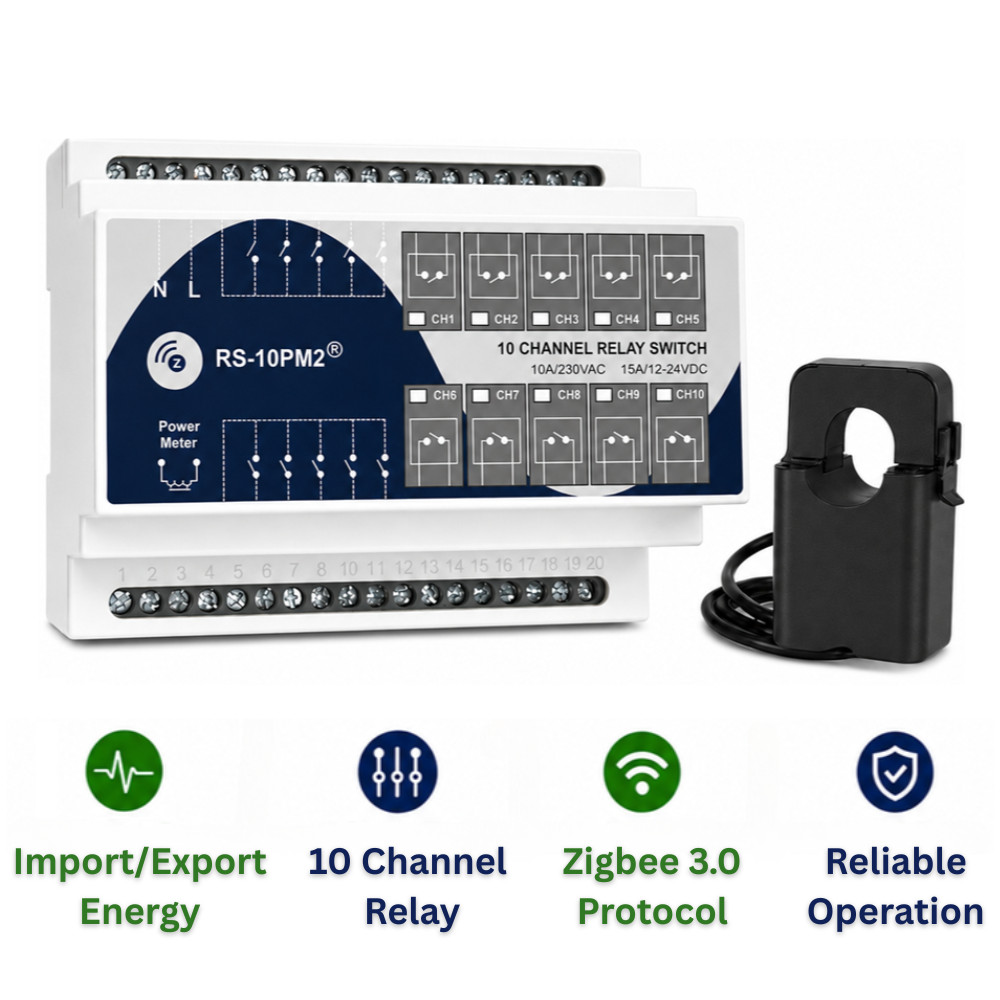

Home Assistant - Zigbee 10x Relay and Import/Export KWh Energy Meter For Sale

Zigbee controlled, 10 Channel Relay and Two-way Energy Meter module, designed for DIN rail mounting and reliable control of AC and/or DC loads. The device provides 10 independent relay outputs with local switch inputs, Zigbee remote control, and integrated electrical measurement with import/export energy monitoring. Suitable for Solar and Renewable energy installations. Compatible with Home Assistant, ZHA, Zigbee2MQTT and other Zigbee Home Automation gateways and platforms.Features:

• 10 independent Relay outputs.
• Capable of controlling AC and/or DC loads.
• Flexible power supply: 110–240VAC, 50/60Hz.
• Maximum AC output: 10A / 110–230V resistive load.
• Maximum DC output: 12A / relay outputs for improved safety, noise immunity and protection of the control electronics when switching loads.
• 16A rated PCB power tracks and terminals.
• Front panel LED indication of active outputs.
• ABS enclosure for standard DIN rail mounting.
• Zigbee 3.0 communication.
• Remote control of all outputs via Zigbee network.
• Local control by momentary (push) buttons or wall switches.
• User-configurable Power Up Memory function.
• User-configurable Switch type: push button, toggle switch or follower switch.
• User-configurable Auto-off timer.
• Integrated power meter with 60A CT (current clamp) included. Option to order with 75A, 100A or 240A CT.
• Measures energy flow and direction, power, voltage, current and power factor.
• Two-way metering for import and export KWh energy. Suitable for Solar installations and renewable sources.
• Reports electrical data to the Zigbee controller: Voltage, Frequency, Current, Instant Power, PF, Import and Export Energy.
• Local Web UI for configuration of User Parameters on Each Relay Channel and Meter reporting interval.
• DIN rail installation with compact industrial enclosure.
• Conforms to EU regulations: EN55022, EN61000-6.
• Radio protocol: Zigbee 3.0, 2.4GHz.
• Antenna range: up to 50m outdoor / 30m indoor, depending on installation conditions.
• Works with standard Zigbee coordinators and gateways supporting Zigbee relay/light and electrical measurement devices.
