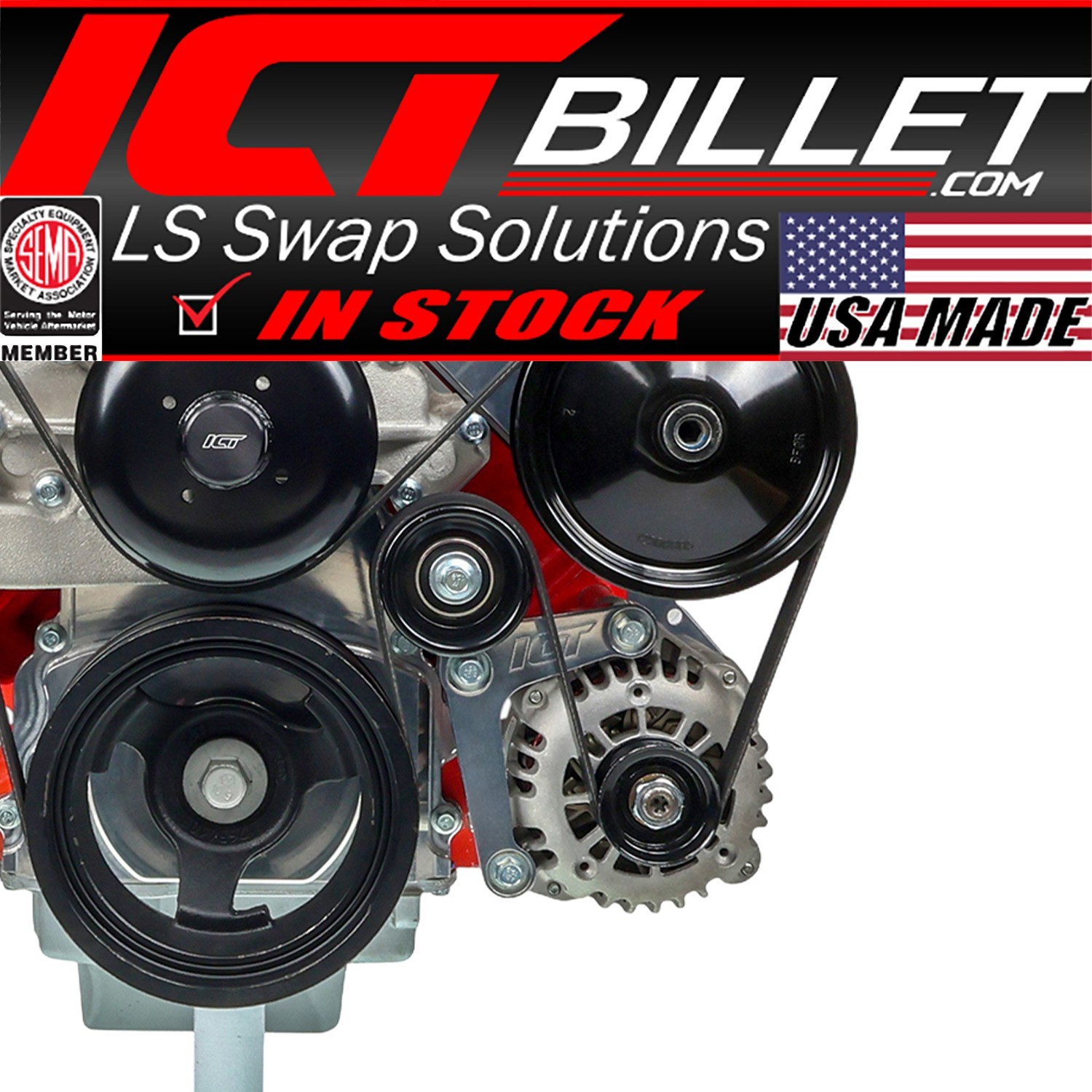

ICT Billet LS Truck - Billet Low Mount Alternator Bracket Kit w/ Pulley
At ICT Billet, quality is our standard.
We ship same day!.
Customer Service316, eight hundred, 6959
Item DescriptionProp 65 Warning!This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
LS Truck Billet Alternator BracketCompatible with: truck/SUV (or LS3/L99 Camaro) crank pulley (ICT# BAL300)- *Without power steering, a ribbed idler (not included) will be needed. (551528)
- **Alternator: (ICT# ALT300)(will not fit Corvette/CTSV or 2010 up Camaro large bolt pattern alternators), will fit any other LS powered vehicle alternators with any amperage. 145+ amp alternators do not have the provision for the rear bracket.
- When using an iron block, we recommend using our front support bracket to add the 3rd mounting point for the alternator bracket SKU 551921-LS01.
- If needing to extend your alternator harness connection, use ICT# WEALT30-36 (4-pin) or WEALT40-36 (2-pin)
- Made in Wichita, Kansas from aerospace grade, USA produced, billet aluminum
- Includes: front & rear bracket, idler pulley, and mounting hardware
- Belt Length (550K6)
*May require slight grinding on block (see photos) if using a 105 amp alternator (145/160 amp alternators are a direct fit)
**This can only be uséd on blocks with at least 2 mounting holes on the front of the block. Blocks that only have 1 mounting hole will require drill template 551445 to drill and tap the 2nd M10-1.5mm hole. This hole is in a non-critical part of the block that is away from the cylinder, oil, and water jackets. This bracket only bolts to the front face of the engine block.
This will require a 790K6 (79.0 inch) belt when uséd with the 551785-3 power steering pump bracket and 105 amp alternator (ICT# ALT300)
If using as an alternator only bracket you will use the ribbed pulley part number 551528 and a 550K6 (55 inch) belt
PRODUCT SPECS
Brand: ICT Billet
Type: Bracket
Interchange Part Number: 1234 ICT Billet Swap
OE/OEM Part Number: 551668-3
Manufacturer Part Number: 551668-3
Manufacturer: ICT Billet
Item model number: 551668-3
Country/Region of Manufacture: United States
Product Dimensions: 17 x 6 x 0.5 inches
Exterior: Metallic Finish
Item Weight: 2.25 pounds
California Prop 65 Warning: WARNING - This product can expose you to chemicals including lead, which is known to the State of California to cause cancer, birth defects, or other reproductive harm. For more information go to www.P65Warnings.ca.gov
