Intellivision Composite AV Board with RCA Outputs and 3D Printed Back Panel (Model 2)
This listing is for a composite AV board with RCA outputs and a custom 3D printed back panel designed specifically for the Intellivision Model 2.
A separate version is also available for Model 1 systems using a different back panel. Please see my other listings for that option.
⚠️ Please Note
The Intellivision console is NOT included.
3D Printed Back Panel
This back panel is printed using PLA filament at standard print speed to help reduce imperfections.
Available colors include:
- Red
- Black
- Silver
- Beige (default color, chosen to resemble the original console finish)
This back panel was designed by me and is not available elsewhere. I include it with this kit at no additional cost to help simplify installation.
The design is intended as a no cut / no drill solution, but please note that careful alignment is required when installing RCA jacks and wiring.
Take your time during installation for best results.
Installation Information
Installation instructions will be provided after purchase.
The board is fully assembled as shown in the listing photos.
It includes built-in double-sided tape for secure mounting inside the console.
This setup works alongside the original RF output hardware, so no internal RF components need to be removed.

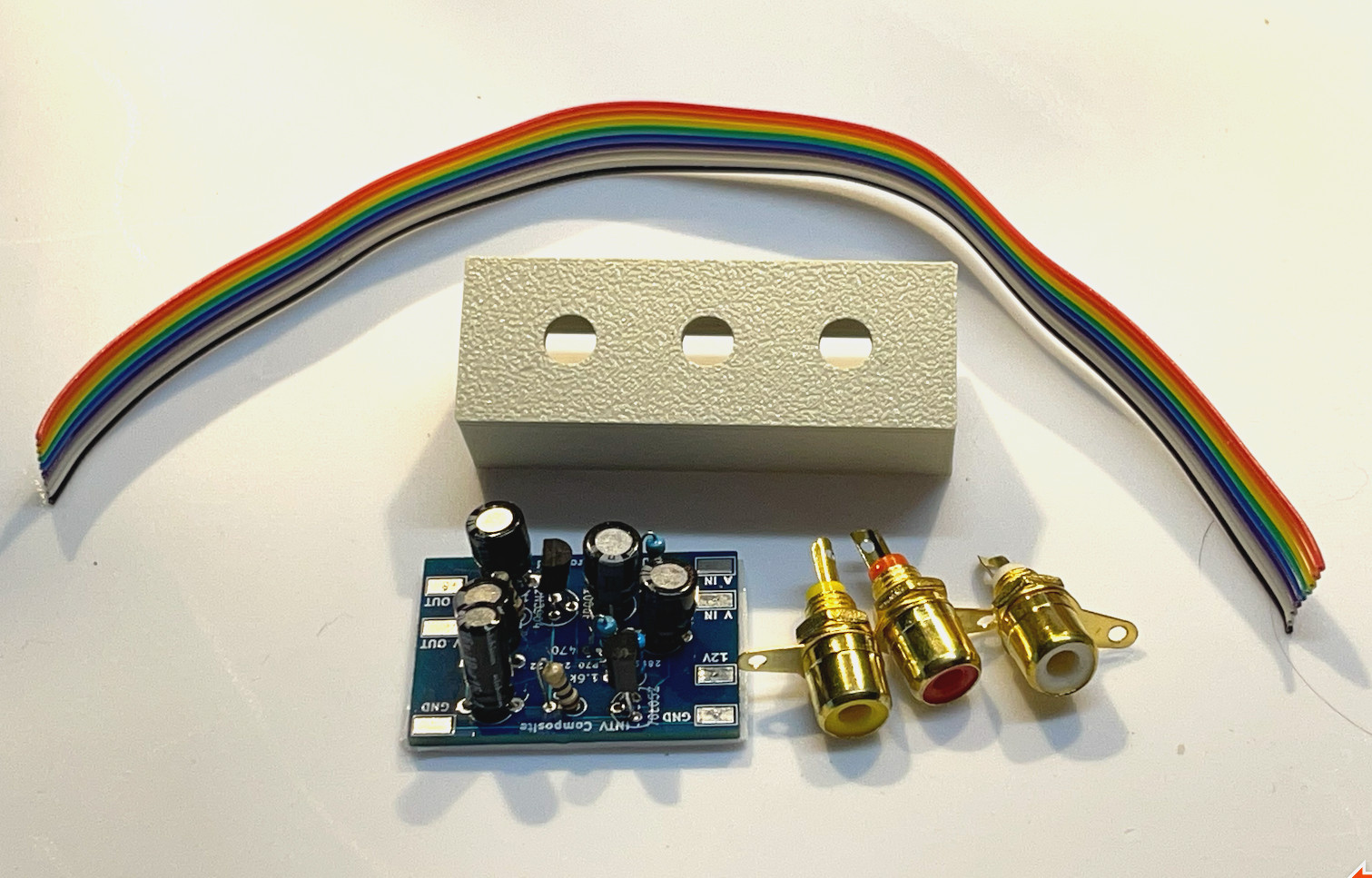

Included Items
- 1 fully assembled composite AV board (as pictured)
- 1 custom 3D printed back panel
- Wiring for installation
- 3 gold-plated RCA connectors (video + dual mono audio)
- Step-by-step instructions (sent via email)
Installation Support
If you are not comfortable installing this yourself, I also offer a professional installation service where I can complete the work for you. Please check my other listings for details.
Required Tools (NOT INCLUDED)
- #2 Phillips screwdriver
- Small Phillips screwdriver
- Small flat-head screwdriver
- Needle-nose pliers
- Soldering iron (fine tip recommended)
- Solder sucker or solder wick
- Solder
- Intellivision console
- Small file (may be needed)
- Patience and careful handling
⚠️ This type of installation should only be attempted by individuals with proper soldering experience and tools. No warranty is expressed or implied.
Additional Retro Services
- LED lighting upgrades for classic consoles
- NES blinking light repair
- RGB video upgrades for PC Engine / TurboGrafx / N64 / SNES Mini / NES (with NESRGB board purchase)
- Region switch services
- Sega Genesis S-Video upgrades and repairs
- And more
Important Notice
As a small business, I import most parts used in these projects. Due to recent tariff changes and increased import costs, pricing has been adjusted accordingly. Thank you for your understanding.
🇺🇸 Assembled in the USA
Please feel free to contact me with any questions.
